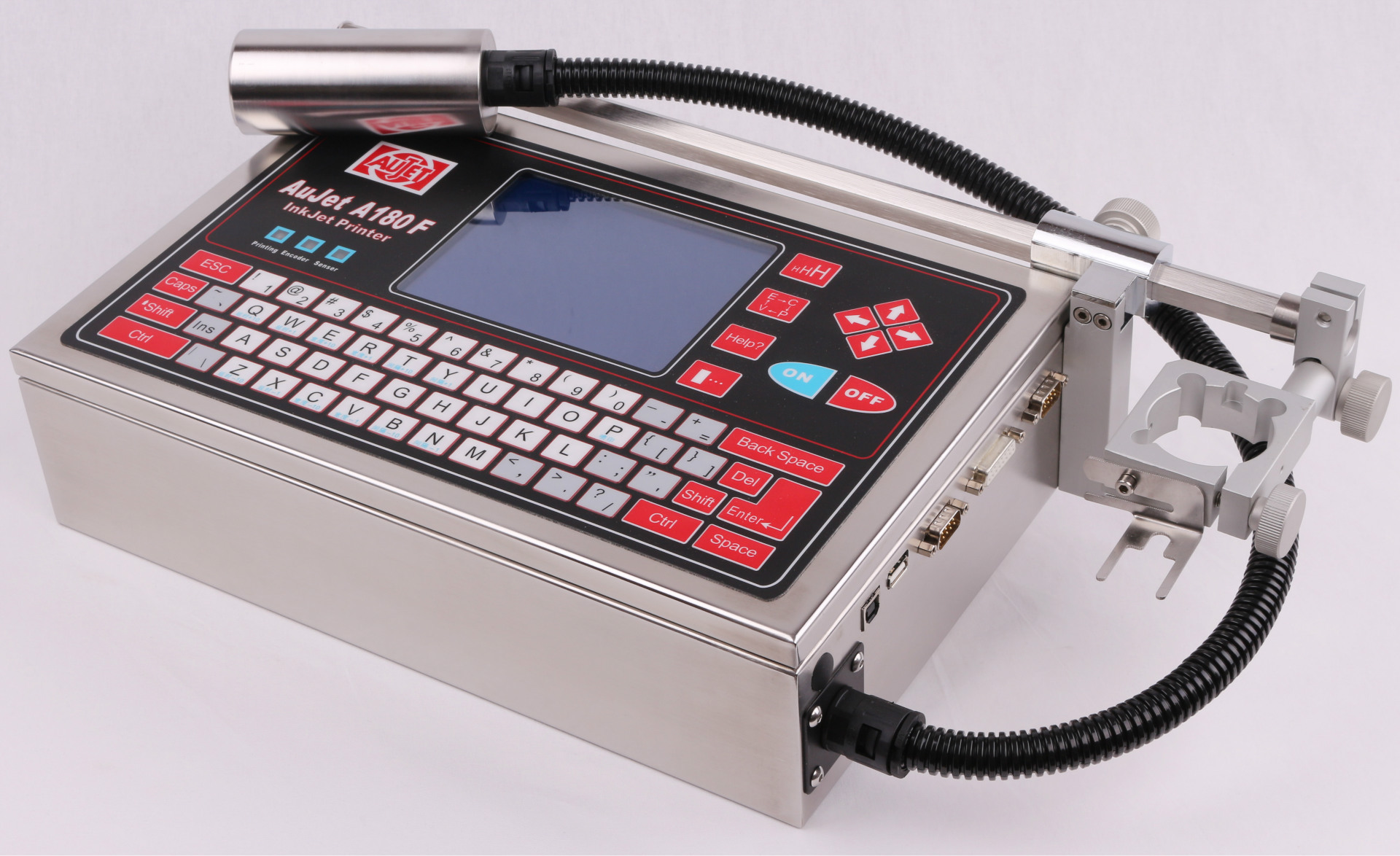

Automatic date code inkjet printer

• It’s installed with National library, Grade 1 & Grade 2 (over 6000 characters), PinYin Input method.
• The mainframe is equipped with 4 fonts library ( SongTi, HeiTi, KongxinTi, Dot Matrix   font). When editting, these 4 fonts can be mixed for layout at the same time. If other fonts are needed, it can be transfered via computer.

• The editting interface of the mainframe can be switched from Chinese to English, or from English to Chinese at any time, which makes it to meet requirements in overseas market.
• The 4-lines printer can print 1-15 lines of English and numbers or 1-8 lines of Chinese characters,Can print large or small characters,One printer can perform Two functions!Two in one!
• Status display: indicator light of sensor, encoder and printing indicator lamp
• Forced ink jet function, no blocking of spray heads during long period of no usage
• The user can input symbols and texts of any length, which is not limited by the ratio of length & width and length requriement.
• This printer can be used independently without computer connection, User friendly design and easy to operation.
• There is USB interface and can be connected with computer to transfer symbols and logo
• one recognizer one ink cartridge, when changing the ink cartridge, meanwhile need changing recognizer.

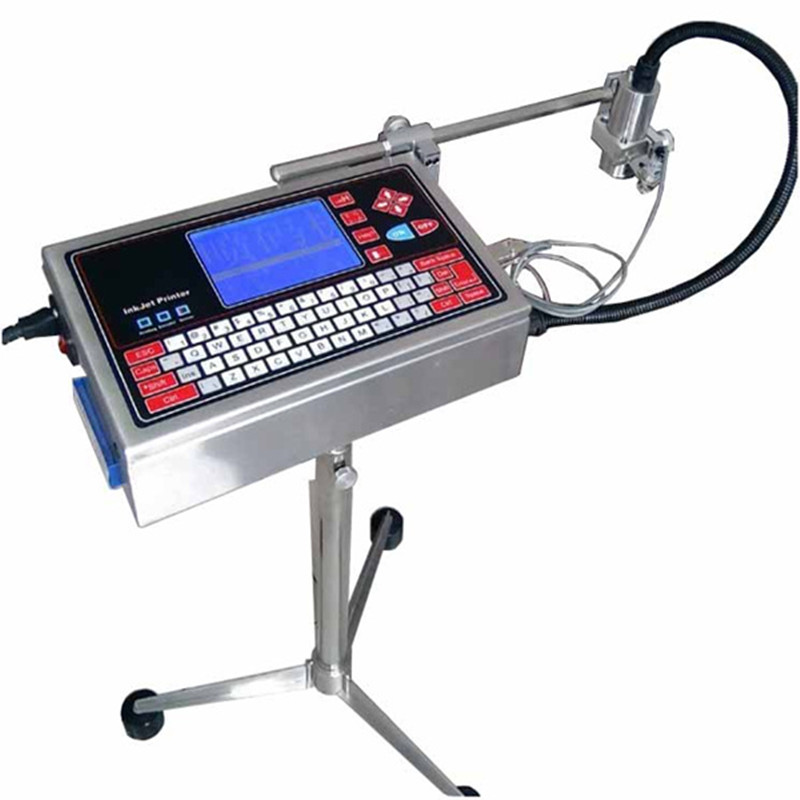

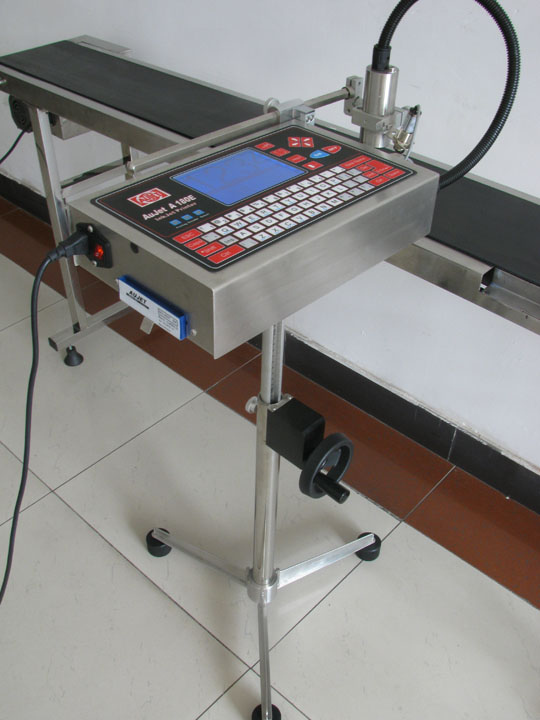

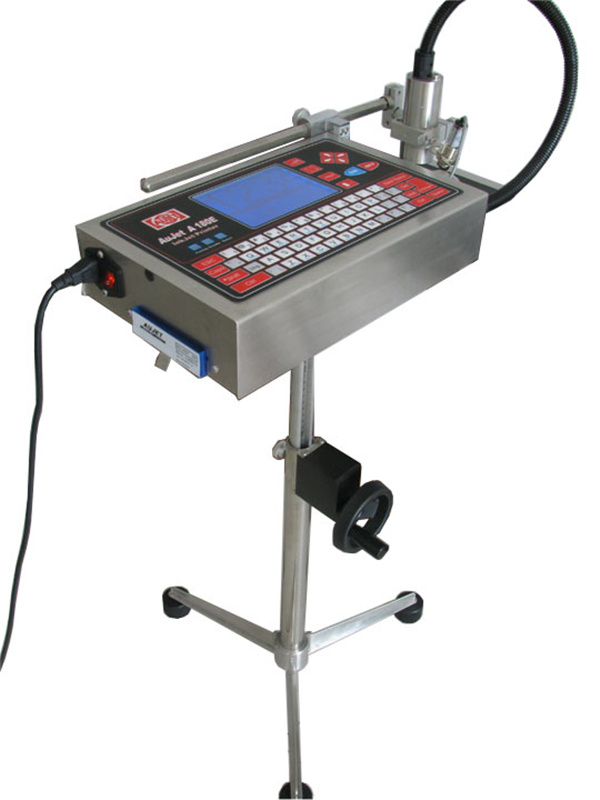

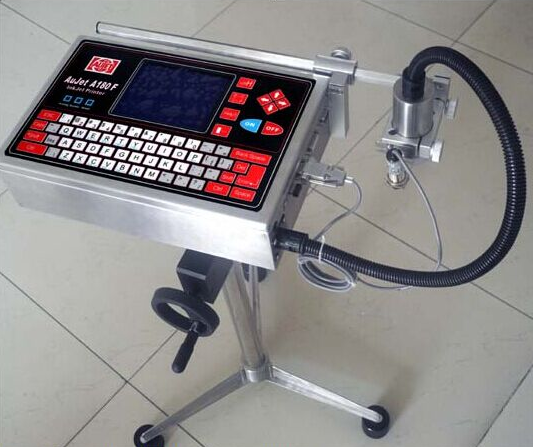

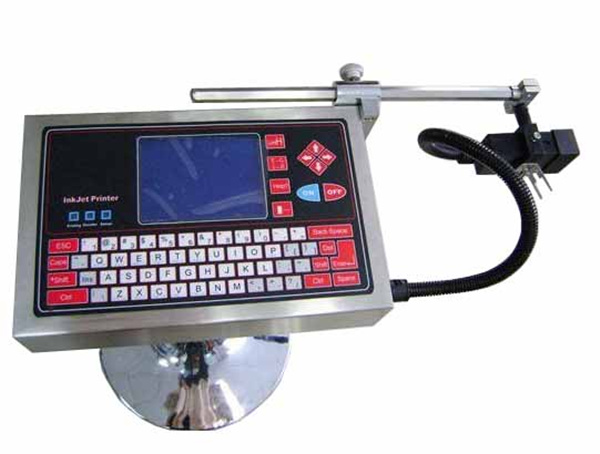

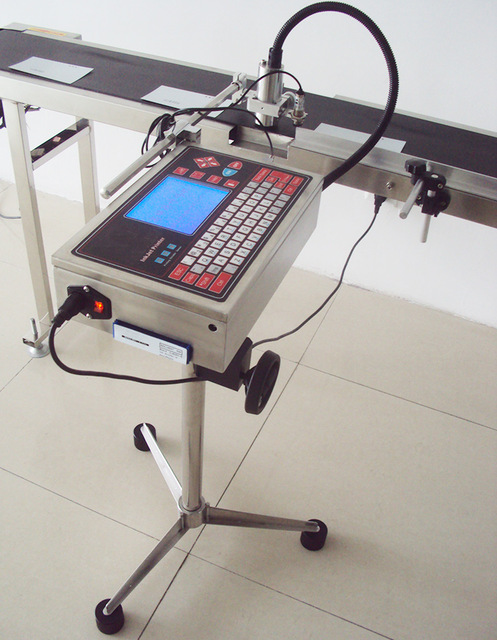

General Ink Jet Printer (Clicking for more Prictures)

Technical Data

1. Printing Resolution DPI： 200  DPI
2. Printing Fonts：High-definition printing font (Print Font).
3. It’s installed with National Chinese library, Grade 1 & Grade 2 (over 6000 characters).The mainframe is equipped with 4 fonts library ( SongTi, HeiTi, KongxinTi, Dot Matrix font). When editting, these 4 fonts can be mixed for layout at the same time. If other fonts are needed, it can be transfered via computer.
4. Printing Symbols: It can print various trademarks, logos,graphics, texts, numbers, and special signs,that are not limited by the ratio of length & width and length requriement.
5. Height of Character：Print height range is 1mm～18mm（1,2,3,4,5,6,7,8,10,12,15,18mm）

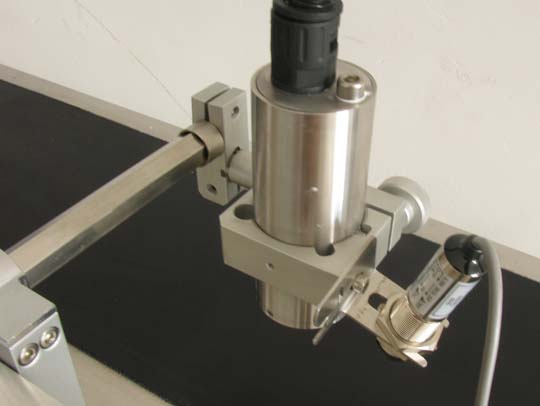

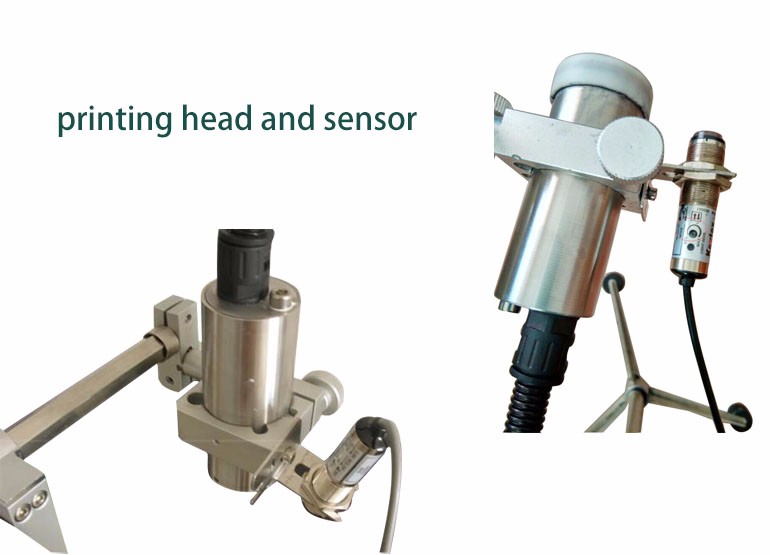

6. Printing Distance: The distance between the spray head and printing objects should be 5-10mm
7. Automatic Printing: Date, time, lot No, Shift No, Sequence No. etc.
8. Message Memory： Save up to 100 messages and 100 symbols
9. Texts Length：Max. 200 characters per message
10. Sequence No: 1-9 variable numbers
11. Printing Speed: Maximum 35 meters /minute and the speed isn’t influenced when printing more lines.
12. Colors of Ink Cartridges：Black, Red, White ,Blue
13. Printing Direction: Sprayhead can be rotated 180° to forward, reverse, vertical downward.
14. Printing material: Metal, plastic, wood, aluminum film, carton or building material surface ect.

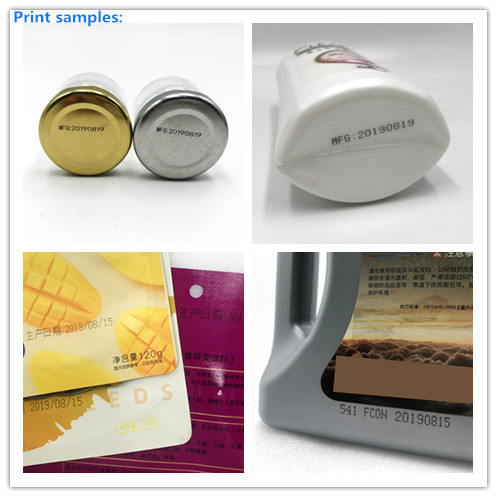

15. Applicable products：Display screen of mobile phone, drink lids, food package bags, medicine package, steel-plastic door & window, aluminum alloy, battery, plastic tube, steel plate, PCB, chip, woven bag, egg, brake, housing for mobile phone, carton etc.
16. Ink Cartridge：Solvant based environmentally friendly ink cartridge or oil based ink cartridge.No need to use gas source or dilution.
17. Main Interface：USB, encoder,sensor, cables
18. Packaging size： 58x28x44cm ；G.W: 14KG
19. Adjustable standard for mainframe Can be adjusted 50-75 CM up or down. Can lean forward or backward slightly
20. Auto voltage selection：AC 110- 240V
21. Energy Consumption：Average lower than 100W
22. Operation Temperature：1℃-37℃；Humidity 30% - 70%
23. Status display: printing indicator lamp, encoder and indicator light of sensor
