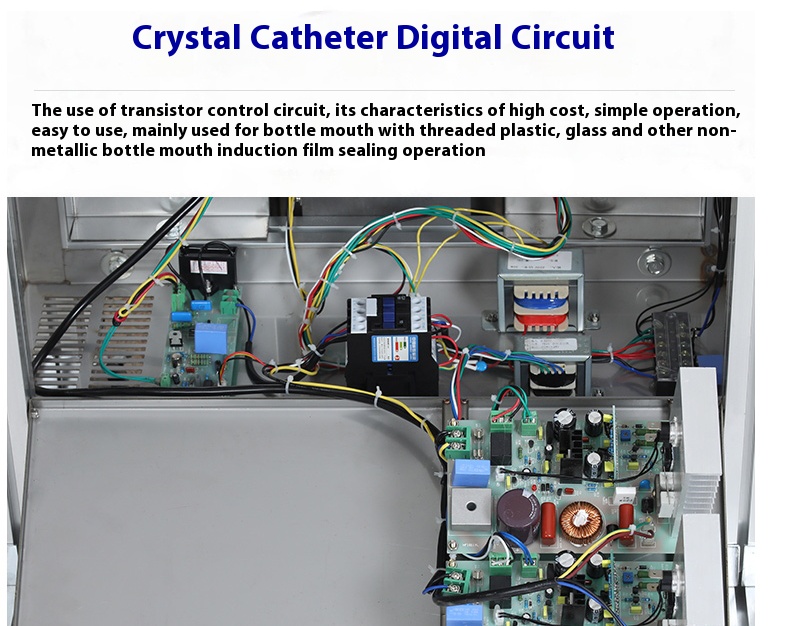

The LGYF-2000 air-cooled floor-standing induction sealer is specifically designed for the food, pharmaceutical, and personal care industries, and is suitable for sealing aluminum foil on screw-top plastic and glass bottles. The machine features transistor-based digital circuit control for easy operation. It accommodates bottle caps with diameters ranging from 20 to 130 mm and bottle heights from 40 to 400 mm, with a maximum output of 12 bottles per minute, meeting the continuous production demands of medium to large-scale operations. Its air-cooling system ensures stable, long-term operation, making it widely used in the beverage, health supplement, and cosmetics industries. It is a reliable choice for enhancing packaging efficiency and seal quality.
High quality LGYF-2000 Air-Cooled Floor type induction sealing machine
Product description

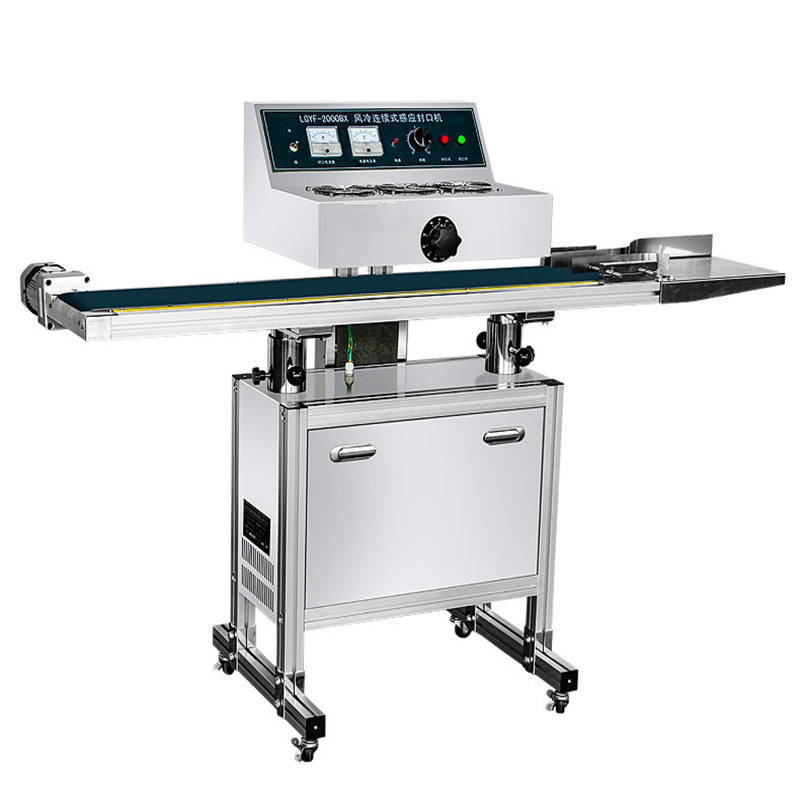

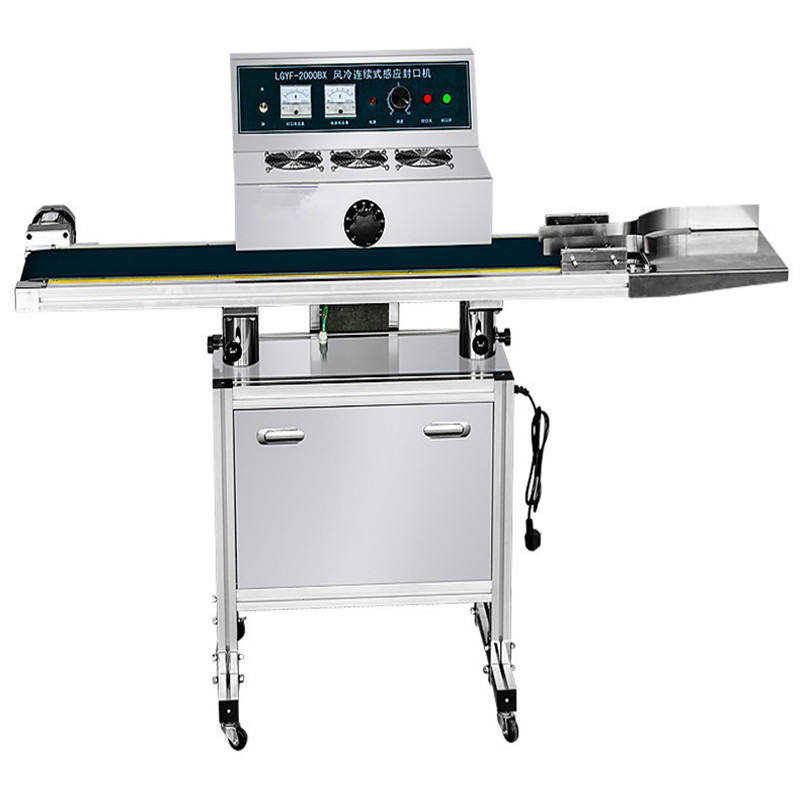

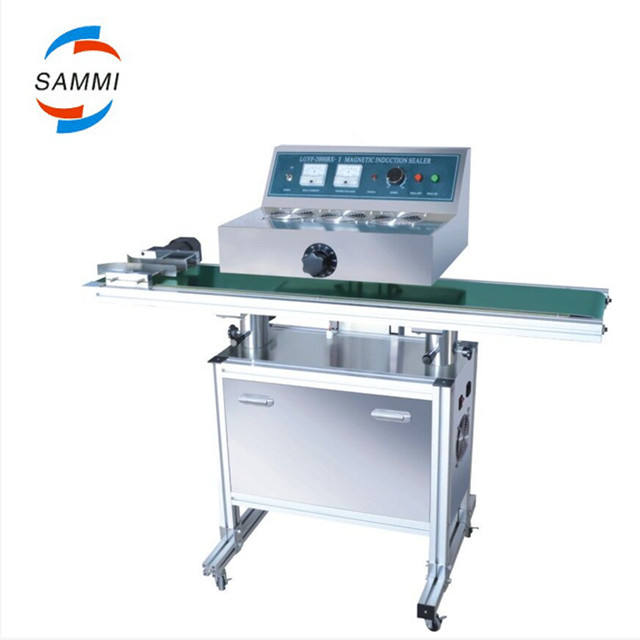

This is an LGYF-2000 fully automatic air-cooled electromagnetic induction sealer, specifically designed for the food, pharmaceutical, and personal care industries. It is suitable for aluminum foil sealing of plastic and glass bottles with screw threads. The machine is controlled by a transistor-based digital circuit, ensuring simple operation and stable performance. It achieves a maximum output of 12 bottles per minute and accommodates bottle caps with diameters ranging from 20 to 130 mm and bottle heights from 40 to 400 mm, meeting the continuous production needs of medium to large-scale operations.

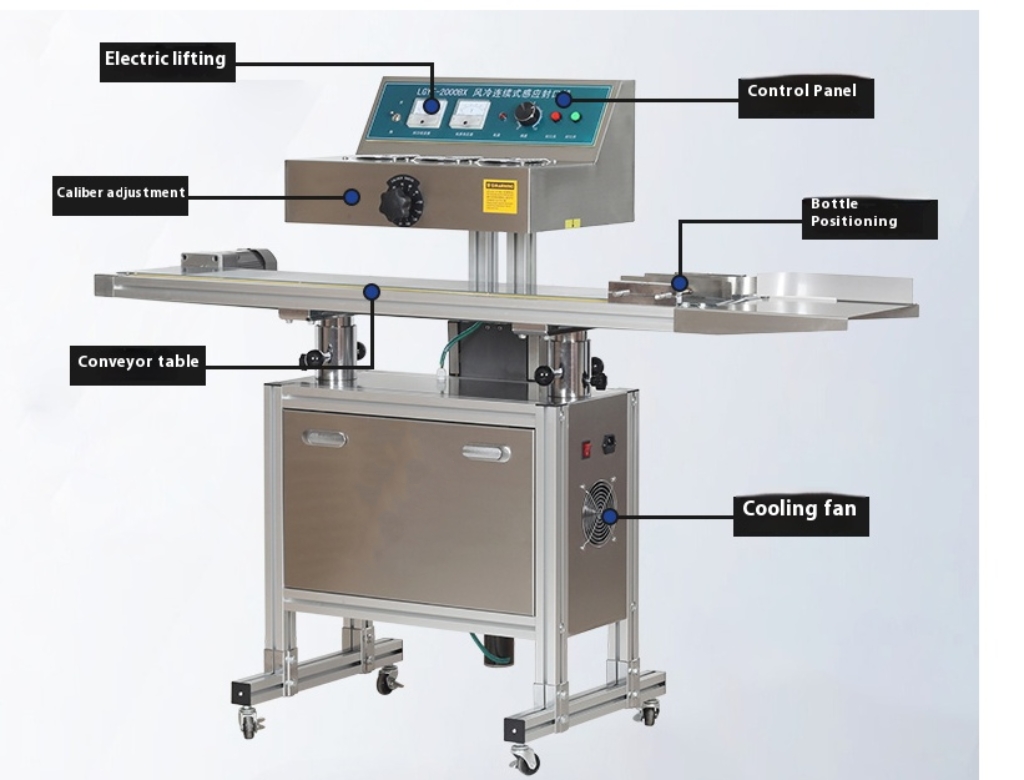

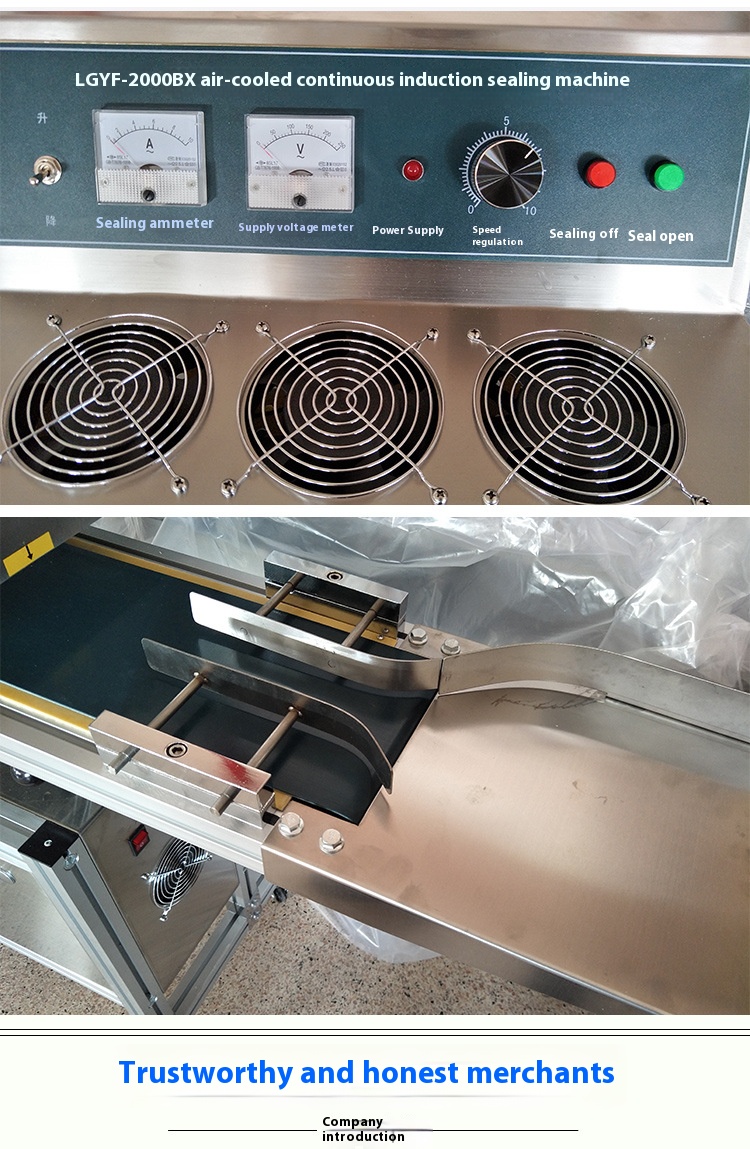

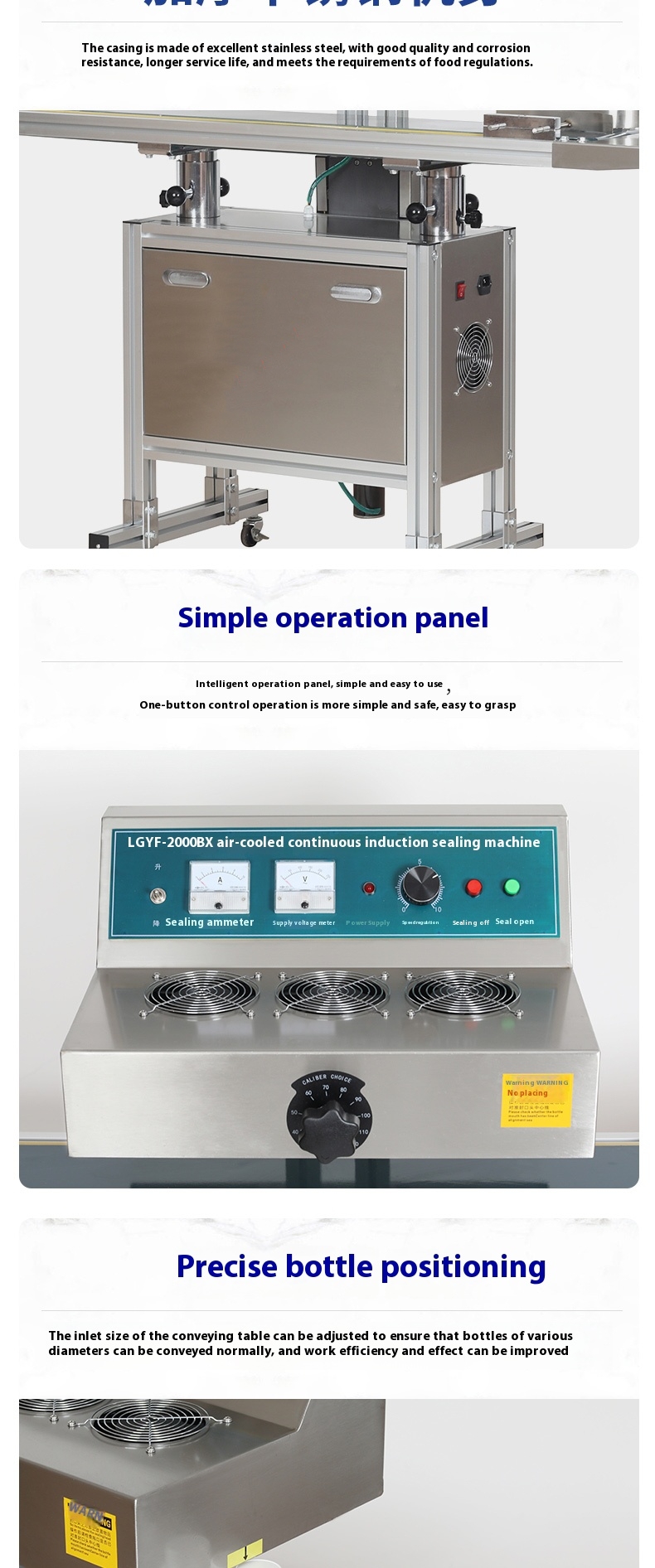

Equipped with an air-cooling system, the machine maintains consistent performance during prolonged, high-load operation. Casters mounted on the base facilitate flexible movement and deployment. Its core advantage lies in its superior sealing performance, effectively preventing oxidation or leakage of contents. It is widely used for packaging products with high sealing requirements, such as beverages, health supplements, cosmetics, and condiments. The machine features a compact design, with a control panel integrating a touchscreen and physical buttons that support parameter presetting and real-time monitoring, thereby enhancing production efficiency and consistency.
Application

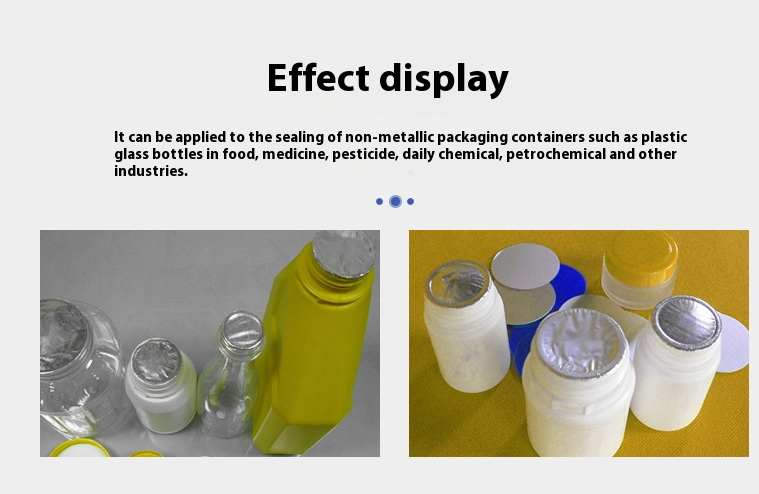

Suitable for sealing flat round screw cap on glass bottles or plastic bottles. This induction sealing machine is not suitable for metal containers, cover without screw. And the cap dia. is between 20mm and 50mm. It's suitable for the big production factory.
Specification
Model LGYF-1500B LGYF-2000B
Voltage AC 220V±10% 50HZ
Power 1500 W 1800W
Current work ≤8 ( A ) ≤9 ( A )
Work Type continuous conveying
Cooling Way forced cooling fan
Type Floor
Machine body material stainless steel + aluminum
Sealing diameter Φ20~Φ50 ( mm) Φ50~Φ130 ( mm)
Bottle height 40~400 ( mm ) 40~400 ( mm )
Sealing speed 0~10 ( m/min) 0~12 ( m/min)

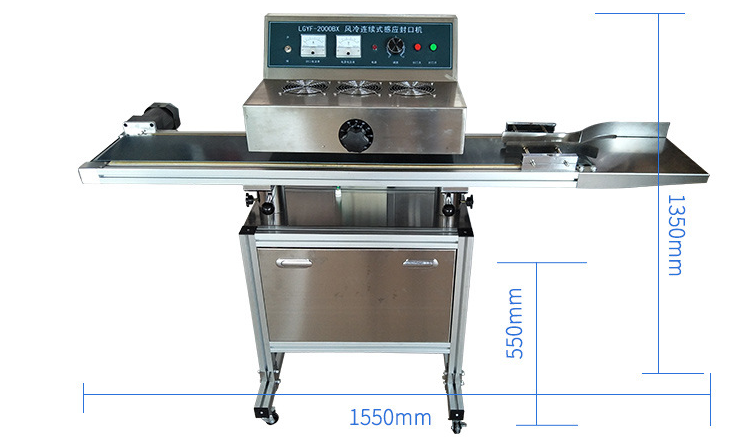

Dimension (L x W x H)130×50×130 ( cm ) 155×50×135 ( cm )
Net Weight 62 ( kg ) 72 ( kg )
