Automatic Induction Sealer Aluminum Foil Sealing Machine

High Quality GLF-1800 Automatic Induction Sealer Aluminum Foil Sealing Machine

Machine description

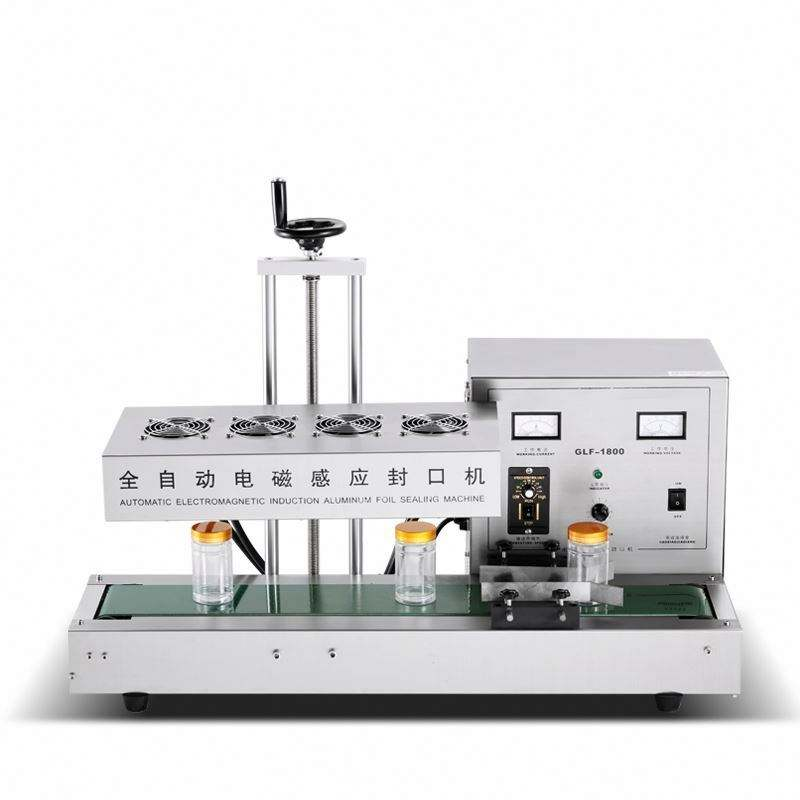

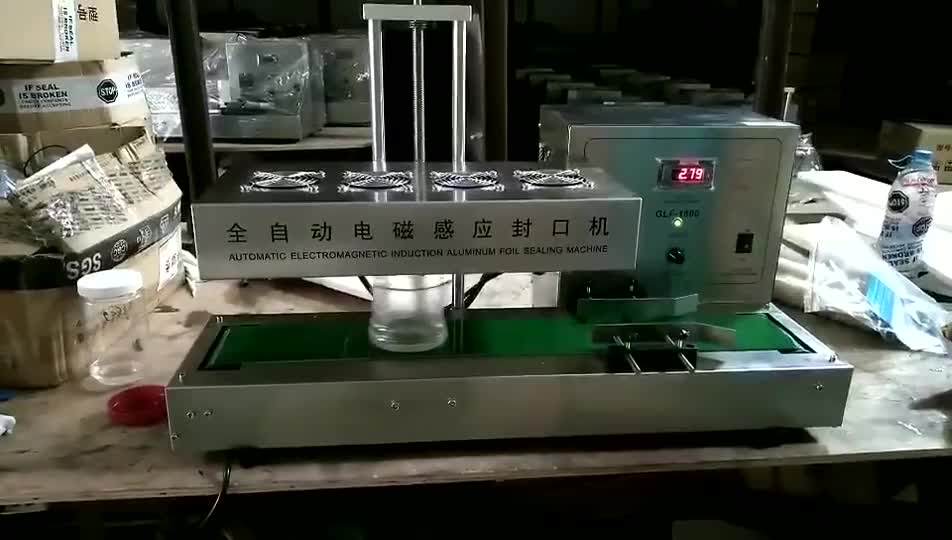

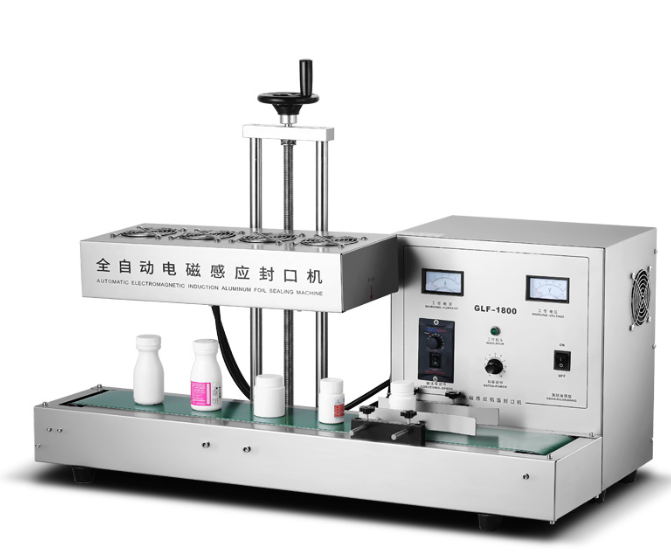

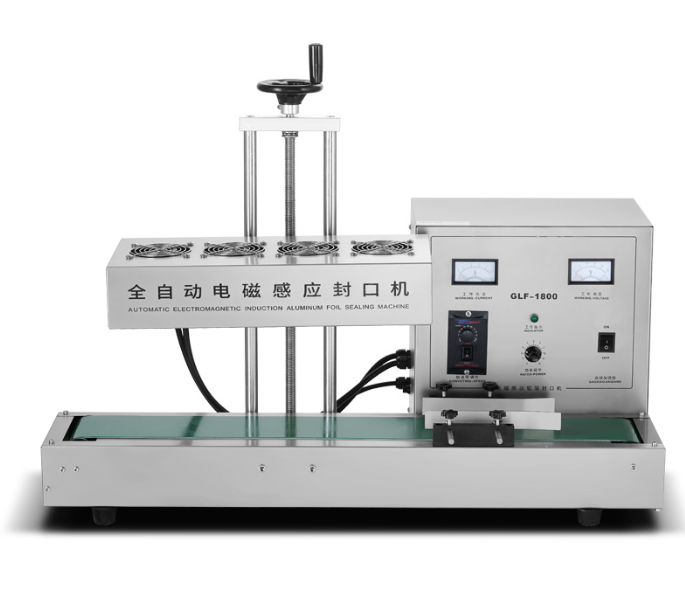

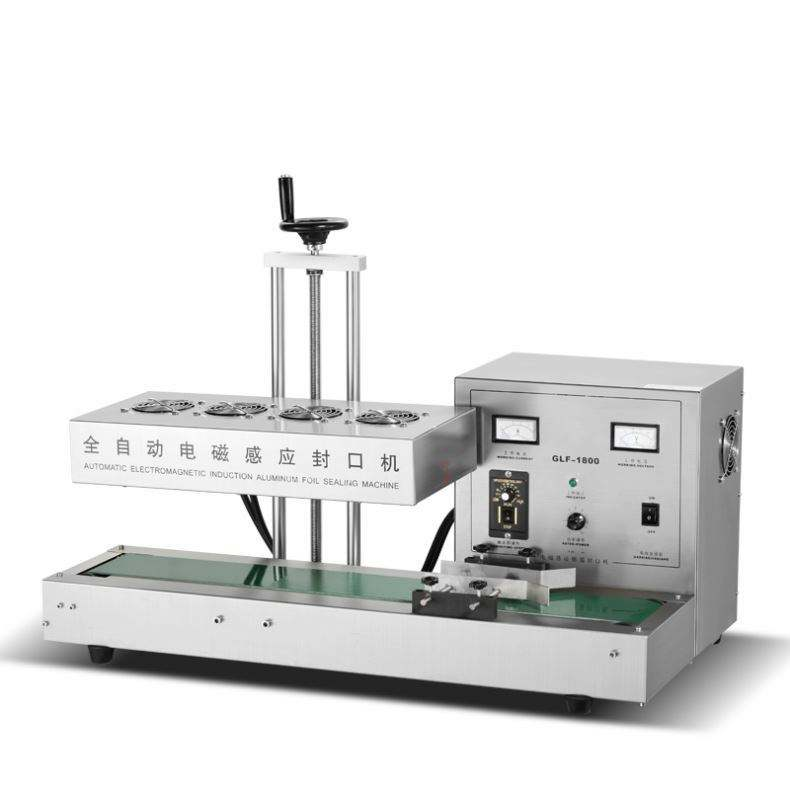

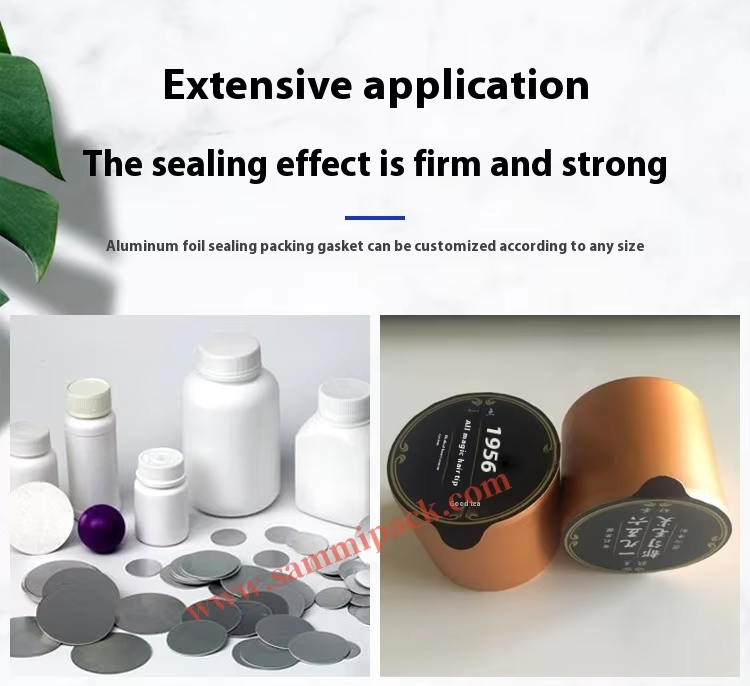

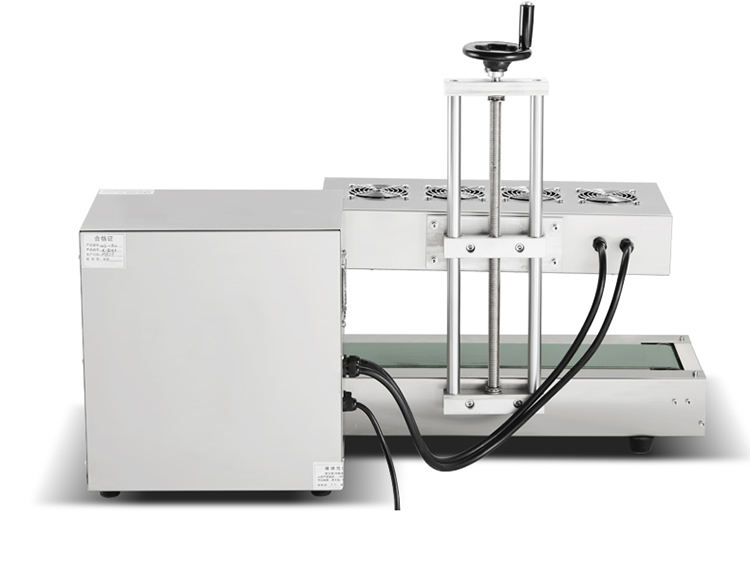

This is a GLF-1800 fully automatic electromagnetic induction sealing machine, specifically designed for the food, pharmaceutical, cosmetics, and personal care industries. It is suitable for sealing aluminum foil gaskets on containers with threaded flat lids, such as plastic and glass bottles. The machine utilizes advanced electromagnetic induction technology to achieve contactless, instantaneous heating and sealing, ensuring a secure, moisture-proof, and leak-proof seal. It supports bottle heights of 20–300 mm and mouth diameters of 50–120 mm, with a conveying speed of 0–15 meters per minute.

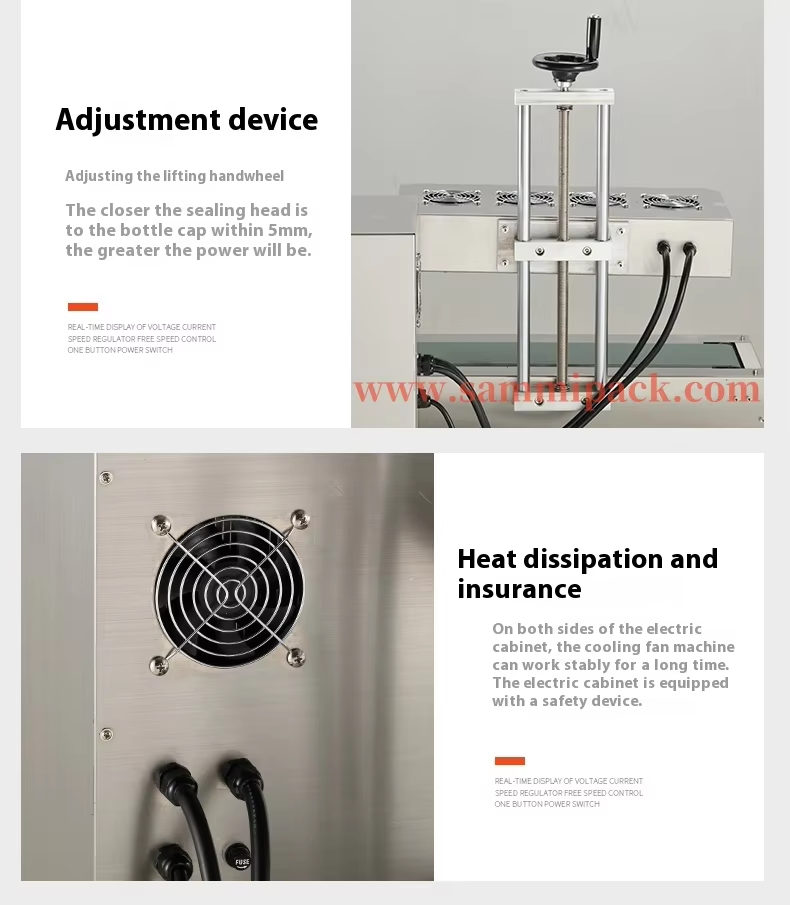

Equipped with a smart induction switch and an air-cooled heat dissipation system, the machine operates smoothly and quietly. The control panel integrates digital displays and physical knobs, supporting parameter presetting and real-time monitoring to enhance production efficiency and consistency. Widely used in production lines for condiments, pet food, and instant beverage products, it is a core piece of equipment for improving packaging aesthetics and ensuring safe transportation.

Feature:

1.The power of switching power supply can be manually adjusted, with digital display thermometer.

2.The performance of advanced AC speed regulating motor is reliable and the transmission is stable.

3.Automatic aluminium foil sealing machine has a closed-loop stepless speed change system,

4. With intelligent induction switch, which can intelligently convey products,

5. Fully automatic detection and diagnosis, all-air cooling and heat dissipation.

6.Sealing speed is fast, it is suitable for large scale production.

7.Stainless steel shell in appearance, it,s beauty and generous;

8.Easy to operate, good sealing quality, continue working.

Machine specification :

Diameter of bottle mouth 50-120mm

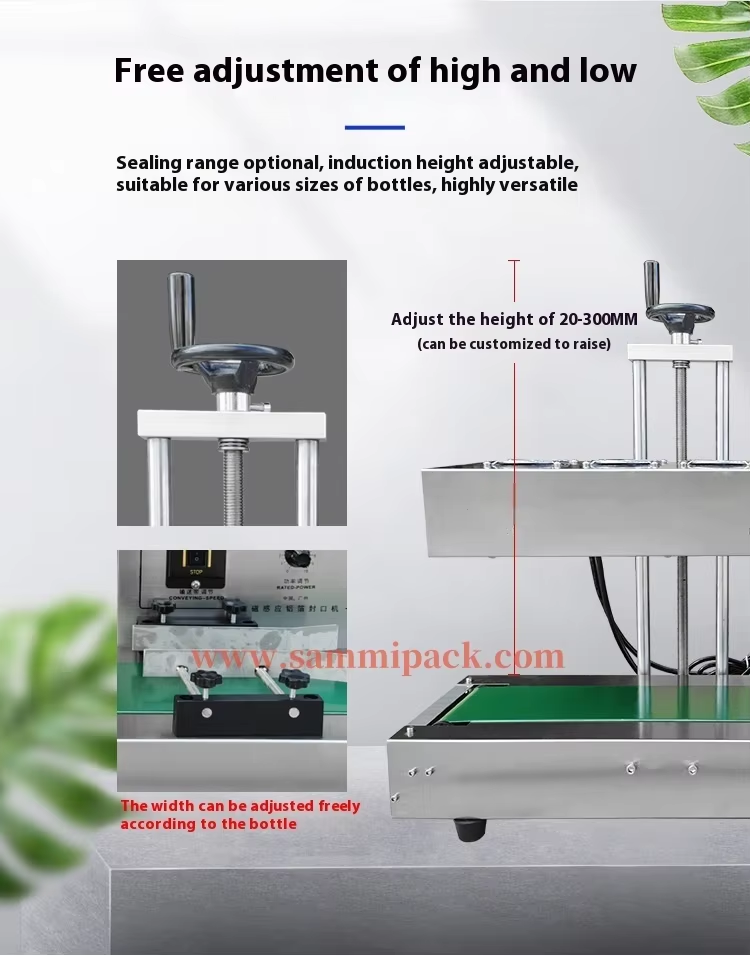

Height of bottle 40-300mm

Voltage AC220V±10% 50HZ

Power 1300W

Currency ≤8A

Sealing Speed 0-15M/minute

Dimension of machine 930*540*440mm

Dimension of the package 1150*480*400mm

Gross weight 45 kg

Material Stainless steel

Work  principle

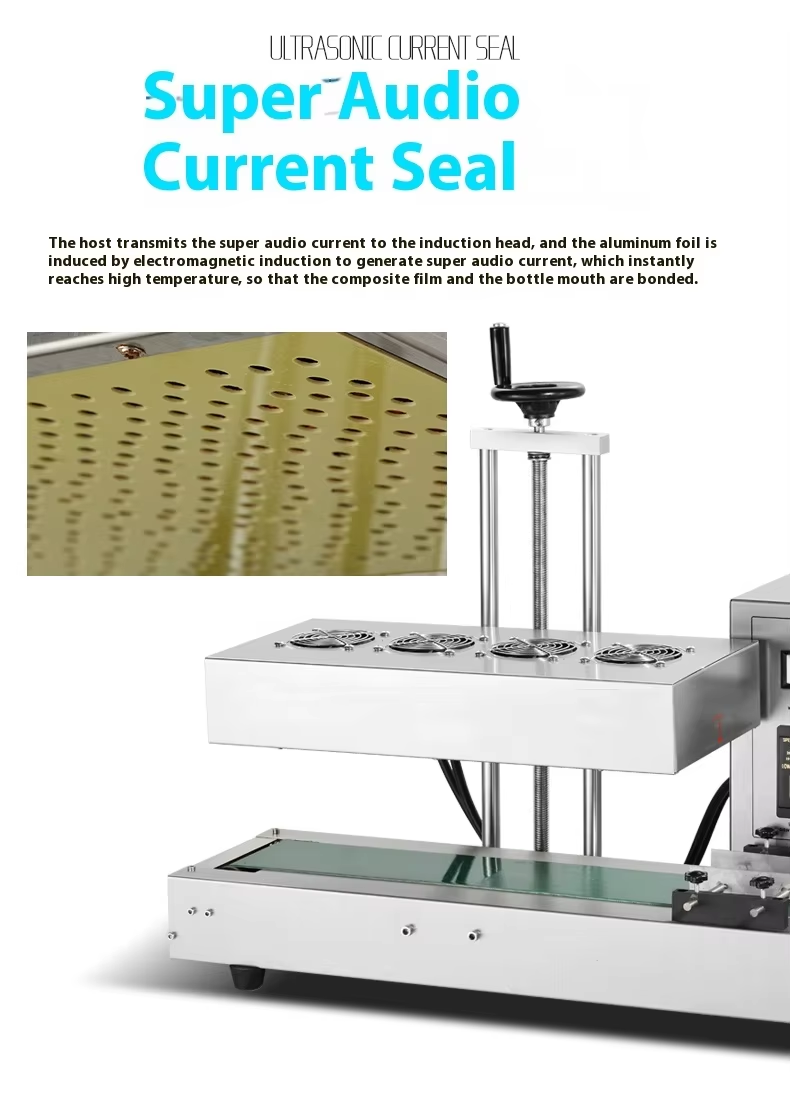

The machine operates on the principle of electromagnetic induction: The aluminum foil on the bottle top is highly

heated instantaneously and melted so that the bottle mouth is closely wrapped and sealed.

Operating instruction

1, Put the induction sealer on the table,plug in the machine.  Must pay attention not to put the sealing head(handle head) on the machine.

2, Turn on the machine,the  power light flashes red.

3, Put sealing head smoothly on the bottle cap, press the button on the handle, power light flashes red and hear a bee sound.

( Note:      the button on the handle work once at a time, it can not keep pressing on button, or it will work continuously without stop.)

4, Power light went out, bee sound stop, it means the sealing is finished.

5, Rotate the heating time button,the sealing time can be adjustable. Bottle neck diameter 20mm ,

Heating time adjust to 1.5;  Bottle neck diamter 50mm,Heating time adjust to 2(Note: for the thickness difference of bottle cap , heating time should be lengthen in accordance with thickness of bottle cap)

Note:when sealing, the sealing bottle mouth must be put in the middle of the induction head to ensure the sealing

quanlity.

The material of bottle and aluminium foil should be the same and tighten the foil inside the cap with bottle mouth.
