The SMTBJ-190 Semi-Automatic Double-Sided Cylindrical Bottle Labeling Machine is specifically designed for the food, pharmaceutical, personal care, and beverage industries. It is suitable for front-and-back or wrap-around labeling of cylindrical containers such as glass bottles, plastic bottles, and metal cans. The machine features PLC touchscreen control and a pneumatic drive system, achieving labeling accuracy of ±1 mm. It operates at a production capacity of 20–30 bottles per minute, supports bottle diameters of 10–150 mm and label widths of 15–200 mm, and is compatible with full-wrap, half-wrap, and front-and-back dual-labeling modes. With its compact design and user-friendly operation, new employees can operate the machine after minimal training. Widely used in applications such as honey bottles, wine bottles, medicine bottles, and cosmetic bottles, it is an ideal choice for small and medium-sized enterprises looking to improve labeling efficiency and label consistency.
SMTBJ-190 pneumatic double side round bottle labeling machineProduct Description Product Description Newest high technology table type semi-automatic labeling machine for round bottle, it save space and high efficiency. With PLC touch screen operation, fast labeling speed to save workers and time.
This is the SMTBJ-190 semi-automatic double-sided cylindrical bottle labeling machine, specifically designed for the food, pharmaceutical, personal care, and beverage industries. It is suitable for front-and-back or wrap-around labeling of cylindrical containers such as glass bottles, plastic bottles, and metal cans. The machine features PLC touchscreen control and a pneumatic drive system, with labeling accuracy of ±1 mm and a production capacity of 20–30 bottles per minute. It supports bottle diameters of 10–150 mm and label widths of 15–200 mm, and is compatible with full-wrap, half-wrap, and front-and-back dual-labeling modes.
The equipment features a compact design, small footprint, and easy mobility. It is equipped with fault shutdown and production counting functions to ensure production safety and data traceability; label tension and position can be freely adjusted via mechanical controls to accommodate different label materials and bottle shapes. Widely used in production lines for condiments, pet food, and instant beverage products, it is a core piece of equipment for enhancing packaging aesthetics and transportation safety.
Application:
Suitable for different size of adhesive label or adhesive film on all kinds of round bottle,High accuracy and high speed,dispensing & labeling automatically.
Suitable range: Round bottle, Round tank, Round barrel to self-adhesive labeling.
It is used in PET bottle, plastic bottle, glass bottle, Metal bottle and so on round bottle etc.
Applicable label: adhesive label, it cost extra for adhesive film, transparent label and add date printer.
Machine Feature;
1, Small structure takes up less space and easy to move and load.
2, Good labeling precision and stability; Neat, no wrinkle, no bubble.
3,It has powerful function. It can achieve circumferential position labeling and non-position labeling easily by switch control.
4,It satisfy the circumferential position labeling and non-position labeling on diameter between 10-150mm bottles.
5, It is easy to use and adjust. The new workers can use or adjust it easily after simple training.
6, The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely. All these make it easy to change products and wind labels.
7, Has fault stop function, production counting function. Technical data
Specifications of round stick labeling machine:
Model SMTBJ-190
Labeling precision:±1mm
Efficiency 20-30 piece/minutes
Working mode Pneumatic
The size of work-piece: 10-150mm in diameter
Tag width 15-200mm
Label size: length 20-300mm width 20-230mm
Label roll size: inner diameter 76mm outer diameter≤250mm
Power supply: 220v 50hz/ 110v 60hz for option
The motor power 0.25KW

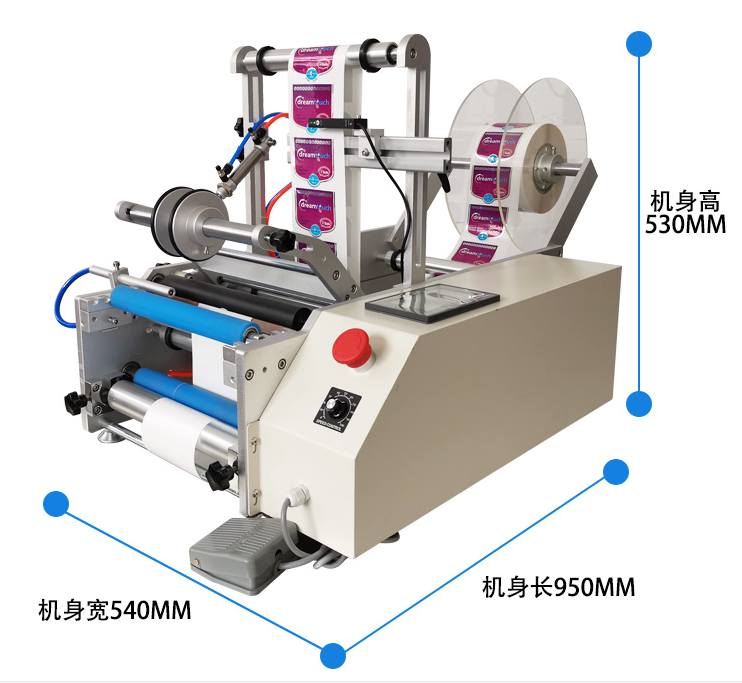

machine size: 950 x 540 x 530 mm
weight: 60KG

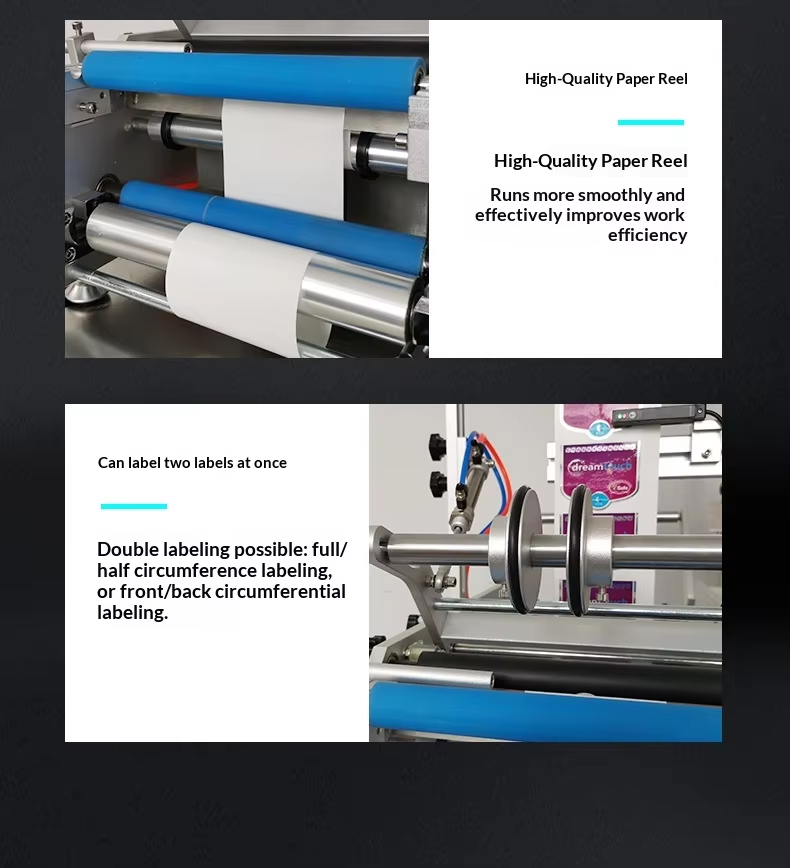

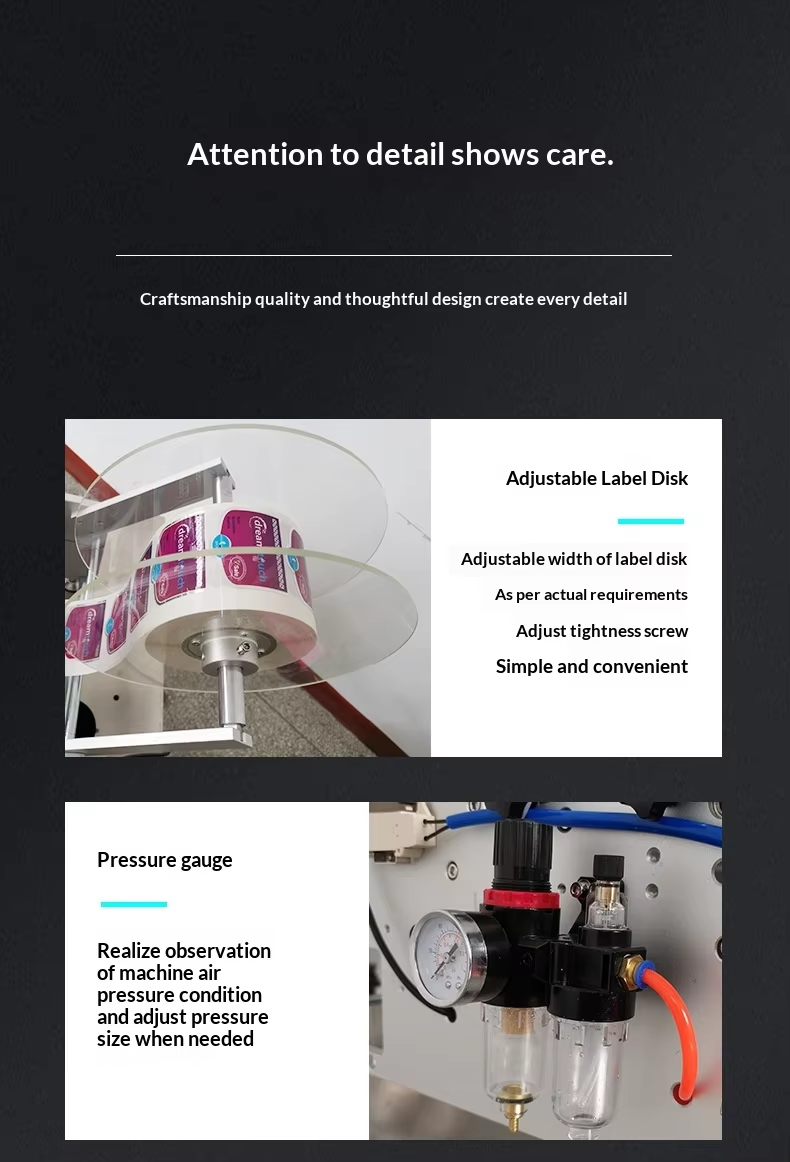

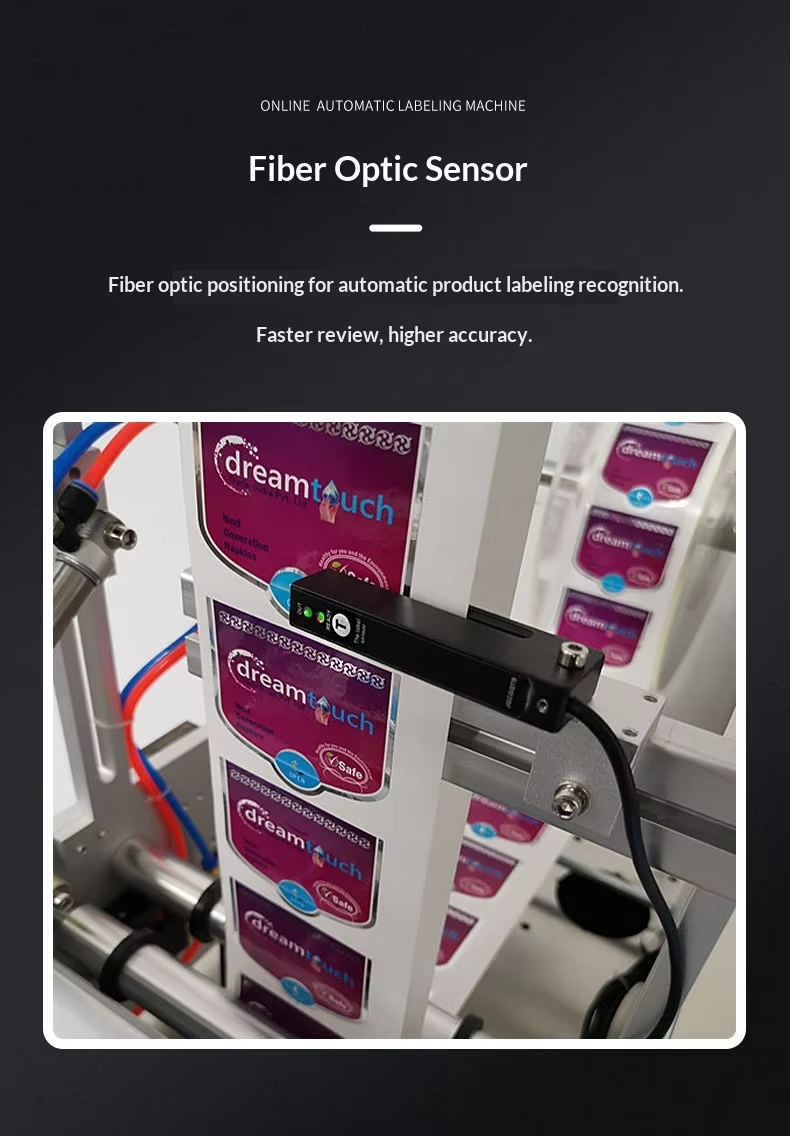

Detail show

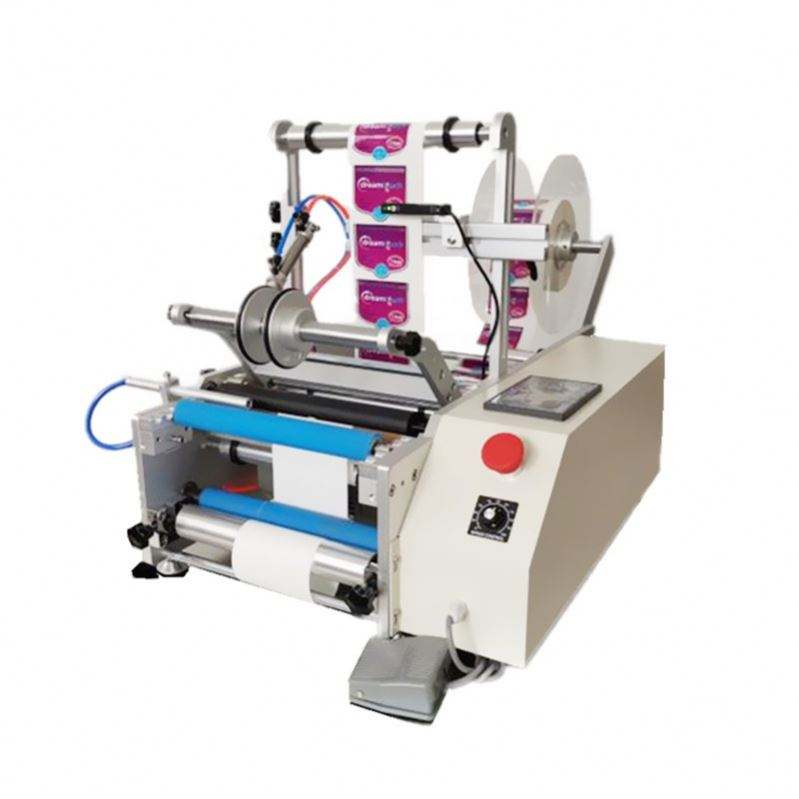

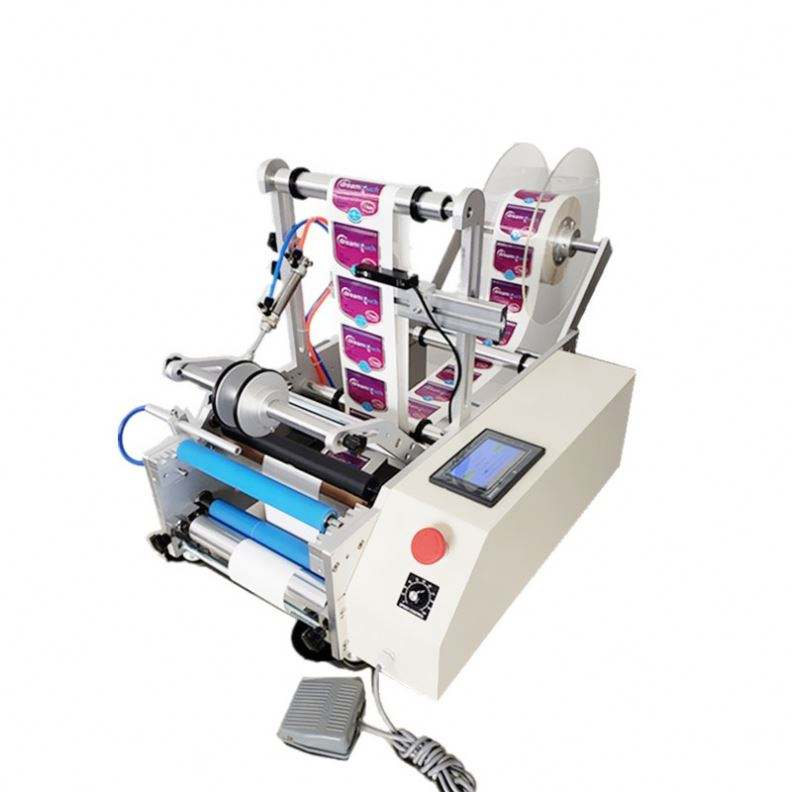

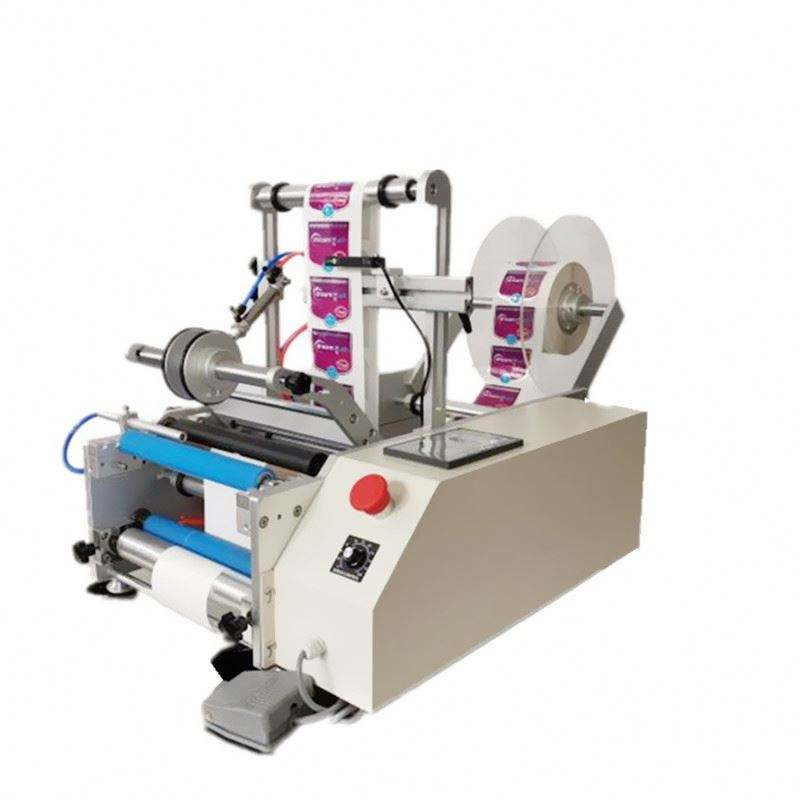

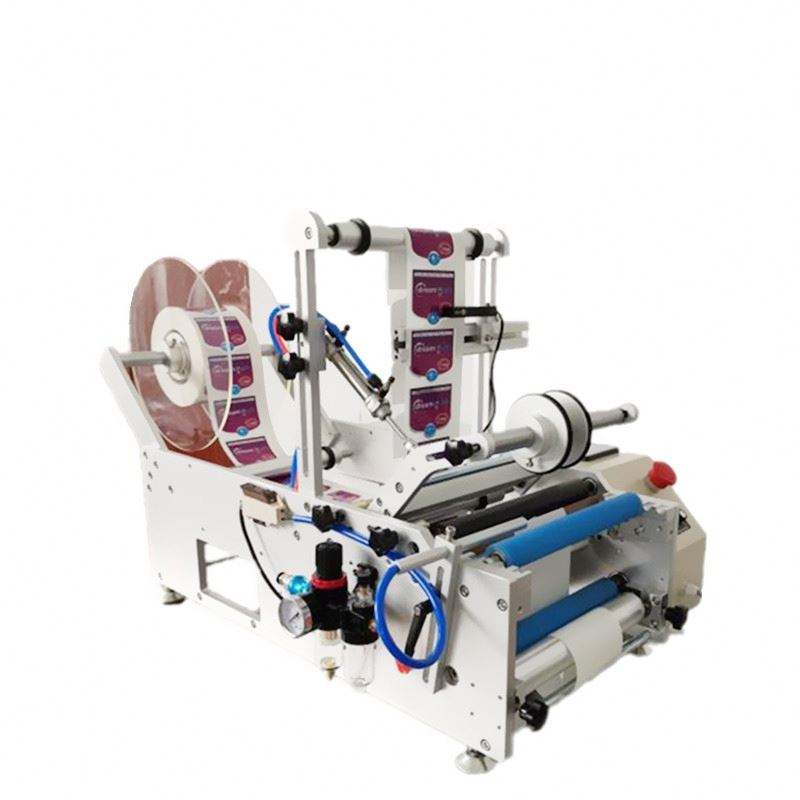

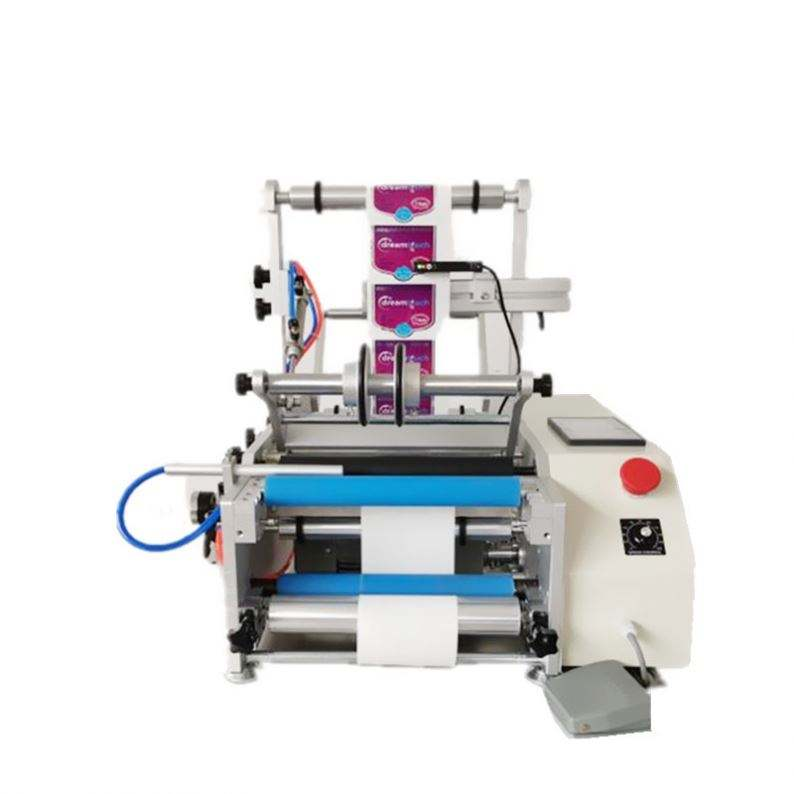

Pictures of round stick labeling machine:
