The LGYF-2200 fully automatic electromagnetic induction sealer is specifically designed for the food, pharmaceutical, and personal care industries, and is suitable for sealing aluminum foil lids onto screw-top plastic and glass bottles. The machine is controlled by a transistor-based digital circuit, ensuring simple operation. With a maximum production capacity of 12,000 bottles per hour, it accommodates sealing diameters of 20–180 mm and bottle heights of 40–400 mm, meeting the continuous production needs of medium to large-scale operations. Its water-cooling system ensures stable, long-term operation, making it widely used in the beverage, health supplement, and cosmetics industries. It is a reliable choice for enhancing packaging efficiency and sealing quality.
High quality LGYF-2200 Automatic induction sealing machine
Product description

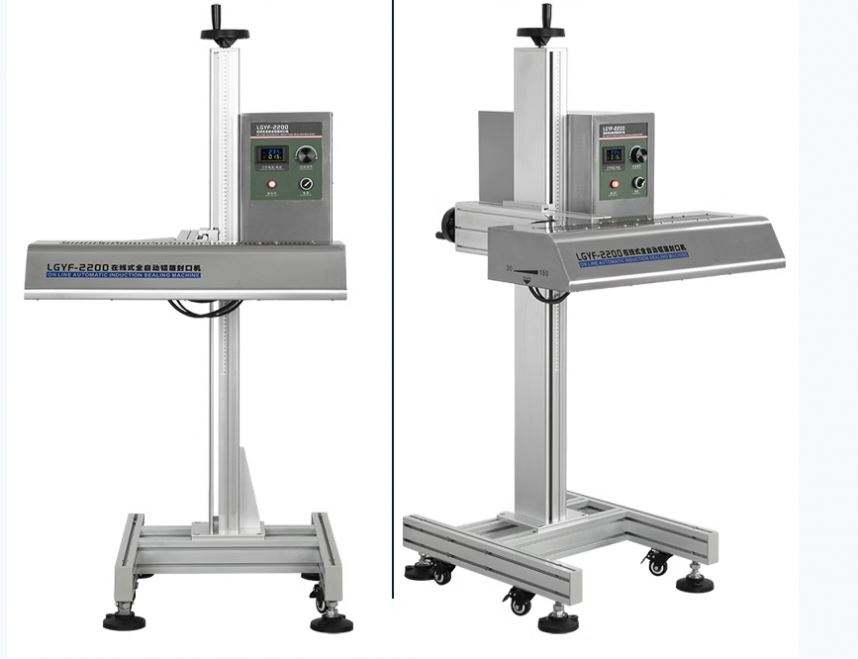

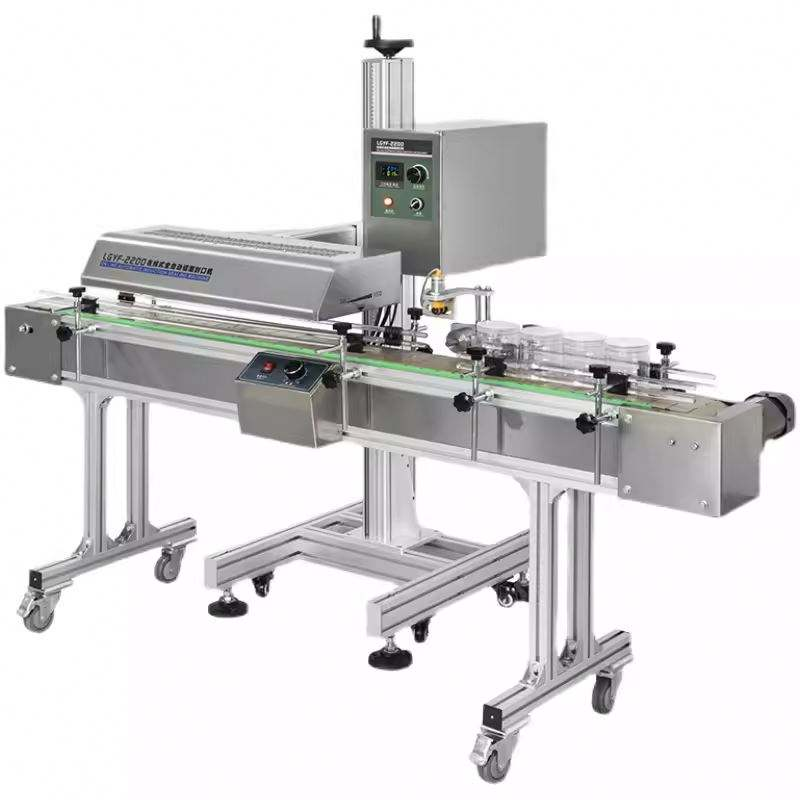

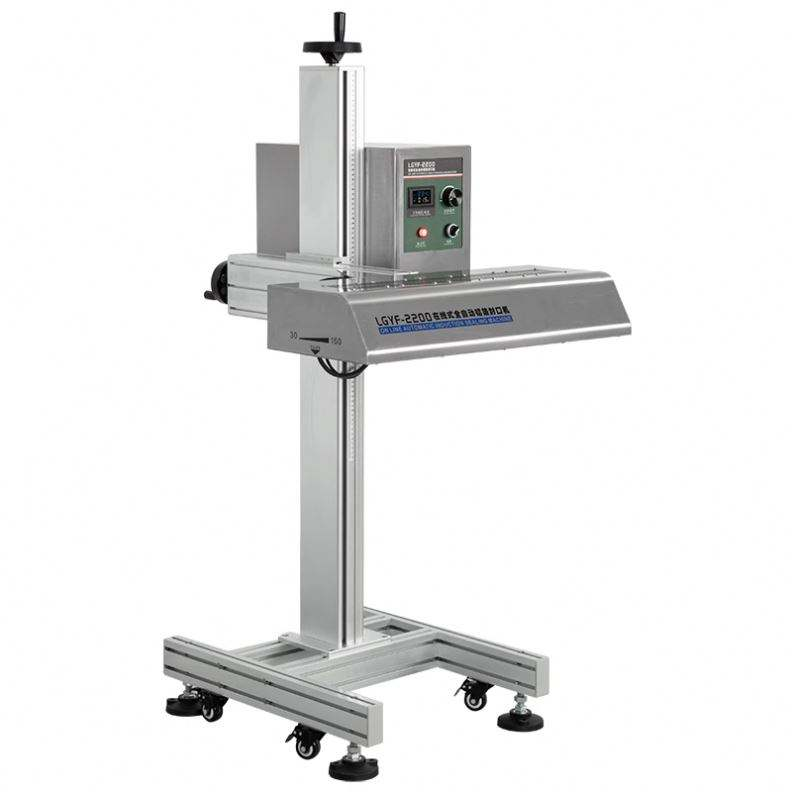

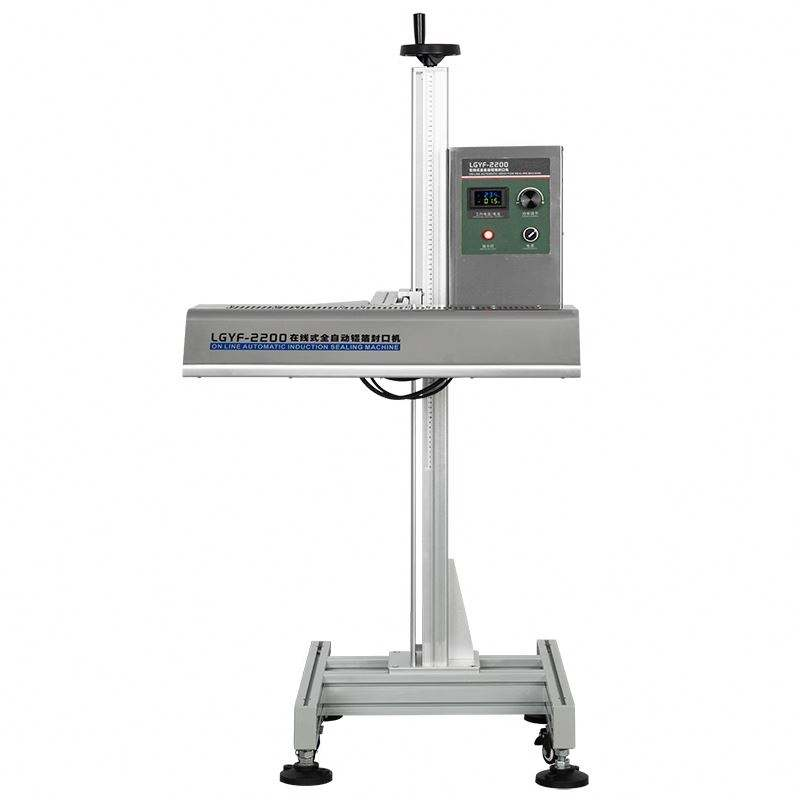

This is an LGYF-2200 fully automatic air-cooled electromagnetic induction sealer, specifically designed for the food, pharmaceutical, and personal care industries. It is suitable for aluminum foil sealing of plastic and glass bottles with screw threads. The machine is controlled by a transistor-based digital circuit, ensuring simple operation and stable performance. It achieves a maximum output of 120–300 bottles per minute and accommodates bottle caps with diameters ranging from 20 to 150 mm and bottle heights from 20 to 600 mm, meeting the continuous production needs of medium to large-scale operations.
Equipped with an air-cooling system, the machine maintains consistent performance during prolonged, high-load operation. Casters mounted on the base facilitate flexible movement and deployment. Its core advantage lies in its superior sealing performance, effectively preventing oxidation or leakage of contents. It is widely used for packaging products with high sealing requirements, such as beverages, health supplements, cosmetics, and condiments. The machine features a compact design, with a control panel integrating a touchscreen and physical buttons that support parameter presetting and real-time monitoring, thereby enhancing production efficiency and consistency.
Application
Suitable for sealing flat round screw cap on glass bottles or plastic bottles. This induction sealing machine is not suitable for metal containers, cover without screw. And the cap dia. is between 20mm-180mm for option. It's suitable for the big production factory.

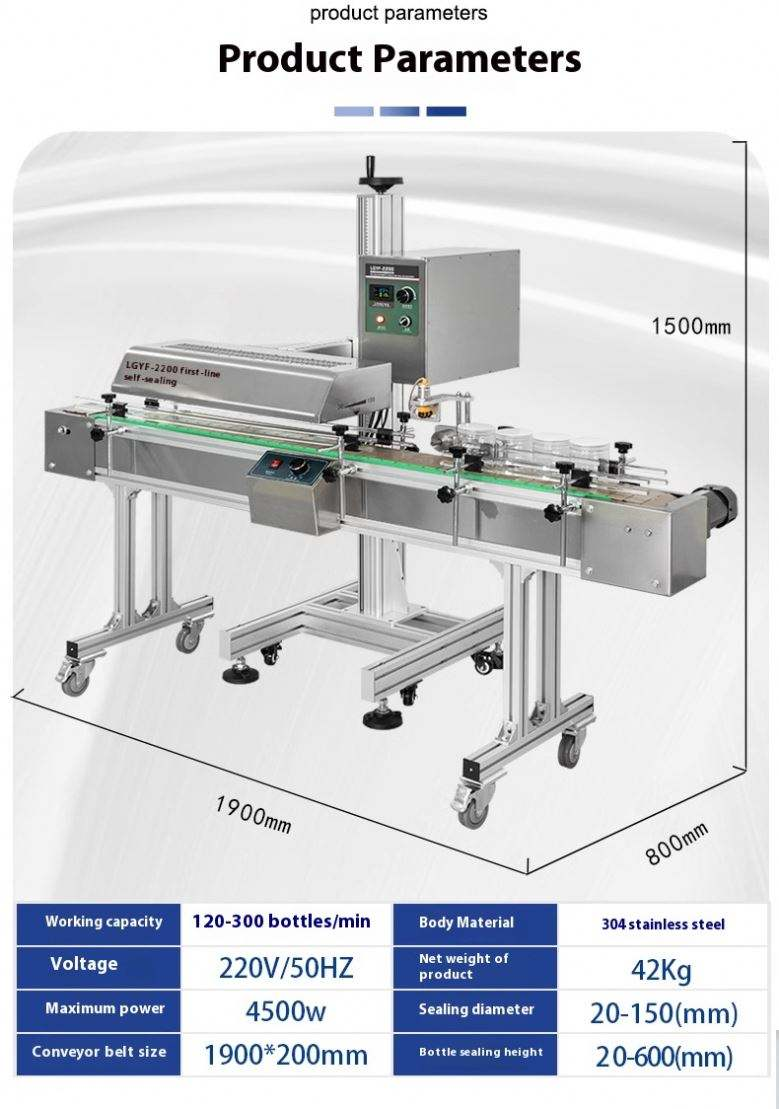

Specification
Model LGYF-2200ALGYF-2200B
Voltage 220V, 50/60Hz
Power 2300W
Sealing Diameter φ20~φ60MM φ30~φ150MM

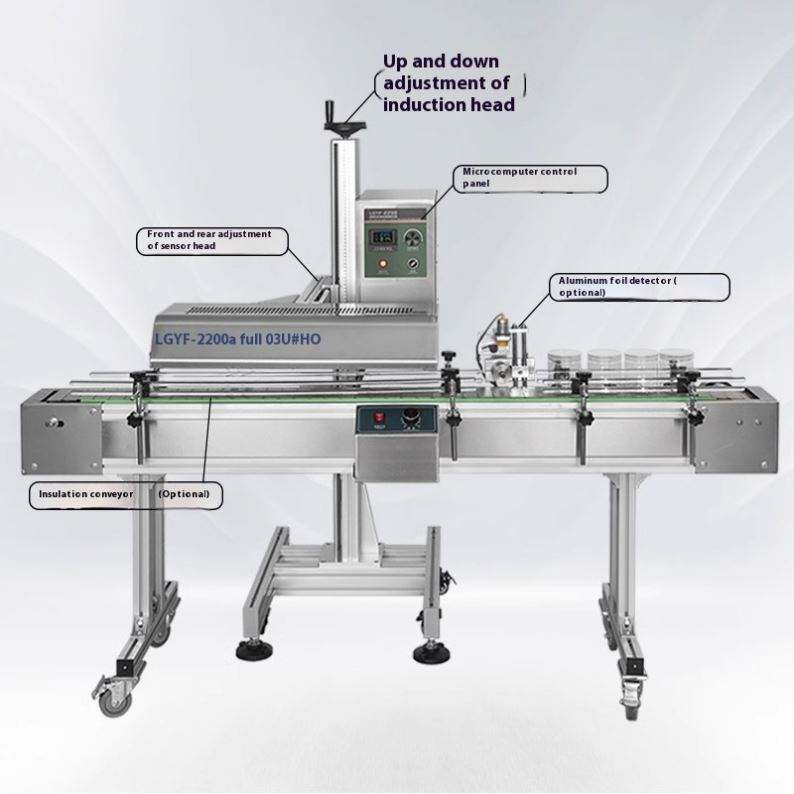

Sensor Head Adjustment Range Height: 0-800MM ; Front and Rear: 0-260MM
Sealing Speed 5~18M/MIN
Machine Size 750*950*1600MM
Weight 52KG
Conveyor Size 1200MM Length * 200mm Width
Chassis Materia l304 stainless steel & aluminum profile
Working Mode Continuous sealing
Cooling Method Air cooling
Control Circuit Transistor digital circuit
