perfume crimping machine

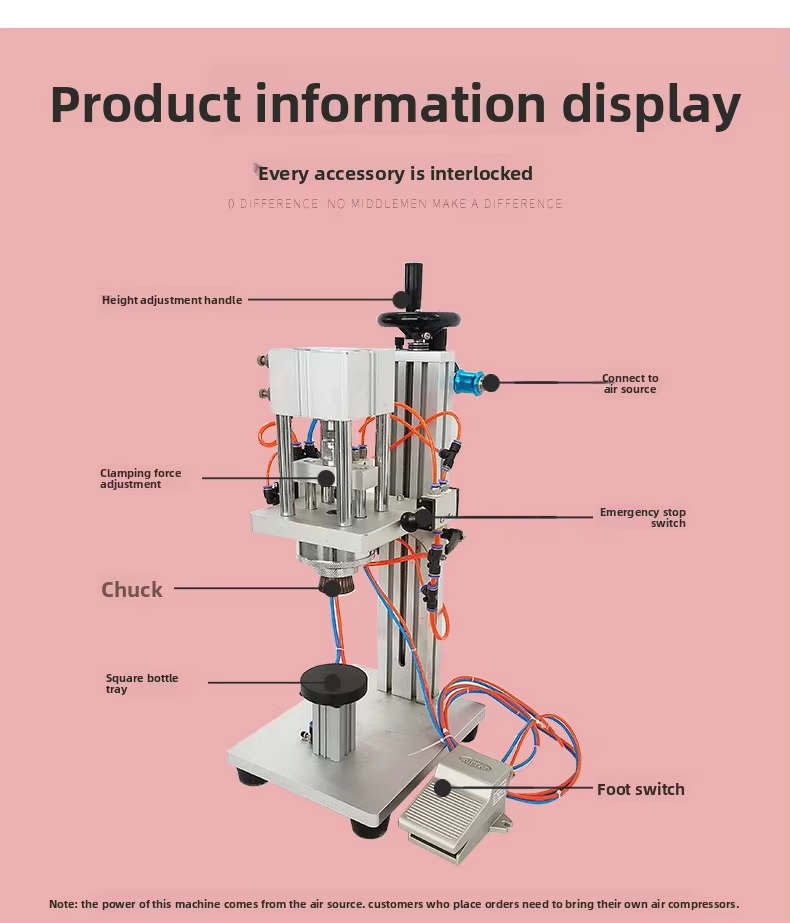

The perfume crimping machine is a kind of clamping type cap closing machien.It is suitable for cap closing of spray type mental caps. The machine use the clamp to close the cap and fasten it on the edge of bottle mouth.The whole machine is composed of machine body, table surface, clamping device and pneumatic control system.

The working principle of the capping machine is to open the hand-operated valve to connect with the air source. Place the glass bottle with the nozzle in place into the capping head, step on the pneumatic switch. The rising platform straightens the bottle, and at the same time, the cylinder pushes the capping head

Customer core pain point：

1. Inadequate capping precision affects product quality: perfume, as a high-end beauty category, the tightness of the bottle cap is directly related to the sealing - too loose is easy to cause leakage, volatilization, and damage the integrity of the flavor; If it is too tight, it will increase the difficulty for consumers to open it. Traditional manual capping relies on experience, with an error rate of up to 8% -12%. In mass production, there is a tendency for "inconsistent tightness", which directly reduces the yield of finished products.

2. Low production efficiency, unable to match production capacity demand: manual capping has low efficiency, and is prone to delivery delays when facing peak orders such as e-commerce promotions and holiday stocking; Moreover, long-term repetitive manual work is prone to fatigue, and efficiency decreases with working hours, making it difficult to maintain stable production capacity and increasing labor management costs.

3. Poor compatibility and high adaptation cost: perfume has various packaging forms (spray pump head, screw cap, snap cap, etc.), and traditional capping equipment is mostly single specification adaptation. When replacing products, it needs to be re debugged and replaced with accessories, which takes 2-4 hours, affecting the switching efficiency of the production line and increasing the cost of equipment input.

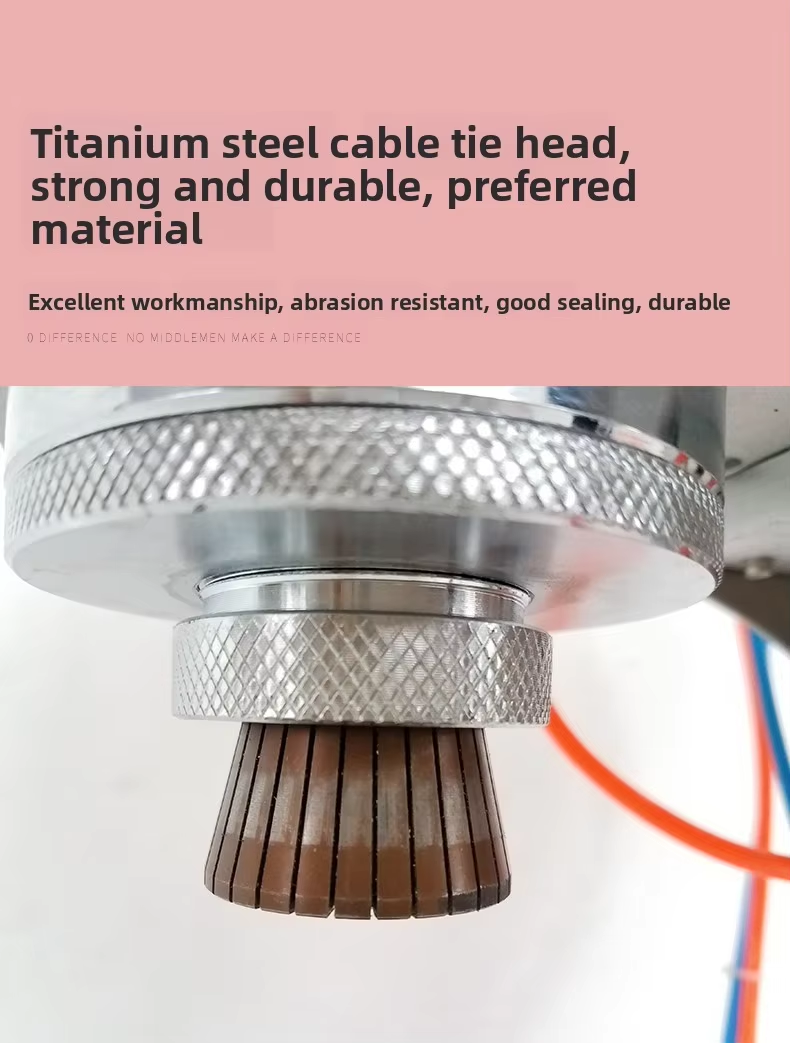

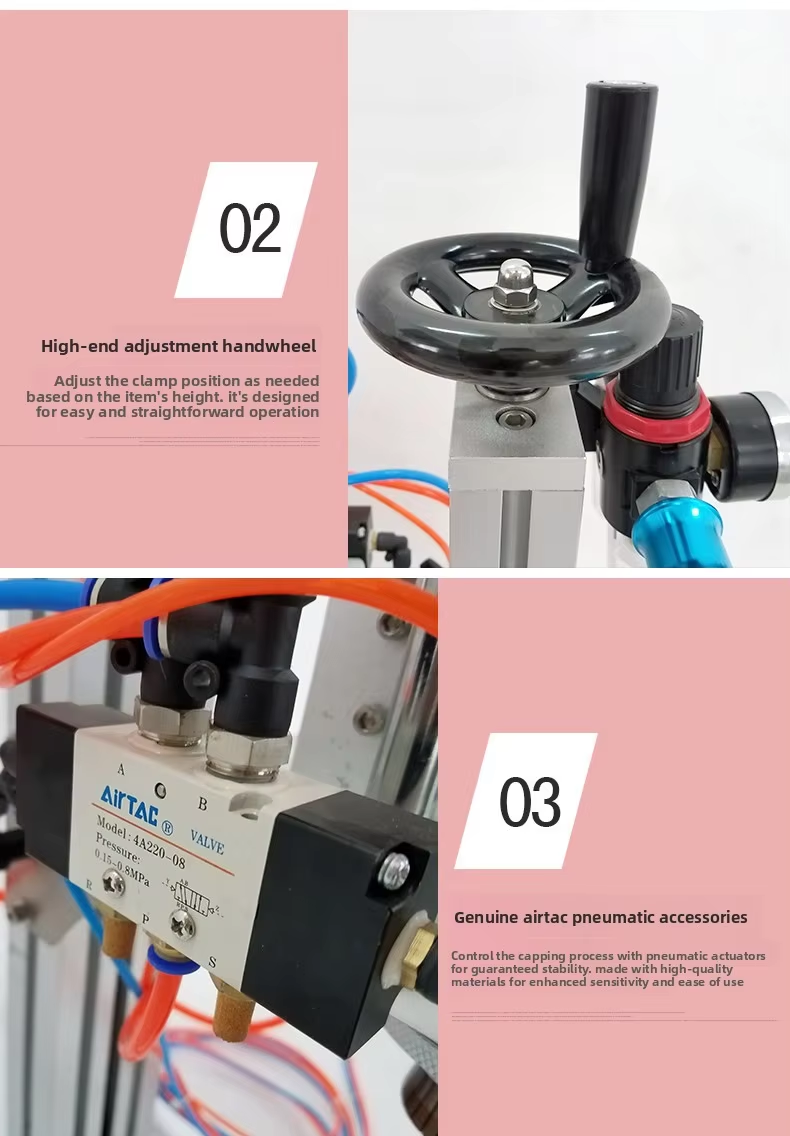

Adjustment method for the cap head:

Loosen the copper core positioning screw inside the nozzle holder, rotate the copper core to move it up and down. Generally, adjust it so that when the nozzle is inserted into the holder, it is slightly lower than the lower plane by 20~30 threads. The specific adjustment position varies depending on the nozzle.

Compressed Air Pressure: 4~6 kg/cm²

Note: When the bottle is clamped into the piercing head, press the return switch, and the bottle will automatically drop off.

Specification of perfume crimping machine:

Note: the cap head can be customized according to the cap size.

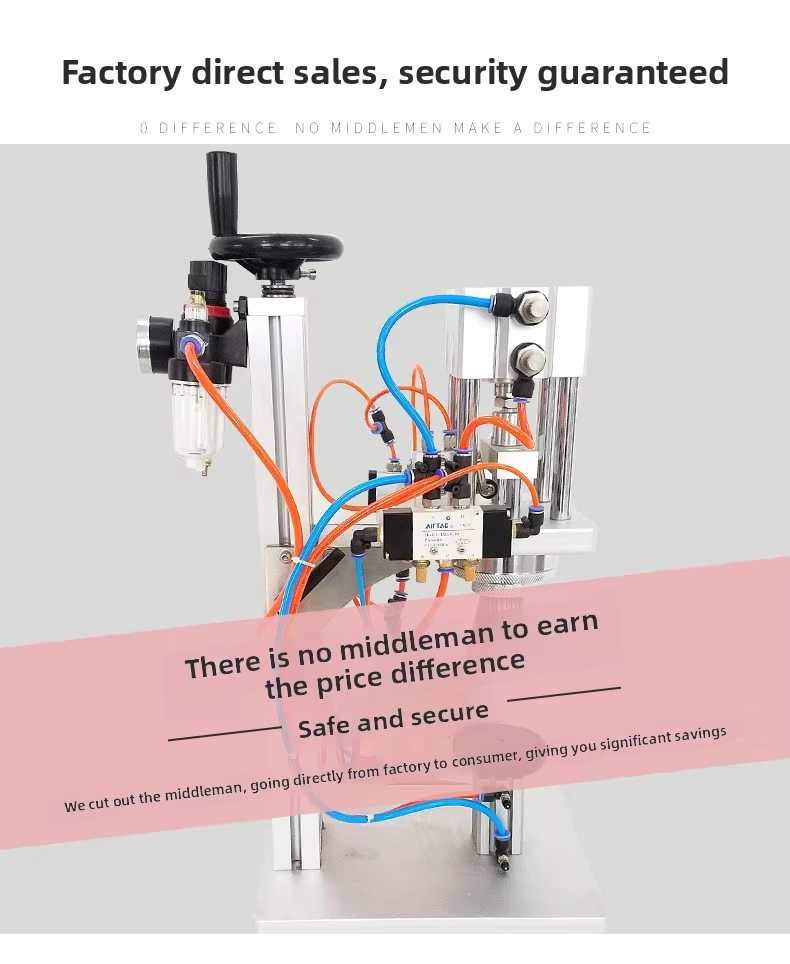

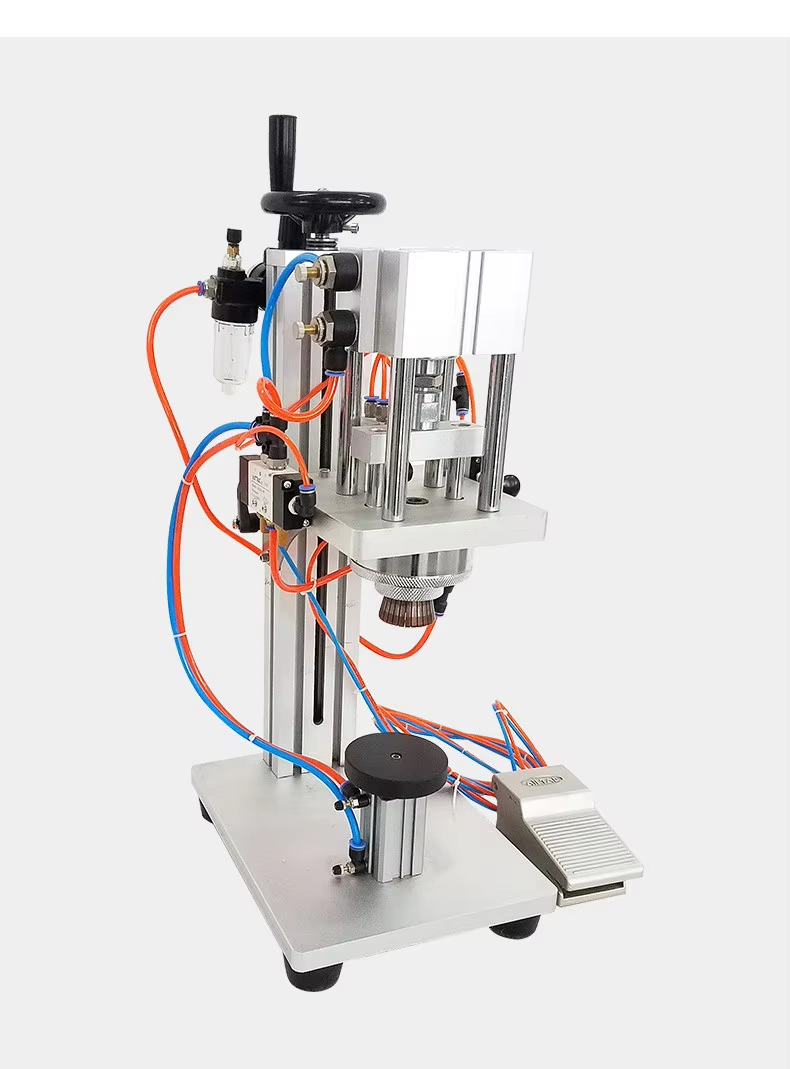

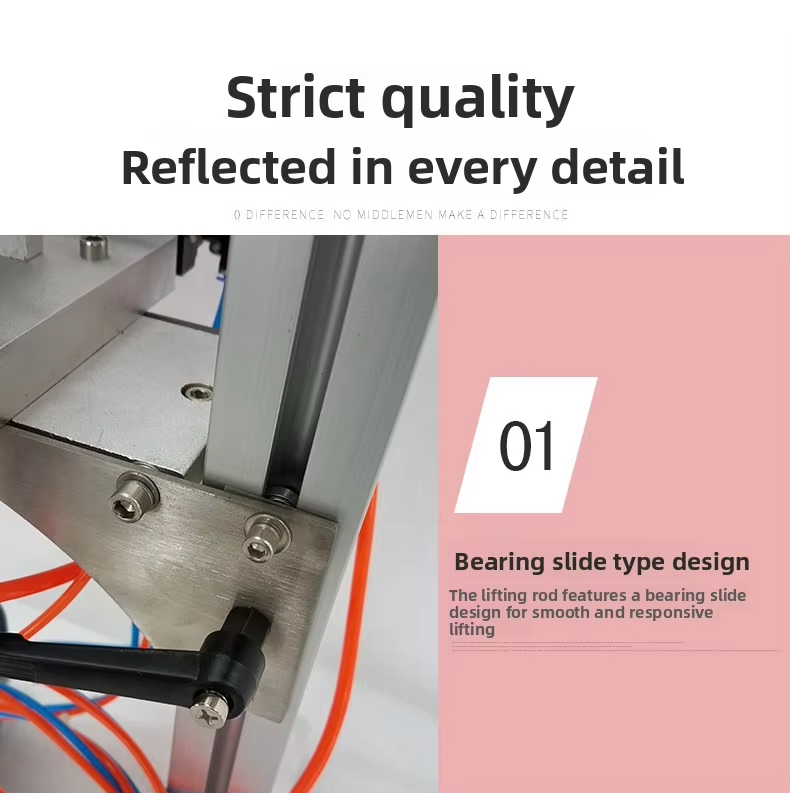

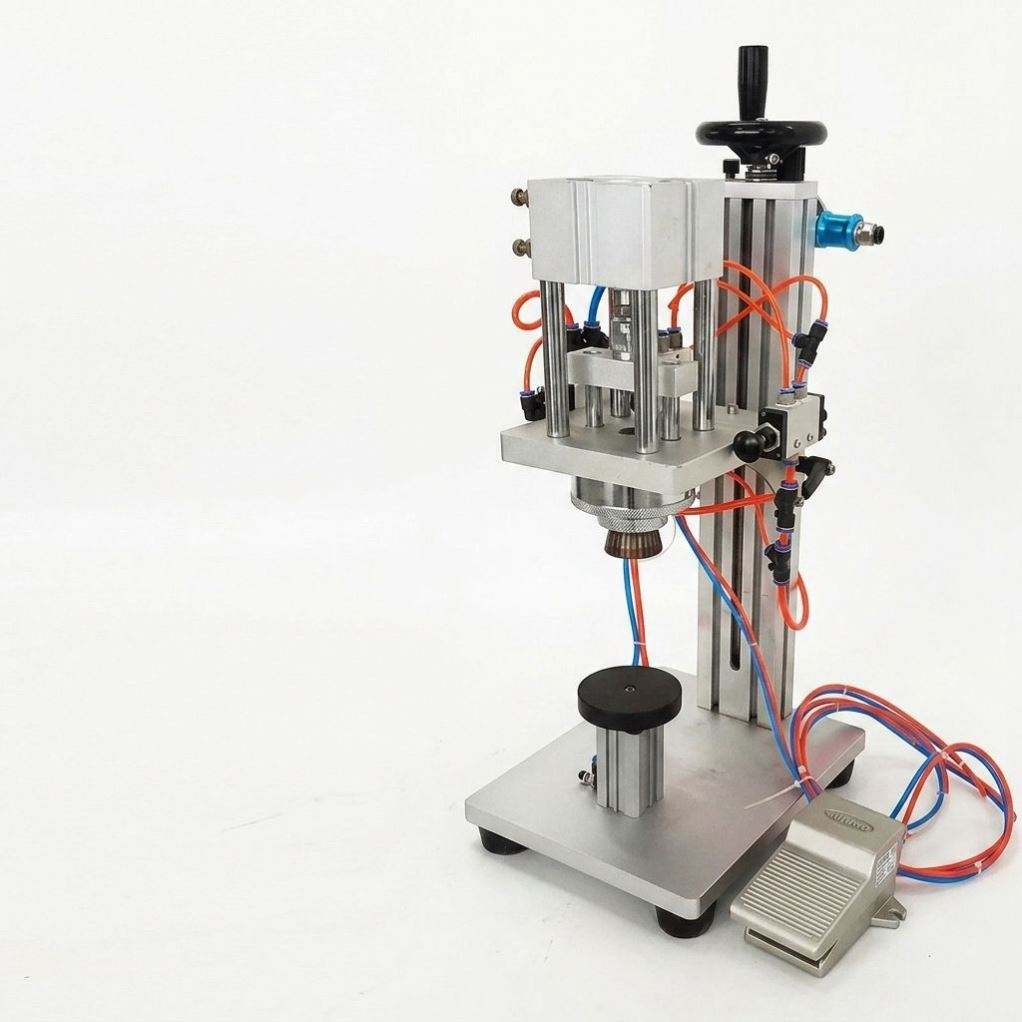

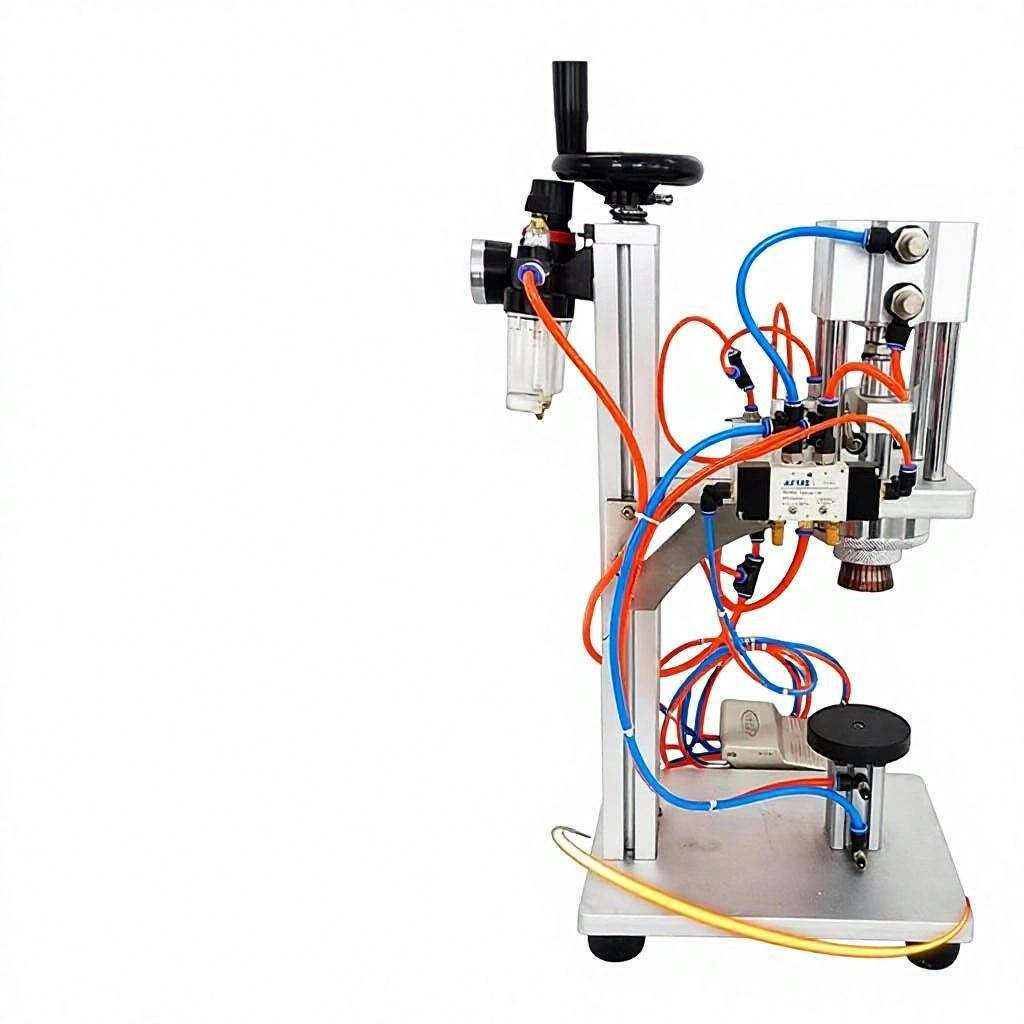

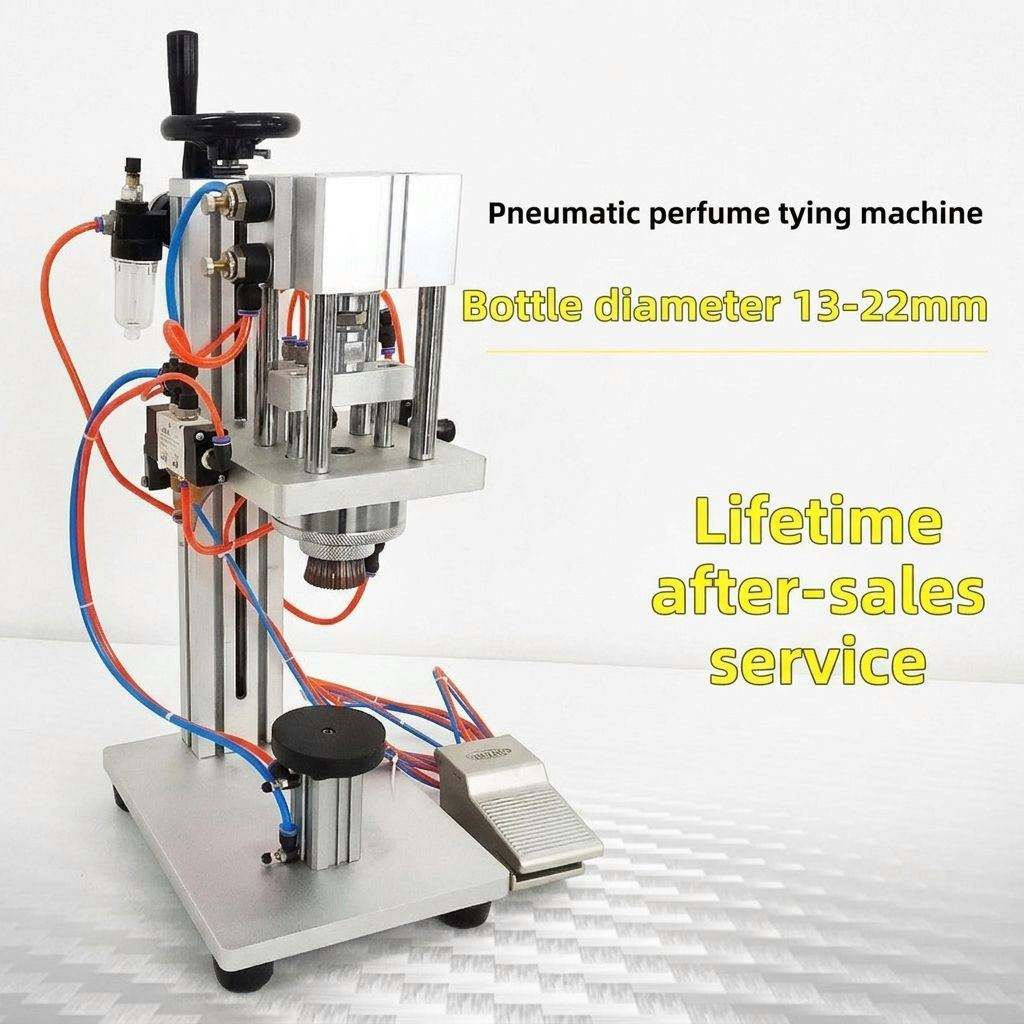

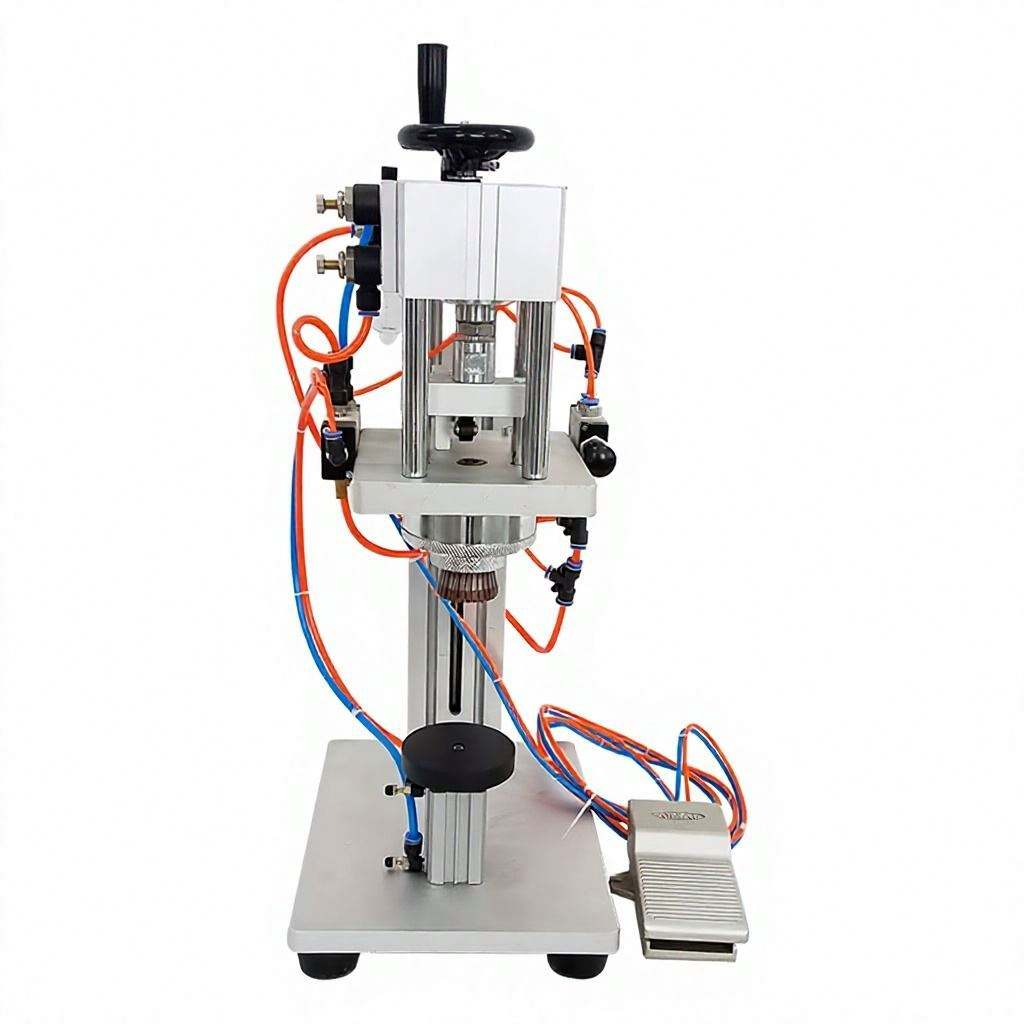

Machine Pictures:
