This semi-automatic bench-top capping machine is specifically designed for the personal care, pharmaceutical, and food industries, and is suitable for sealing a variety of bottle types, including spray bottles, pump-top bottles, and screw-top bottles. The machine features pneumatic drive and a digital control panel, with adjustable torque (5–20 N·m). It accommodates bottle caps with diameters of 20–50 mm and bottle heights of 50–300 mm, achieving a production capacity of 600–1,800 bottles per hour. Its lightweight yet sturdy aluminum alloy frame ensures stability and ease of operation. Widely used in production lines for hand sanitizers, cosmetics, and pharmaceuticals, it is a core piece of equipment for enhancing sealing efficiency and consistency.
High quality semi-automatic tabletop capping machine Spray bottle capper
Product Description Feature
This is a semi-automatic benchtop capping machine designed specifically for the personal care, pharmaceutical, and food industries. It is suitable for sealing a variety of bottle types, including spray bottles, pump-top bottles, and screw-top bottles. The machine features pneumatic drive and a digital control panel with adjustable torque (5–20 N·m). It accommodates bottle caps with diameters of 20–50 mm and bottle heights of 50–300 mm, with a production capacity of 600–1,800 bottles per hour.
Featuring an aluminum alloy frame structure, the machine is lightweight yet sturdy. Equipped with a servo drive system, it operates smoothly and quietly. The control panel integrates a touchscreen with physical buttons, supporting parameter presets and real-time monitoring to enhance production efficiency and consistency. Widely used in production lines for condiments, pet food, and instant beverage products, it is a core piece of equipment for improving packaging aesthetics and ensuring safe transportation.
Specification
Power supply: AC220V/50Hz;
Power consumption: 60W;
dimension: 620LX560WX770Hmm.
Driven type pneumatic and electric
air compressor 1.5hp
Cap diameter: 20-50mm;(other size can be customized)
Bottle height: 50-300mm;
Twisting force: 5-20N.m;(can be adjusted)
Speed 600-1800 bottle/hour;
Machine weight: 35kg;

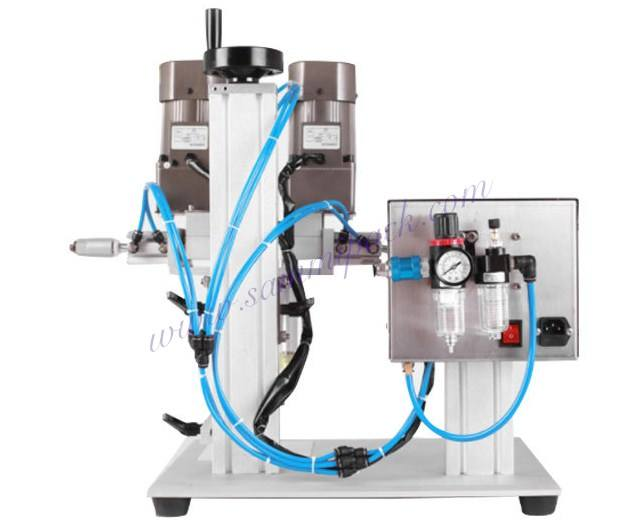

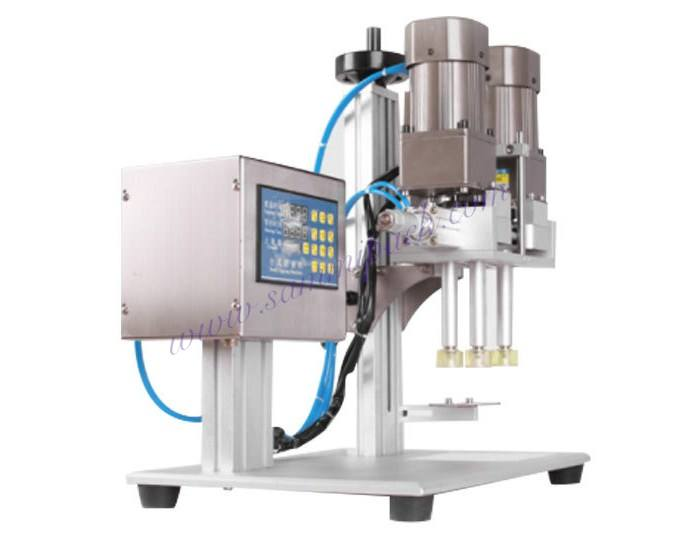

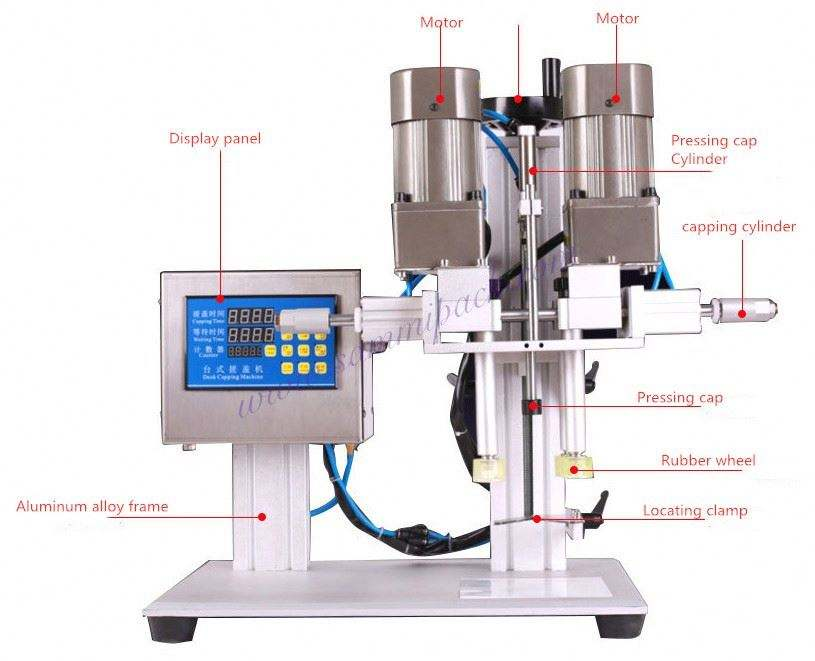

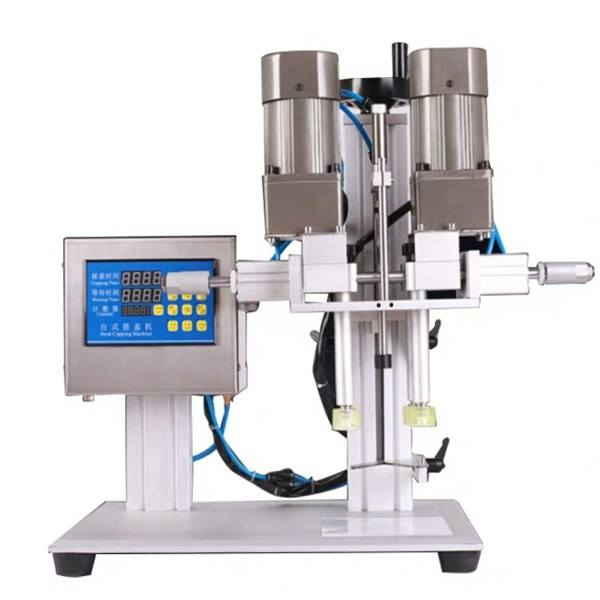

picture of new desktop capping machine
