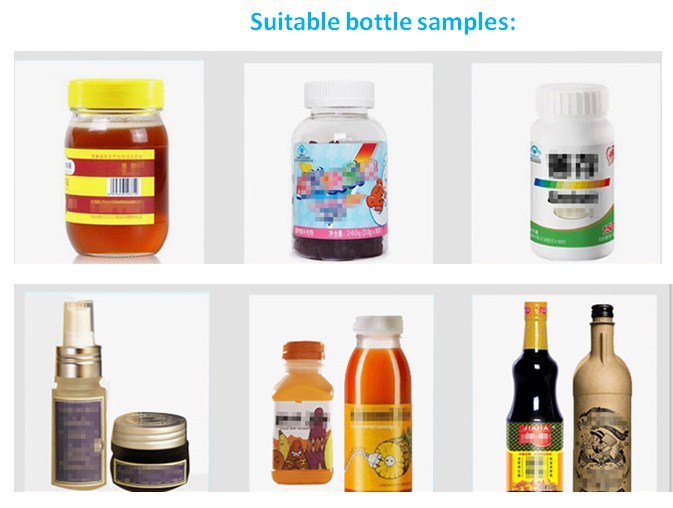

The LT-80 Pneumatic Semi-Automatic Cylindrical Bottle Labeling Machine is specifically designed for the food, pharmaceutical, personal care, and beverage industries. It is suitable for applying self-adhesive labels to cylindrical containers such as glass bottles, plastic bottles, and metal cans. The machine utilizes PLC program control and a fiber-optic sensor system, achieving labeling accuracy of ±0.5 mm. It operates at a production capacity of 25–50 bottles per minute, supports bottle diameters of 15–120 mm and label widths of 20–150 mm, and is compatible with both wrap-around and position-based labeling modes. With its compact design and user-friendly operation, new employees can operate the machine after minimal training. Widely used in applications such as honey bottles, wine bottles, medicine bottles, and cosmetic bottles, it is an ideal choice for small and medium-sized enterprises looking to improve labeling efficiency and label consistency.

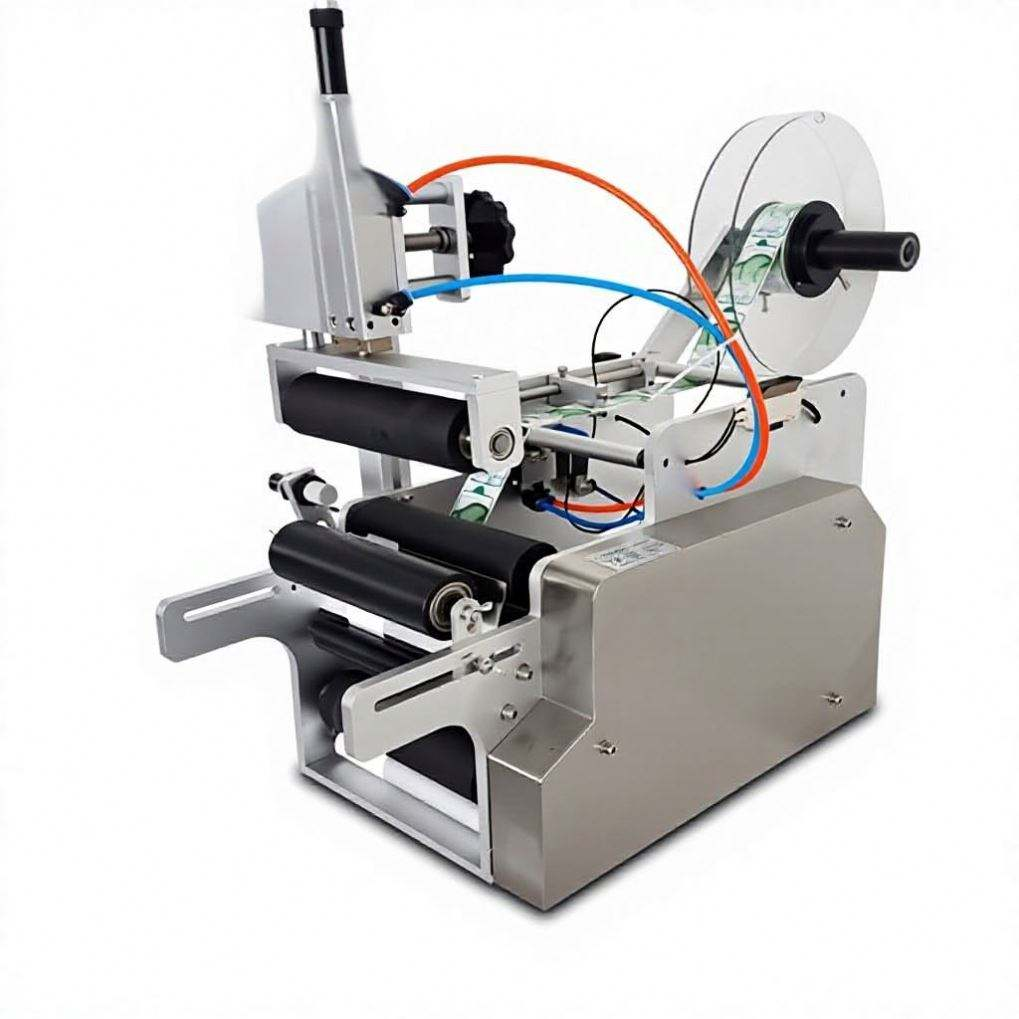

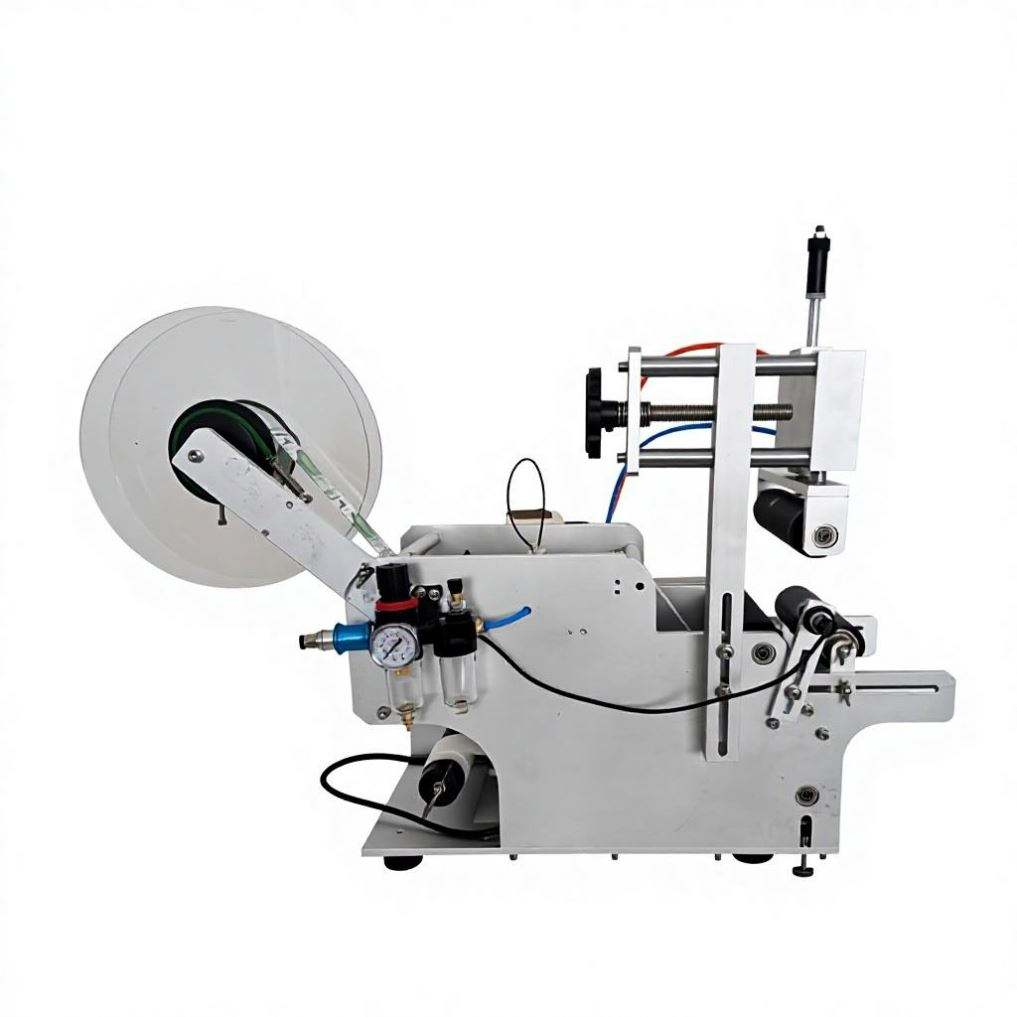

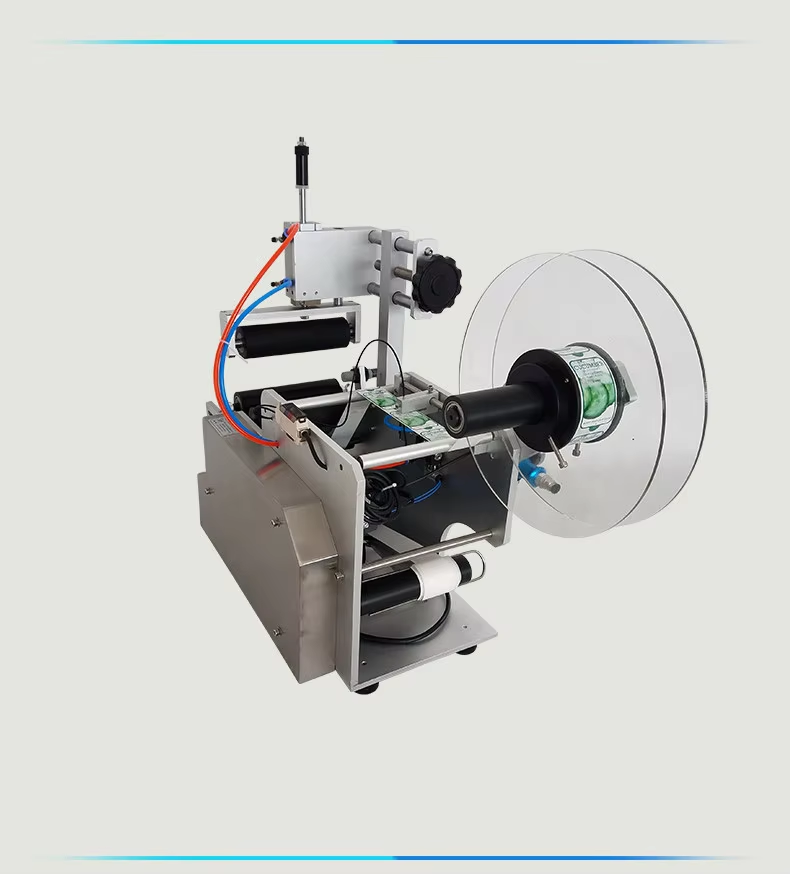

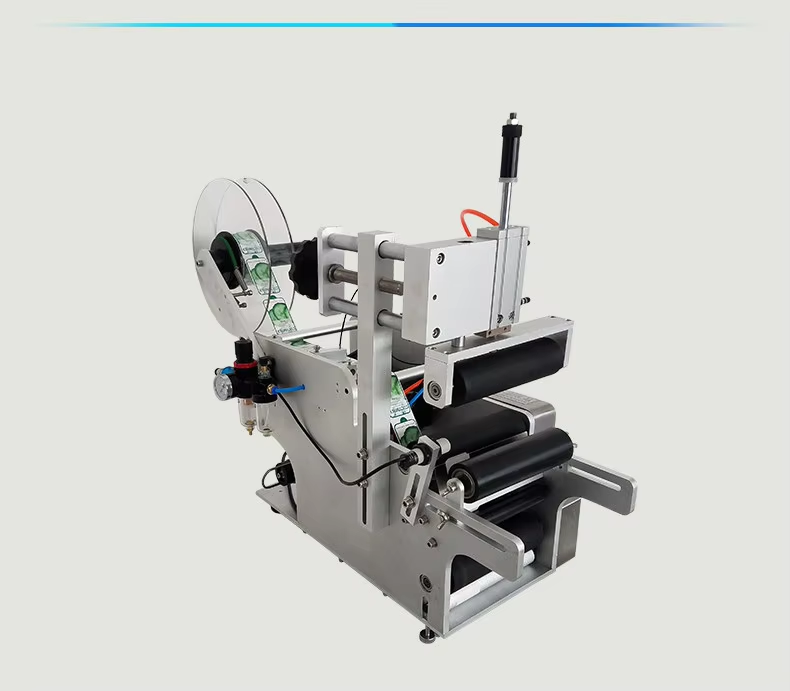

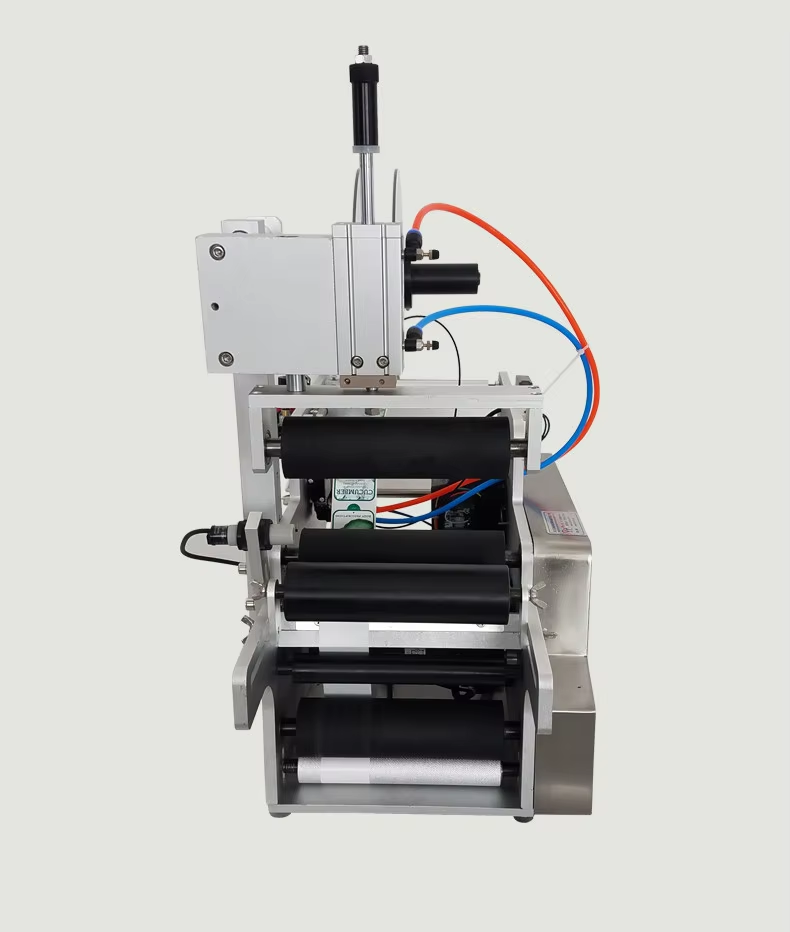

LT-80 Pneumatic semi-Automatic Round Bottle Labeling Machine
Product Description Application:
This is an LT-80 pneumatic semi-automatic cylindrical bottle labeling machine, specifically designed for the food, pharmaceutical, personal care, and beverage industries. It is suitable for applying self-adhesive labels to cylindrical containers such as glass bottles, plastic bottles, and metal cans. The machine utilizes PLC program control and a fiber-optic sensor system, achieving labeling accuracy of ±0.5 mm. It operates at a production capacity of 25–50 bottles per minute, supports bottle diameters of 15–120 mm and label widths of 20–150 mm, and is compatible with both wrap-around and position-based labeling modes.
The equipment features a compact design, small footprint, and portability. It is equipped with fault shutdown and production counting functions to ensure production safety and data traceability; label tension and position can be freely adjusted via mechanical controls to accommodate different label materials and bottle shapes. Widely used in production lines for condiments, pet food, and instant beverage products, it is a core piece of equipment for enhancing packaging aesthetics and transportation safety.
Product discription;
1, Small structure takes up less space and easy to move and load.
2, Good labeling precision and stability; Neat, no wrinkle, no bubble.
3,It has powerful function. It can achieve circumferential position labeling and non-position labeling easily.
4,It satisfy the circumferential position labeling and non-position labeling on diameter between 15-120mm bottles.
5, It is easy to use and adjust. The new workers can use or adjust it easily after simple training.
6,Conveyer parts are completely covered to avoid the abnormal conditions which make the use safer.

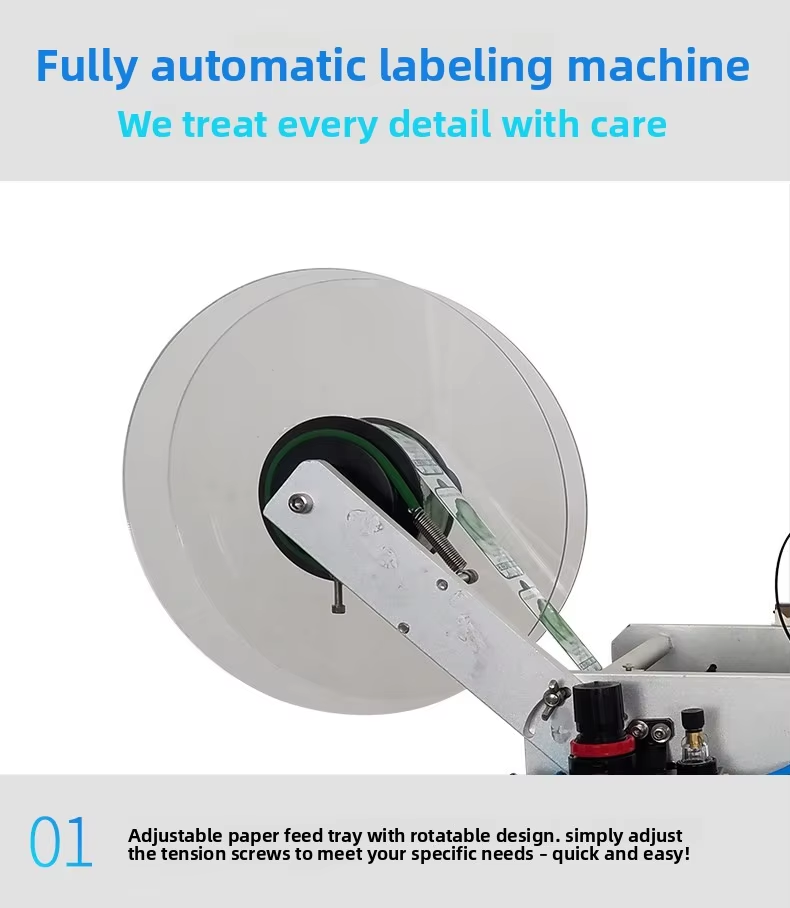

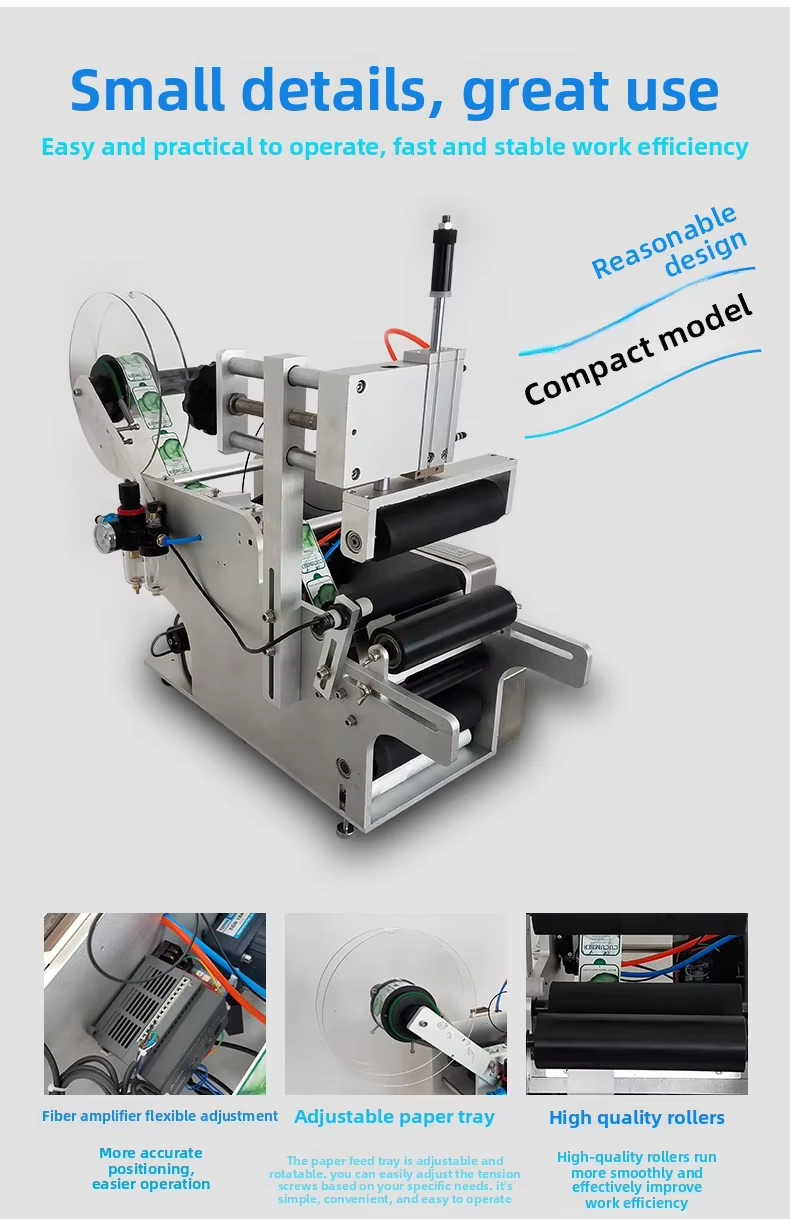

7, The clever design which allow user to mechanically adjust some structure combination and label winding, makes it easy to adjust the labeling position freely. All these make it easy to change products and wind labels.
8, Has 2 control methods: automatic and semi-automatic. Workers can choose either sensor control or feet step control for labeling according to reality.

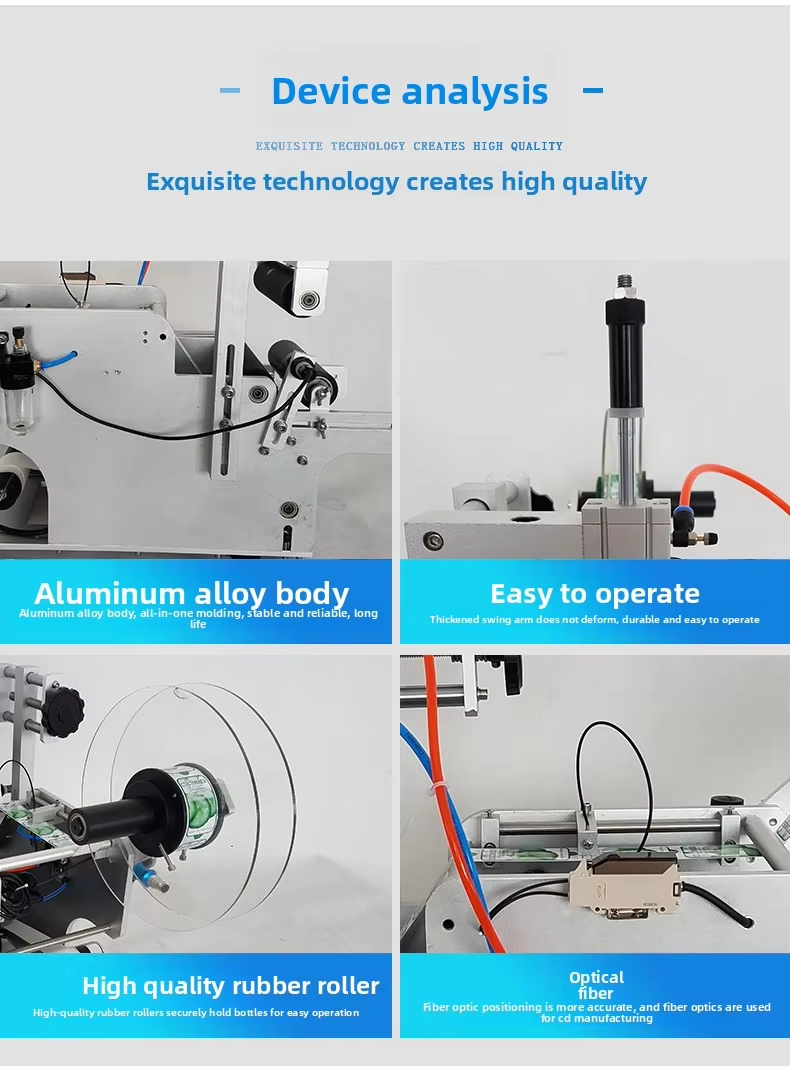

9, Whole equipment is mainly made of stainless steel and high level aluminum alloy. The whole structure is strong and harmonious.
10, Has fault stop function, production counting function.

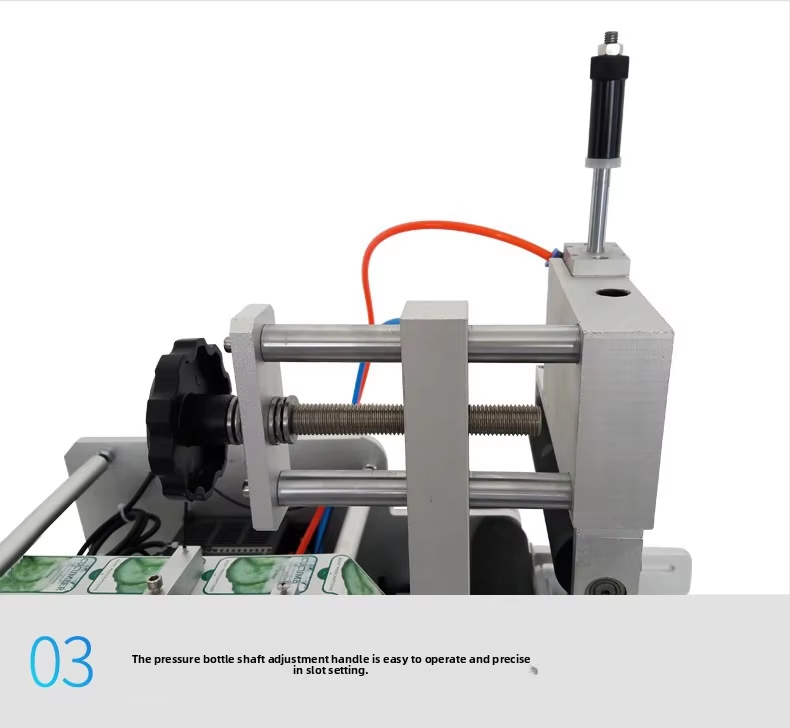

Mechanical principle: the PLC program control machine to start or stop, easy to operate under the pressure of the cylinder handle device ,adopt imported brand Otto Nicks fiber amplifier detection label stop signal, higher labeling precision. Universal object detection sensor. Ensure that the identification of 100%.
Technical parameters:
Model: LT-80 Pneumatic round bottle label machine
Labeling precision less than ±0.5mm
Efficiency 25-50 piece/minutes
The size of work-piece 15-120 mm in diameter
Label width 20-150 mm
Label length 20-350 mm
Program control PLC
Checking method: fibre amplifier
Power supply 220 V 50 HZ or 110V*60HZ

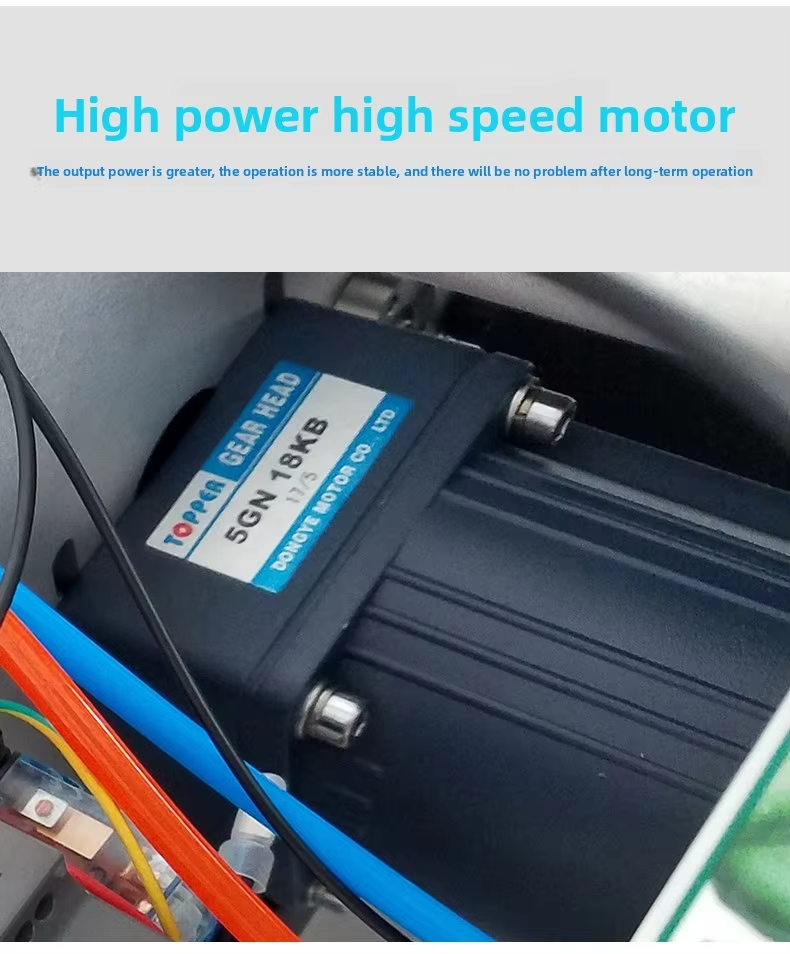

The motor power 120 w
machine size 850 x 380 x 640 mm
weight 35KG
