Product Description

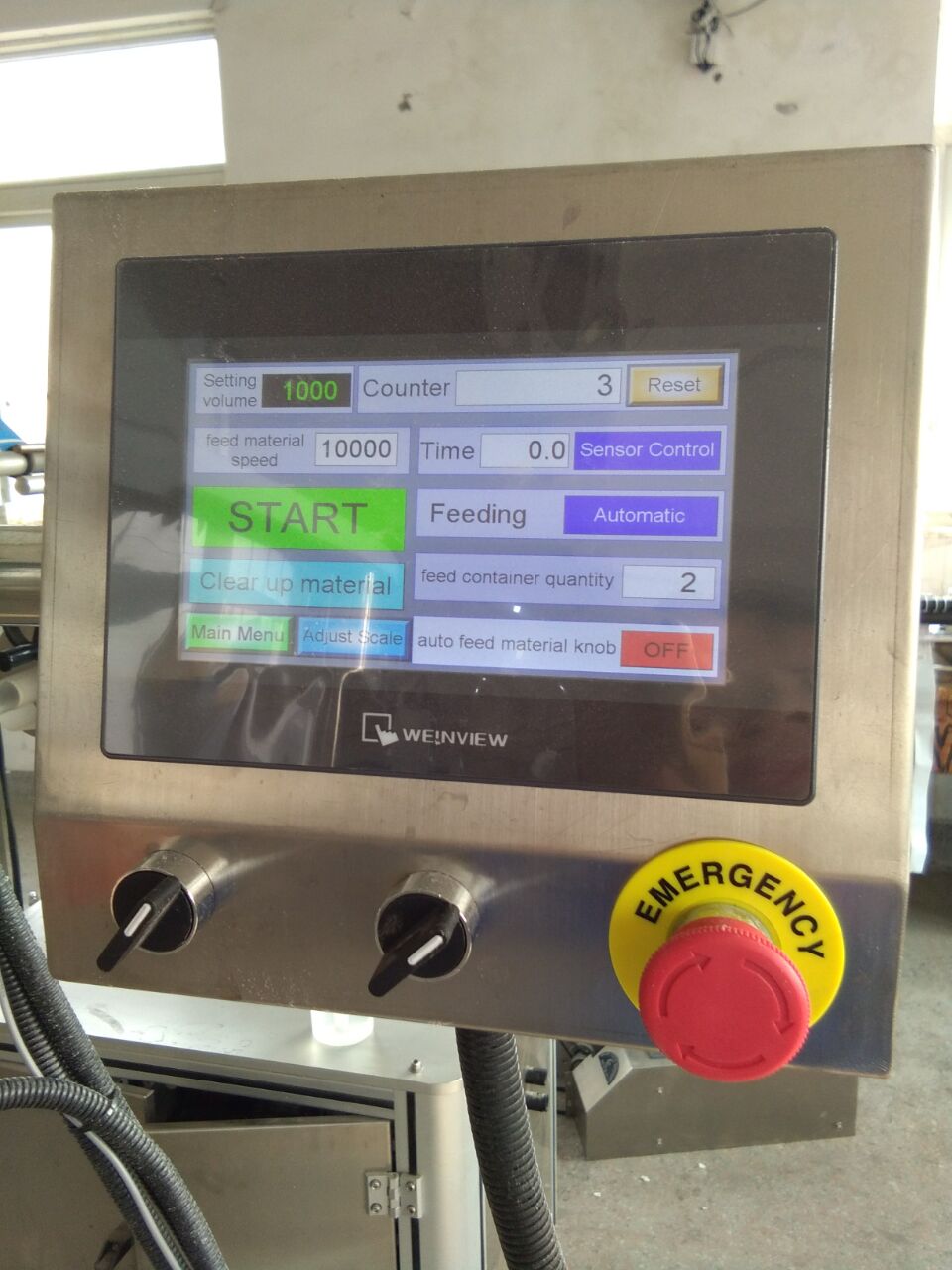

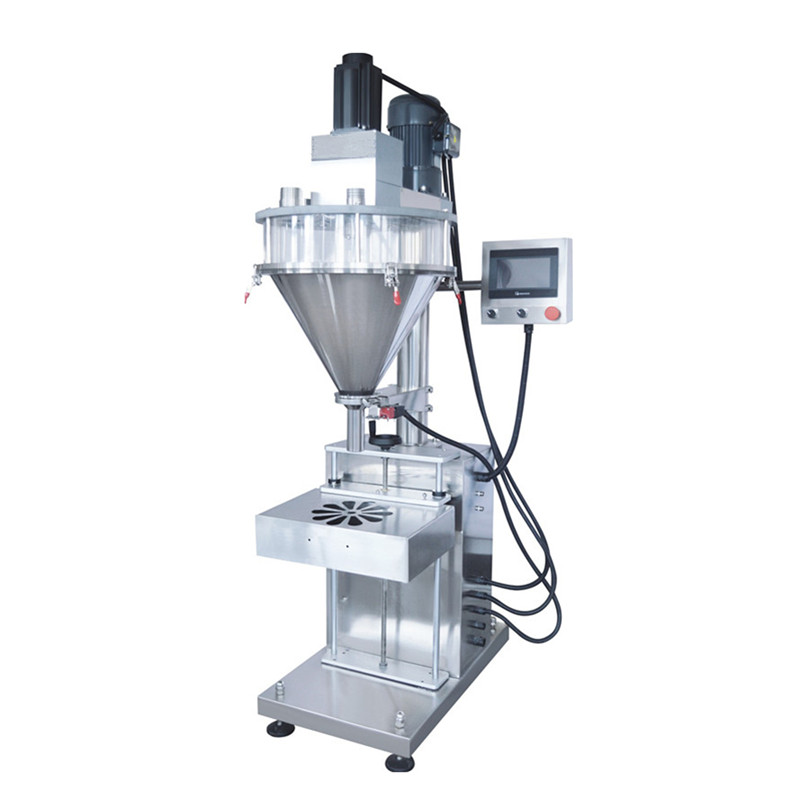

Touch screen operation powder Auger Filler

Application:

This machine is suitable for packaging fluidity Powdery product like milk powder, albumen powder, solid drink, white sugar, dextrose, coffee powder, rice powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff etc in bag,can,bottle package. Stainless steel design, in line with GMP standard, It can do measuring and filling work.

The machine will automatically complete all packaging processes from feeding, measuring, filling, printing,finished bag, high precision ans efficiency without crash the material.

It is suitable to use in food :such as chemical, metal, pharmaceutical and other industries etc.

Can be combined with various types of vertical packaging machine

Characteristic of Touch screen Semi automatic powder auger filer:

1, With mechanical, electrical, optical, instrument in whole one, single-chip control, with functions of automatic quantitative, automatic filling, automatic adjustment of measurement errors and so on.

2, Speed quickily: use The spiral blanking, the light-control technology

3, High precision: use The stepper motor and electronic weighing technology

4.5-5000g of materials may be on the same quantitative packing machine continuously adjustable, by adjusting the electronic keyboard and different models of blanking screw

5, Applicable to a wide range: a certain fluidity of powder-like, granular material all can be packed.

6, Suitable for bags, cans category, Bottles and other containers powder Packing

7,The error caused by the proportion of materials and materials level changed can be automatically tracked

8, Photoelectric switch control, only need manual set bags, pocket clean, easy to seal

9,The material contact parts are made of stainless steel production, easy to clean to prevent cross-contamination

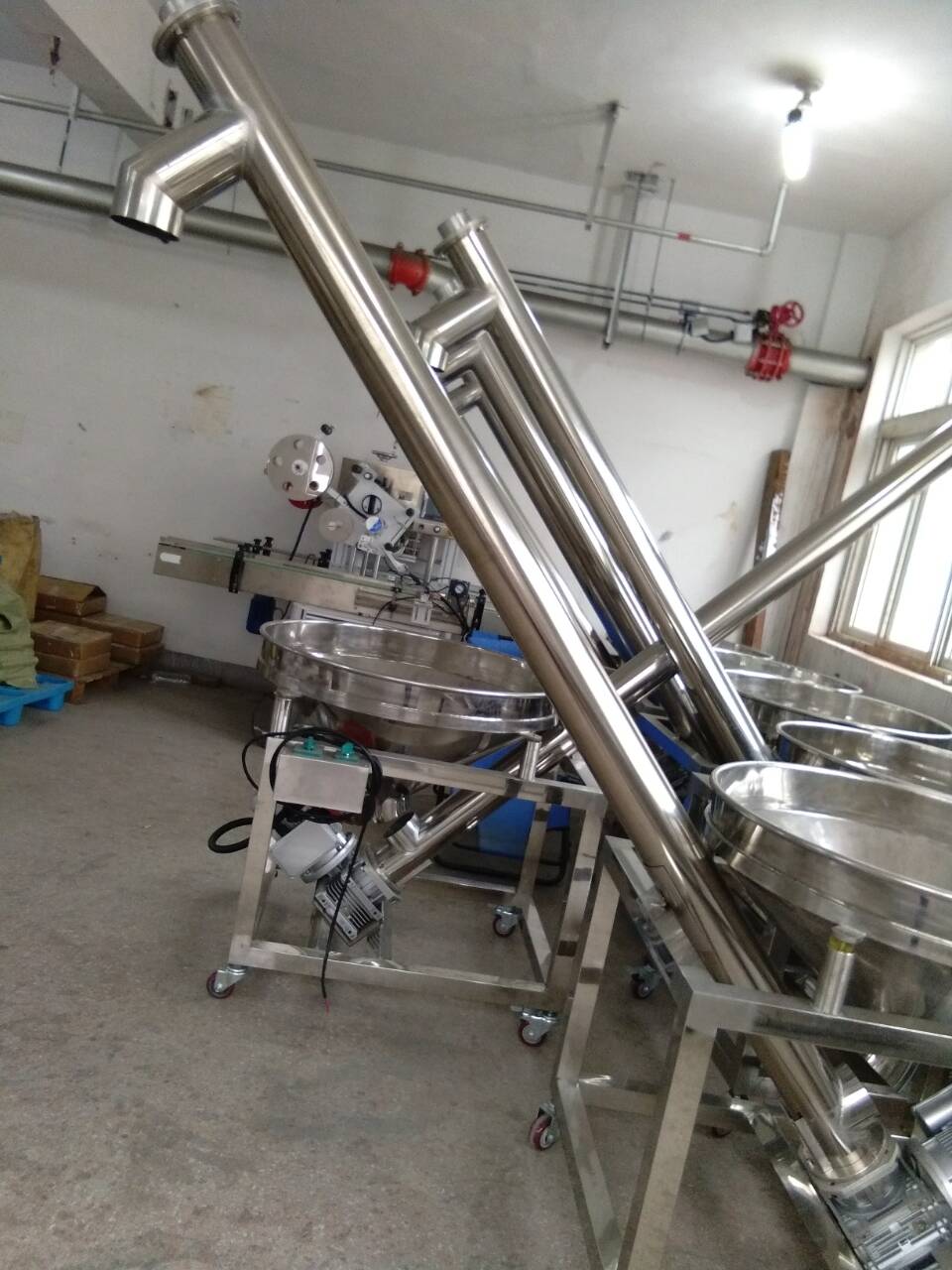

10, Can be configured with feed device,for uses more easier for users

Technical Specification of Touch screen Semi automatic powder auger filer:

	SM-50
Packaging Weight	5— 5000g (The Auger attachment is to be changed)
Metering Mode	Auger rotation filling traced by weighing feedback
Packaging Accuracy	Packaging weight ≤±0.3%-1%
Filling Rate	2 0-50packs/min
Power	1KW
Power Supply	220V/50Hz/60Hz
Total Weight	150KG
Overall Dimensions	960800850mm
Hopper Volume	30L

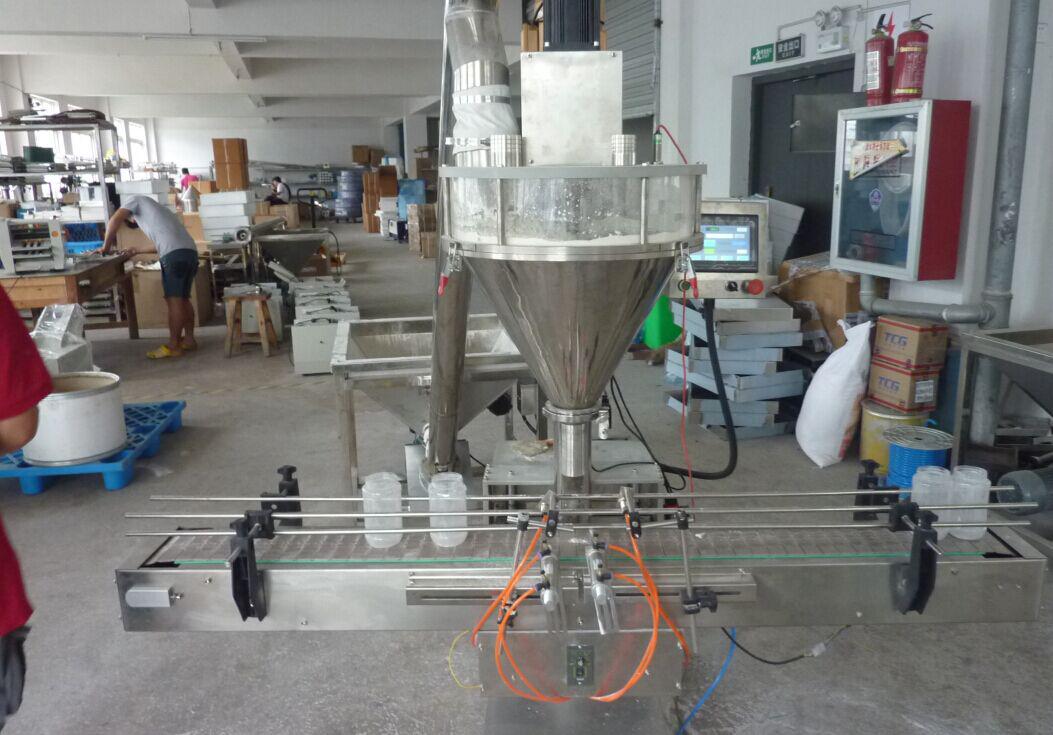

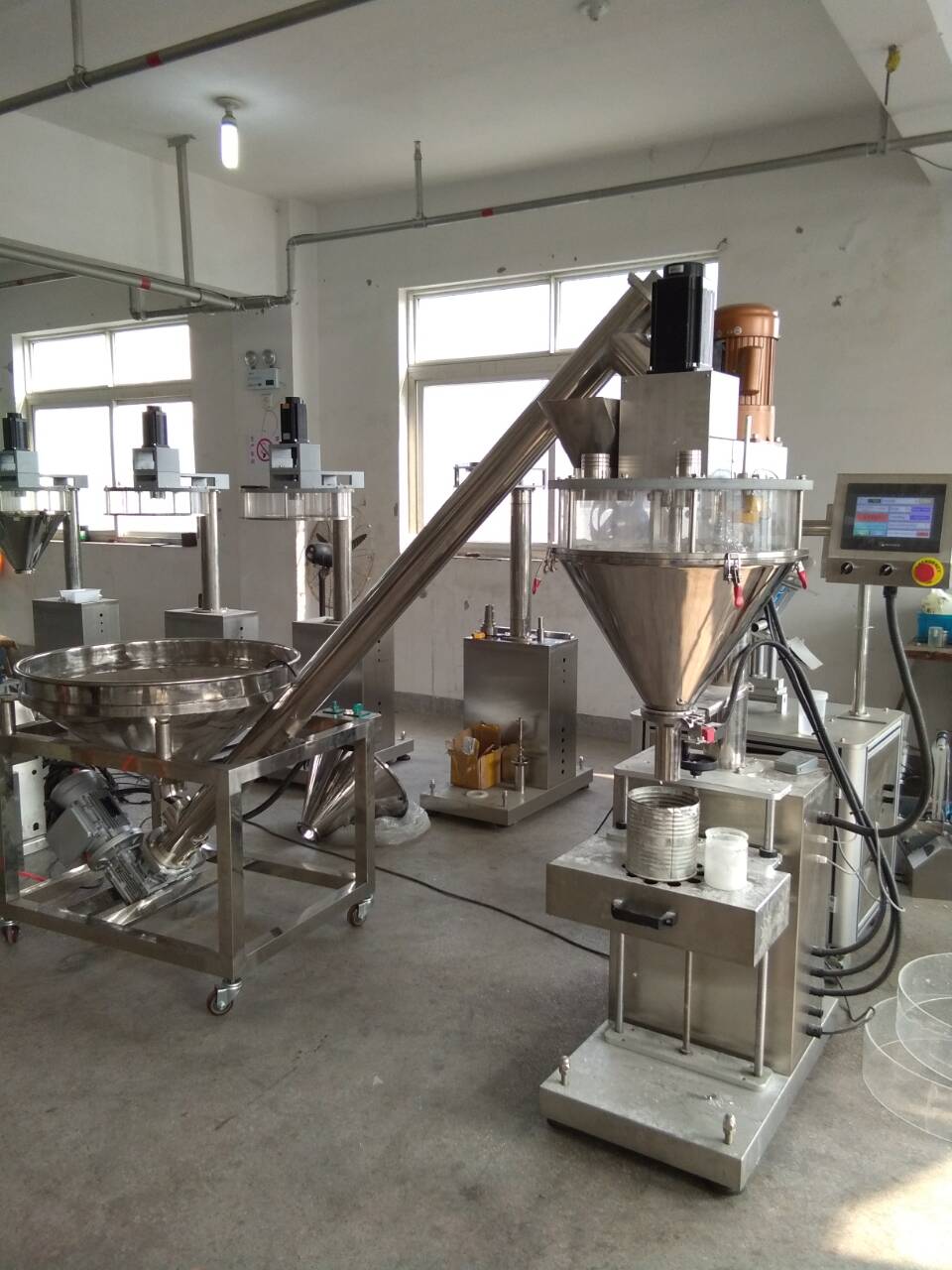

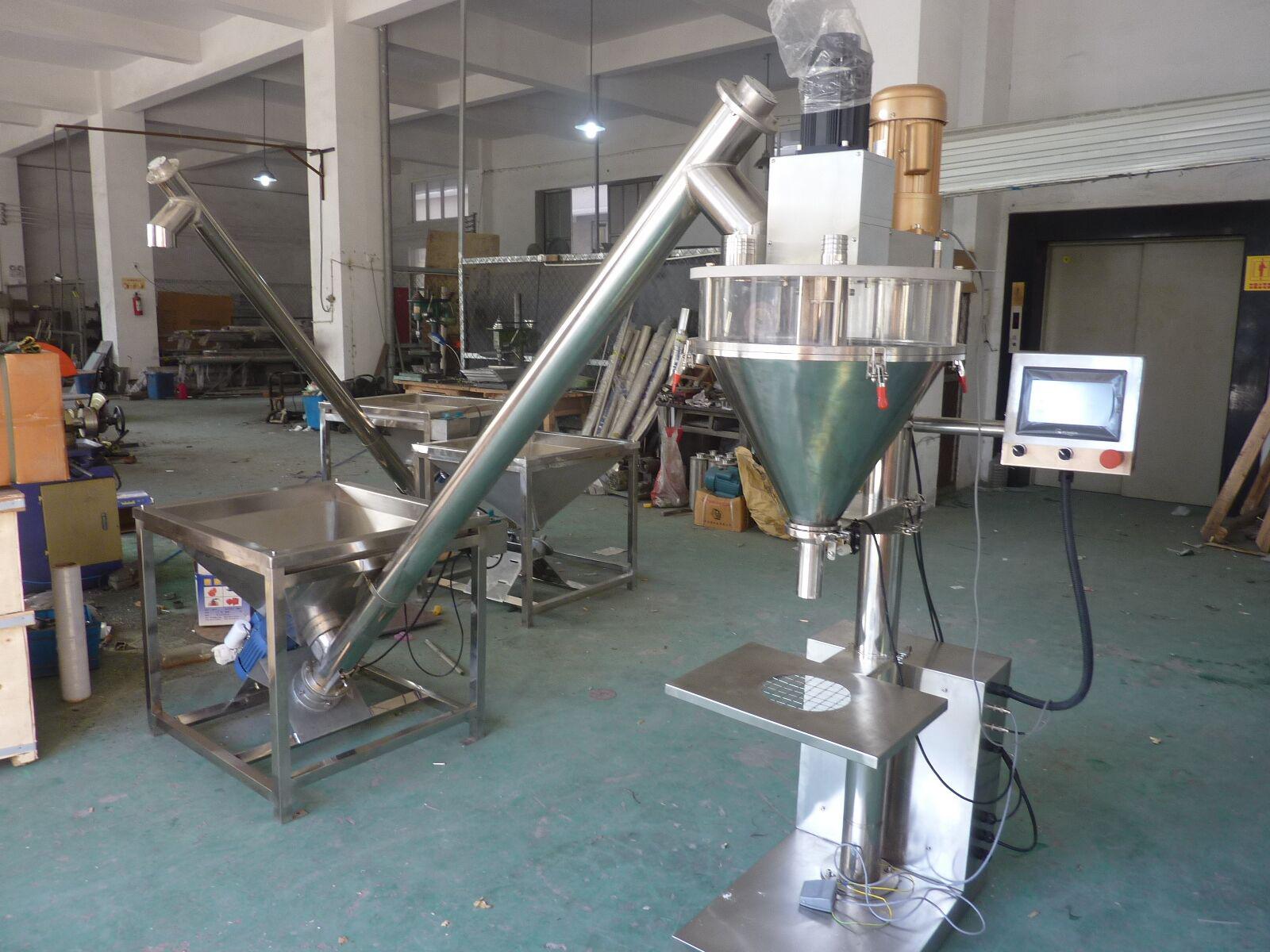

Machine display:

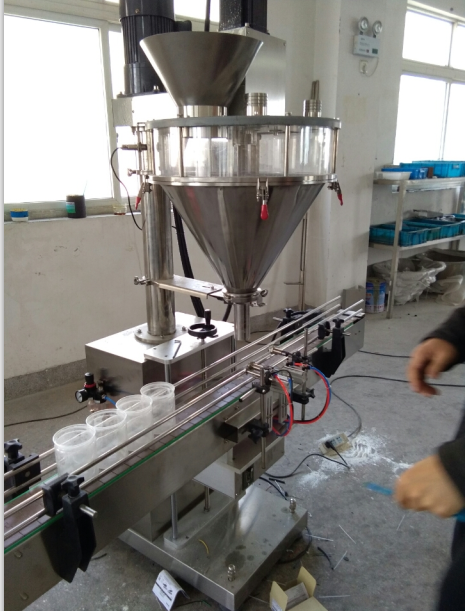

Filling material sample powder auger filler

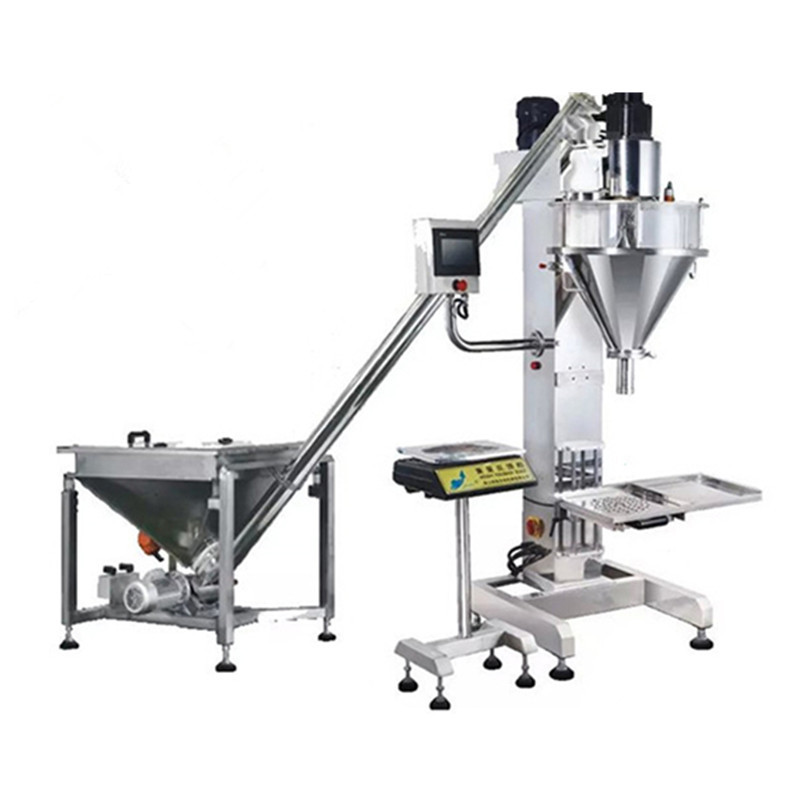

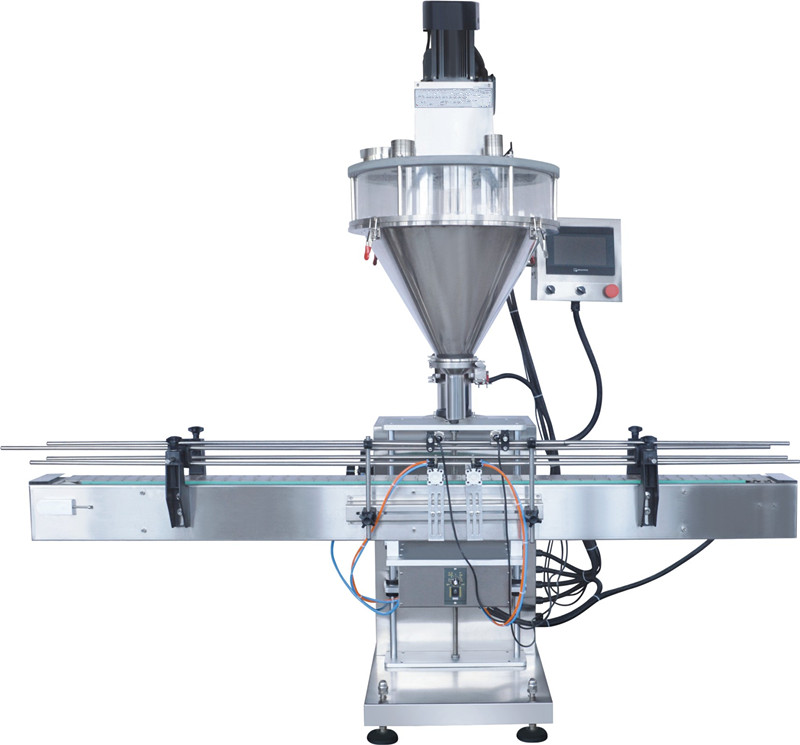

Luxiry type touch screen Semi-automatic powder auger filer

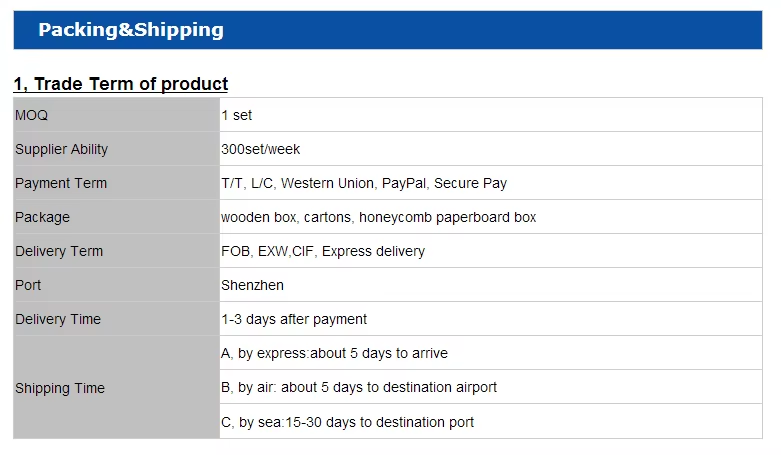

Packaging & Shipping

Payment Term:	T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:	export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:	1-3 days after payment
transportation:	by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:	A, by express:about 5 days to arrive shipping destination,door to door service
	B, by air: about 7 days to destination airport
	C, by sea:15-30 days to destination port

Our Services

1) Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any Non-artificial damage on them.

2) Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.

3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.

4) File Services: We offer instruction manual and video to teach you how to using and testing machine.

5) Accessories: We supply spare parts with competitive price after warranty time.
