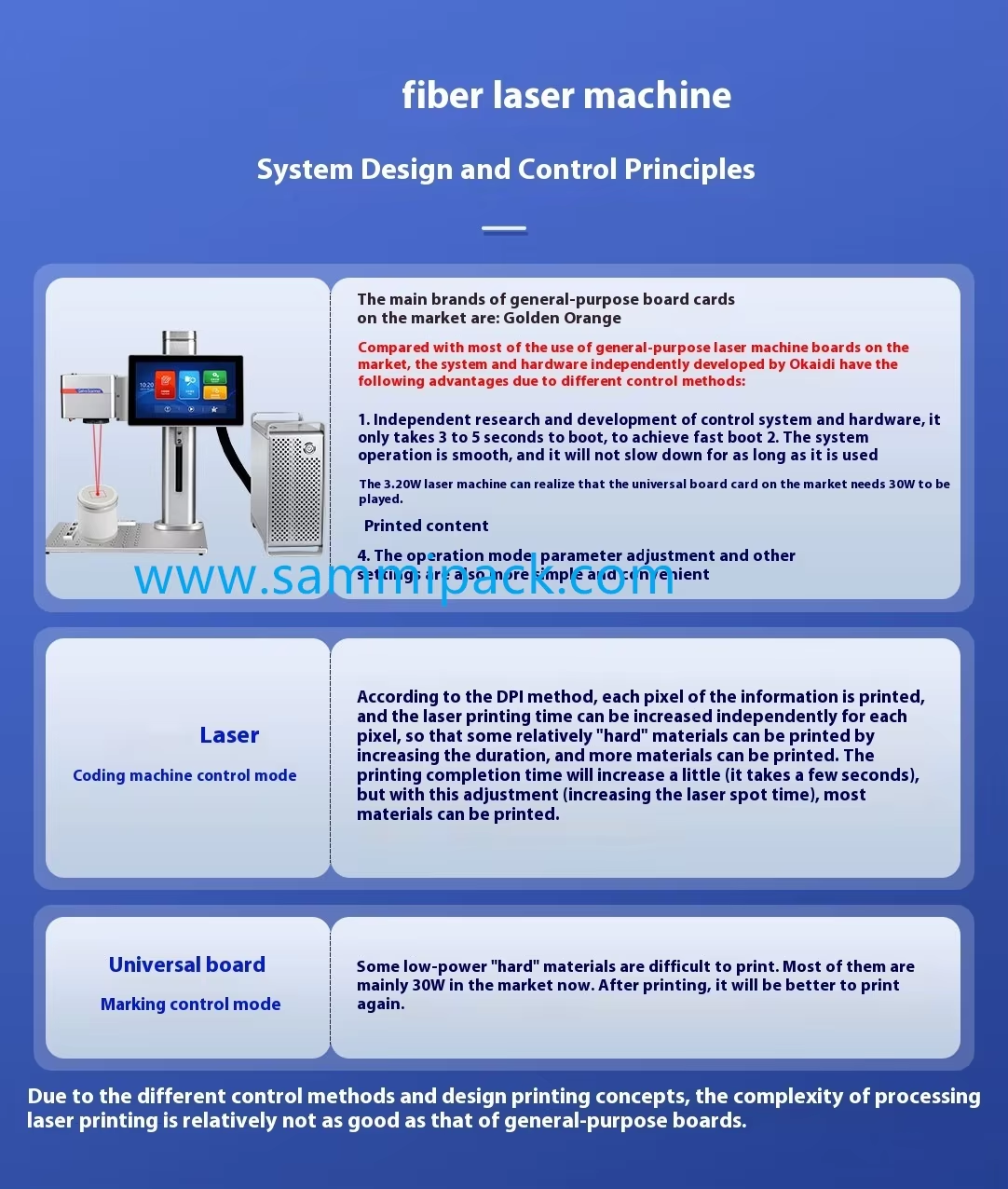

This desktop fiber laser marking machine is specifically designed to meet the marking needs of various industries and is suitable for permanent marking on a wide range of materials, including metal, plastic, wood, and cardboard. Equipped with a 10-inch high-definition touchscreen, the device allows for independent editing of text, barcodes, QR codes, and graphics without the need for a computer connection. It supports marking areas of 80×80 mm or 110×110 mm, offering both ease of operation and high precision. Its proprietary intelligent control system enables a quick startup in 3–5 seconds, and the 20W laser power is capable of marking most hard materials. Widely used in the food, electronics, pharmaceutical, and custom gift industries, it is an efficient tool for enhancing product traceability and brand recognition.

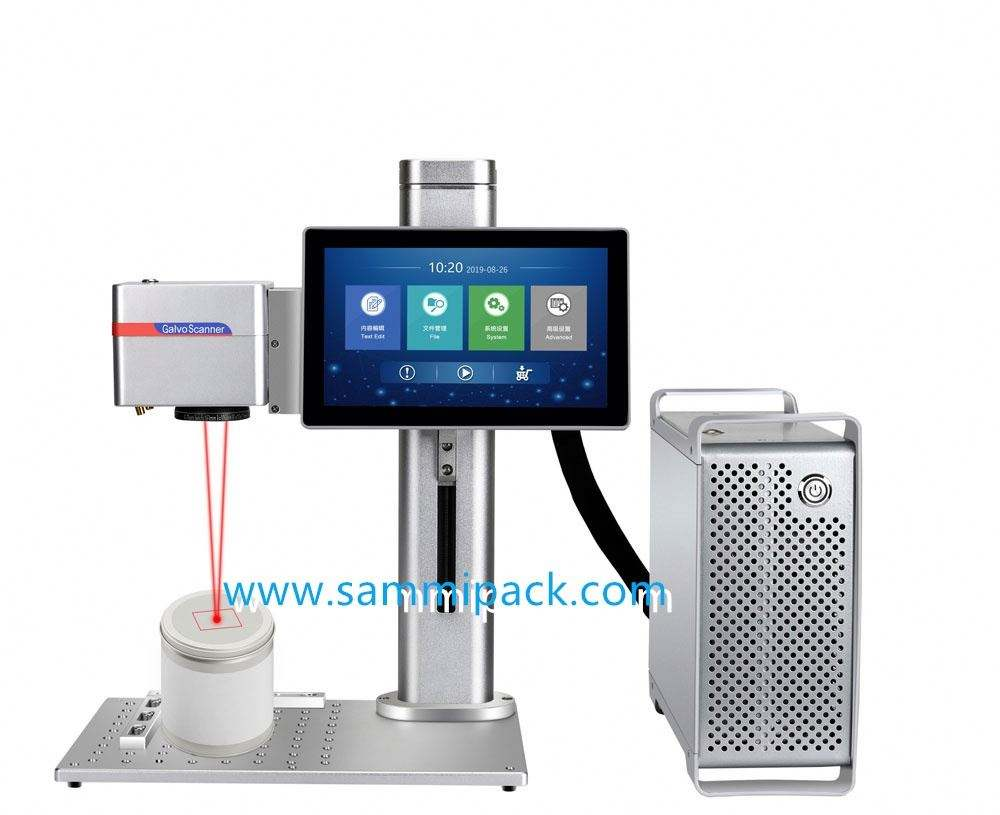

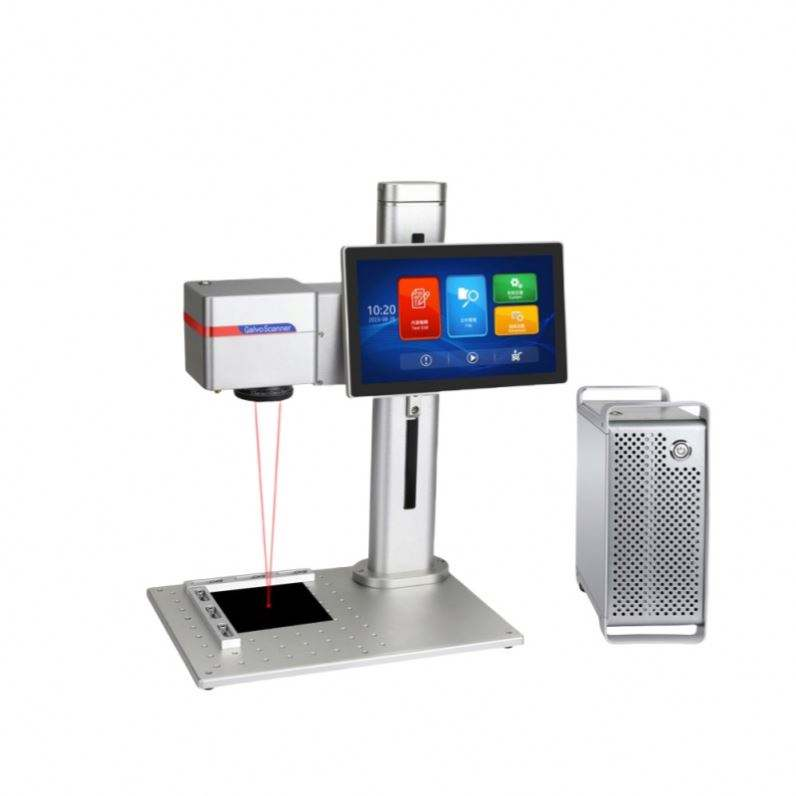

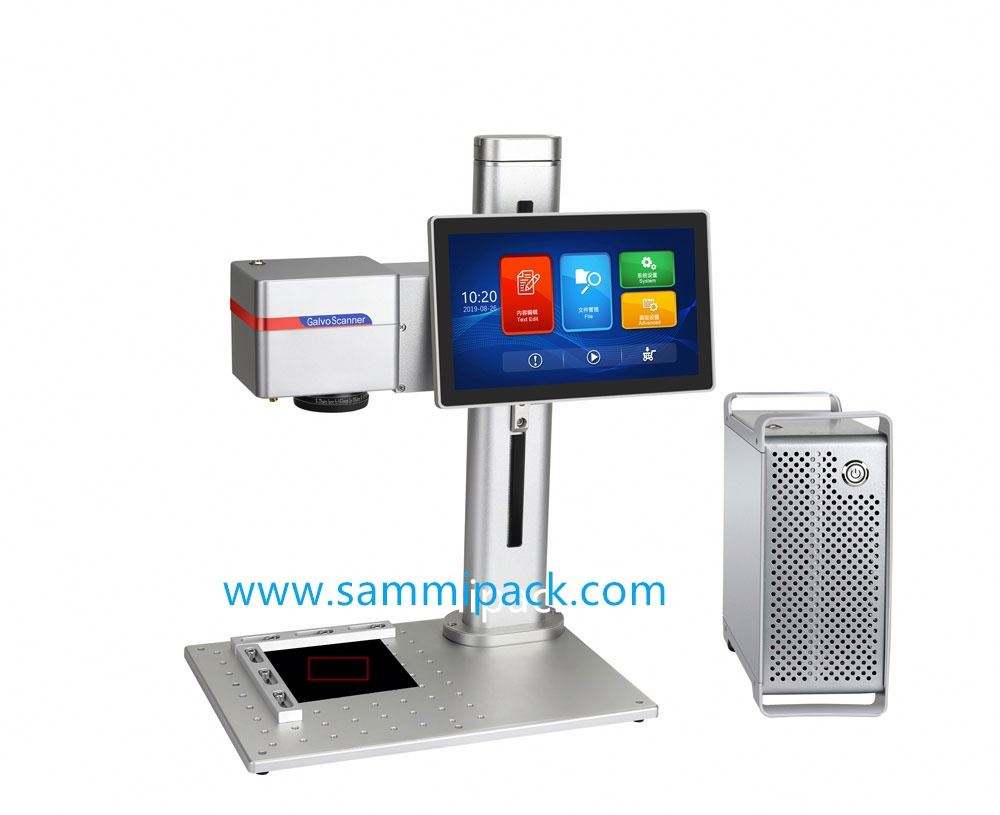

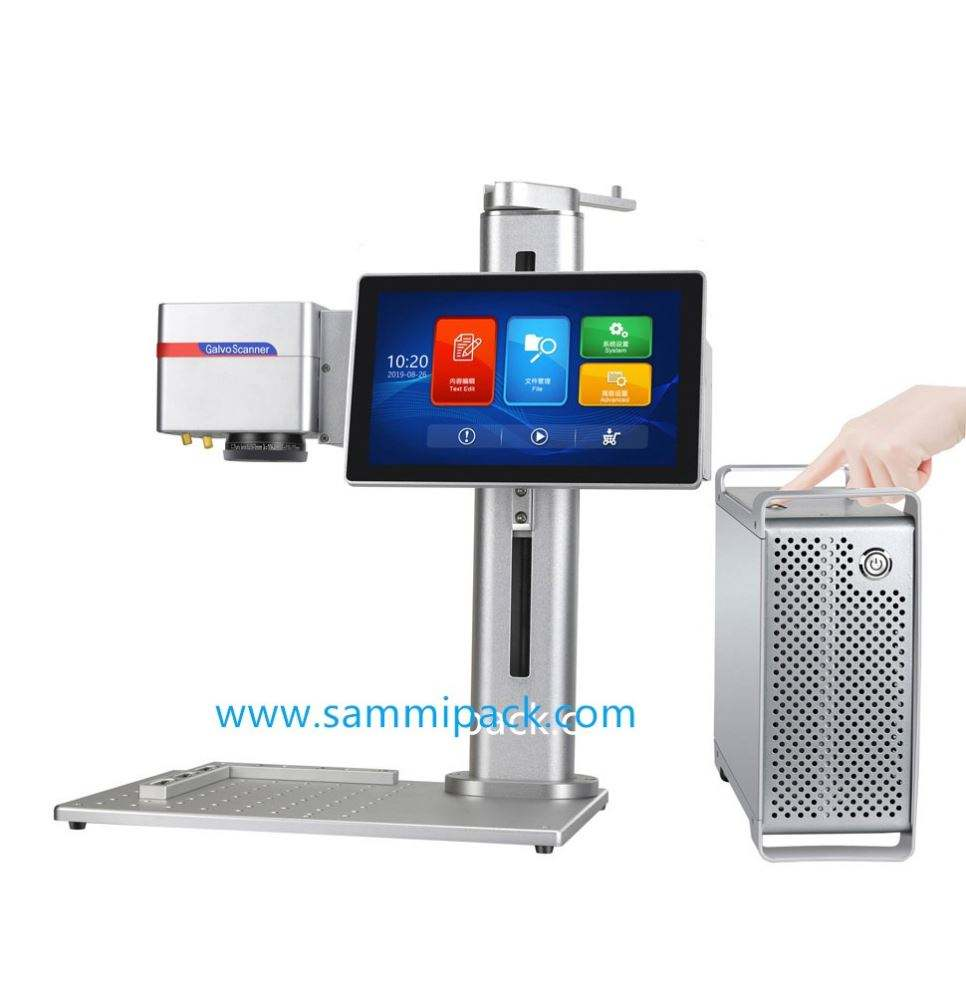

10 Inch Touch Screen desktop portable laser marking machine
Product Description

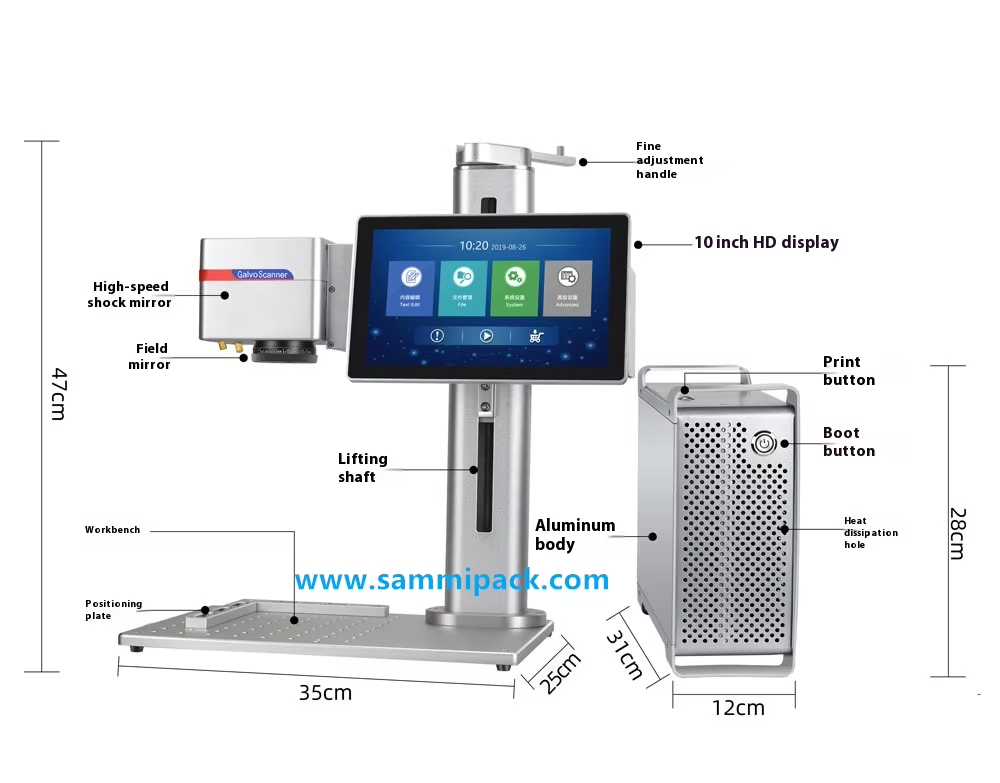

This is a desktop fiber laser marking machine. Its core configuration includes a 20W fiber laser, a GalvoScanner high-speed galvanometer system, and an industrial-grade field lens. With a marking wavelength of 1064±5 nm, it delivers high-precision, high-contrast markings. The device supports multiple coding formats, such as UPC, EAN, QR, and DataMatrix, and can incorporate variable counters, timestamps, and other functions to meet batch management and dynamic coding requirements.
The machine features an aluminum alloy structure with a working platform measuring 47 × 37 × 25 cm and a main unit measuring 28 × 31 × 12 cm, making it compact and easy to move and deploy. It offers a wide range of communication interfaces, including standard USB and RS232 ports, with optional network ports and Wi-Fi modules, enabling integration with systems such as MES and ERP. Suitable for a variety of materials including stainless steel, carbon steel, aluminum, PVC, ABS, cardboard boxes, circuit boards, and glass, it is widely used in mechanical manufacturing, electronic components, daily chemical packaging, food and beverage, medical devices, and personalized customization industries.
Specification:
item 20W Desktop fiber laser marking machine
Laser wavelength 80*80mm or 110X110mm
Touch screen 10inch HD touch screen
Laser wavelength 1064±5nm
Whole machine power 200w
Communication interface sensor, synchronizer, USB, RS232, network port (optional), WIFI (optional)
Supported QR code type QR,PDF417,DATAMATRIX ,GS1
Supported bar code type UPCA,UPCE,EAN13,EAN8,INT25,CODE39,CODE128,EAN128,GS1
Print material Surfaces of metal, stainless steel, carbon steel, alumina, aluminum alloy, copper, wood, cartons, building materials, electronics, packaging bags, plastics, etc.
Print content Text, barcode, QR code (change counters, time variables, etc. can be inserted), tables, pictures, counters, time and date (can be changed)
Language Support Chinese, English, Russian, French, German, Arabic, Spanish, Portuguese, Malay, Ukrainian ect..
Control way Buttons, foot pedals, sensors, network and WIFI remote control (optional function), RS232 (optional function)
Machine size working platform :47*37*25cm,Host chassis :28*31*12cm
