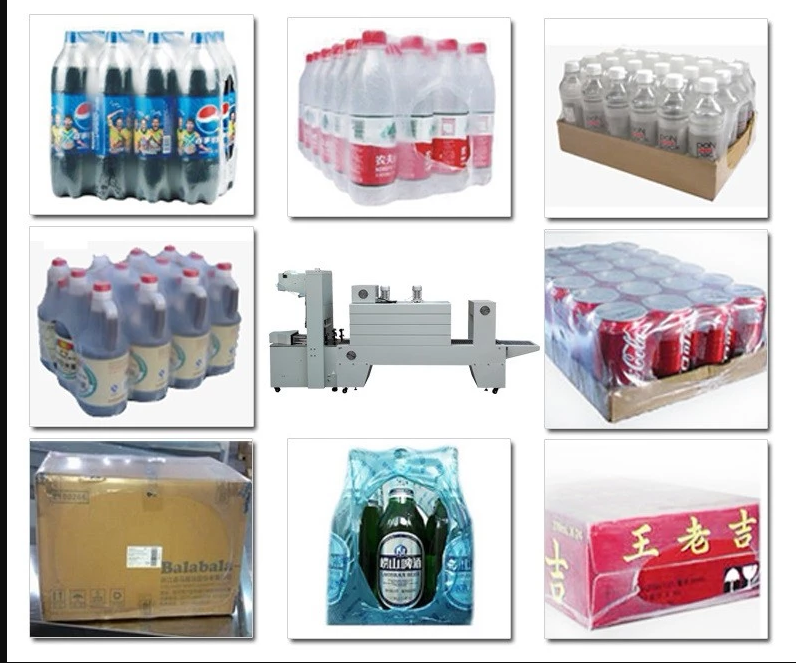

The BZJ5038 sleeve-type semi-automatic film wrapping machine, combined with the BSE-5040 PE heat shrink packaging machine, is specifically designed for the beverage, food, and personal care industries and is suitable for group packaging of bottled and canned products. The equipment utilizes core components based on German technology, ensuring stable operation. It supports a variety of shrink films, including PE, POF, PVC, and PP, with a maximum packaging size of 450 × 270 × 350 mm and a processing capacity of 120–360 units per hour. Its intelligent temperature control and dual-fan system ensure uniform shrinkage and excellent cooling and shaping results. Widely used in production lines for mineral water, beer, condiments, and other products, it is a reliable choice for enhancing packaging efficiency and visual quality.
BZJ5038 Sleeve wrapper and BSE-5040 PE shrink machine Product Description
This is a combined system consisting of a BZJ5038 sleeve-type semi-automatic film applicator and a BSE-5040 PE heat shrink packaging machine, specifically designed for the beverage, food, and personal care industries. It is suitable for group packaging of bottled and canned products. The equipment utilizes core components based on advanced German technology, ensuring stable operation. It supports a variety of shrink films, including PE, POF, PVC, and PP, with a maximum packaging size of 450 × 270 × 350 mm and a processing capacity of 120–360 units per hour.
The equipment is equipped with upper and lower electromagnetic switches to prevent accidental sealing, ensuring operator safety; an intelligent temperature control system and dual high-power fans ensure uniform oven temperature, delivering excellent shrink-forming results in a single pass; a high-power conveyor motor with stepless speed regulation ensures smooth product feeding. The equipment features a compact design, with a control panel integrating knobs and an emergency stop button, supporting parameter presetting and real-time monitoring to enhance production efficiency and consistency. Widely used in production lines for mineral water, beer, condiments, and other products, it is a core piece of equipment for enhancing packaging aesthetics and transport safety.
Characteristic:
1. Upper and down electromagnetic switch prevent sealing mistakes, and protect operator.
2. Every simply and easy to adjust machine to match different packing size.
3. Simple operation and maintenance with high packing efficiency.
4. 'Schneider' AC contractor, and Intelligent temperature controller performs stable.
5. Automatic alarm security system protects machine and operator.
6. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
7. Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
8. Super cooling system cools the packing and makes the figuration perfectly.
Specifications
Model BZJ-5038(Pneumatic) Model BSE-5040
Power supply 220V 50-60Hz 1.8KW Power supply220V 50-60HZ
Capacity 2-6pcs/minute
Heater power 20KW Adjuster
Sealing time/shrink time 0.5-1.5s, 0-0.6s Conveyer speed 0-10m/minute
Air source supply 170L/min 0.3-0.5 Mpa Tunnel size(L*W*H)1500*500*460MM
Film width Max. 550mm Conveyer loading 30KGS MAX.
Film thickness 0.04-0.12mm Shrink filmPE,POF,PVC,PP
Max. packing dimension(L*W*H) 450 x 270 x 350mm
Machine weight 470KG
Min. packing dimension(L*W*H) 250 x 60 x 60mm
Machine size 2500*820*1680MM
Machine size(L*W*H) 1020 x 830 x 1980mm
Packing size 1120*940*2000mm

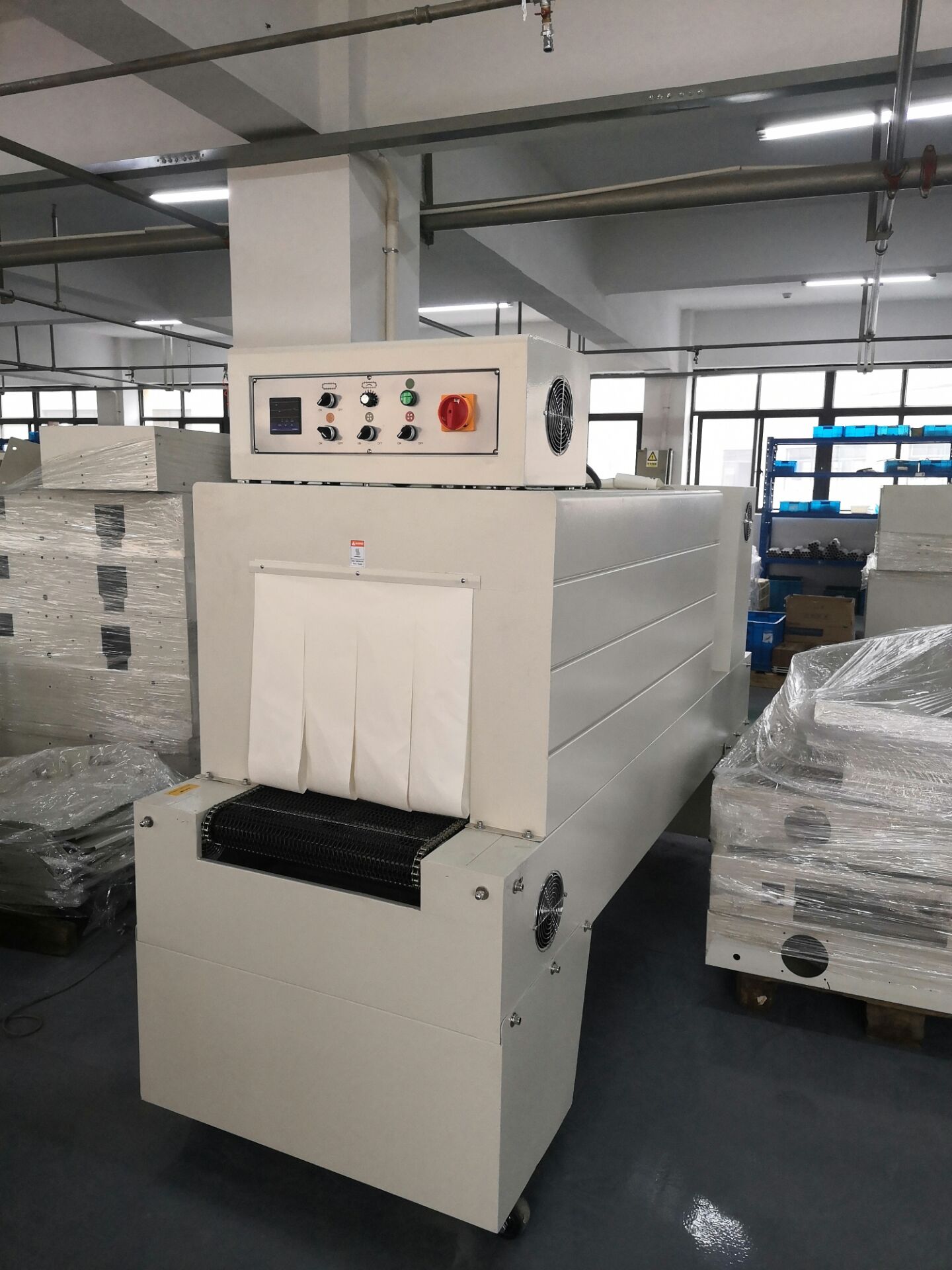

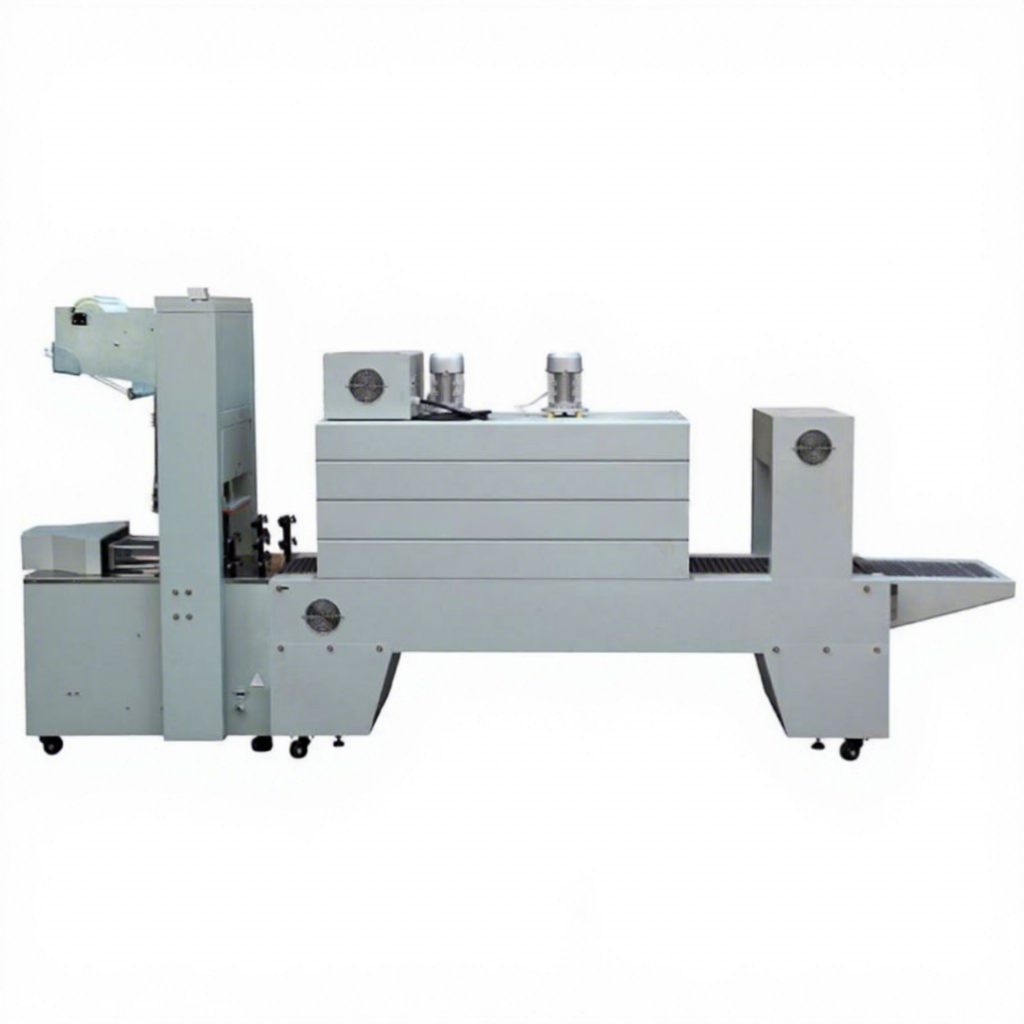

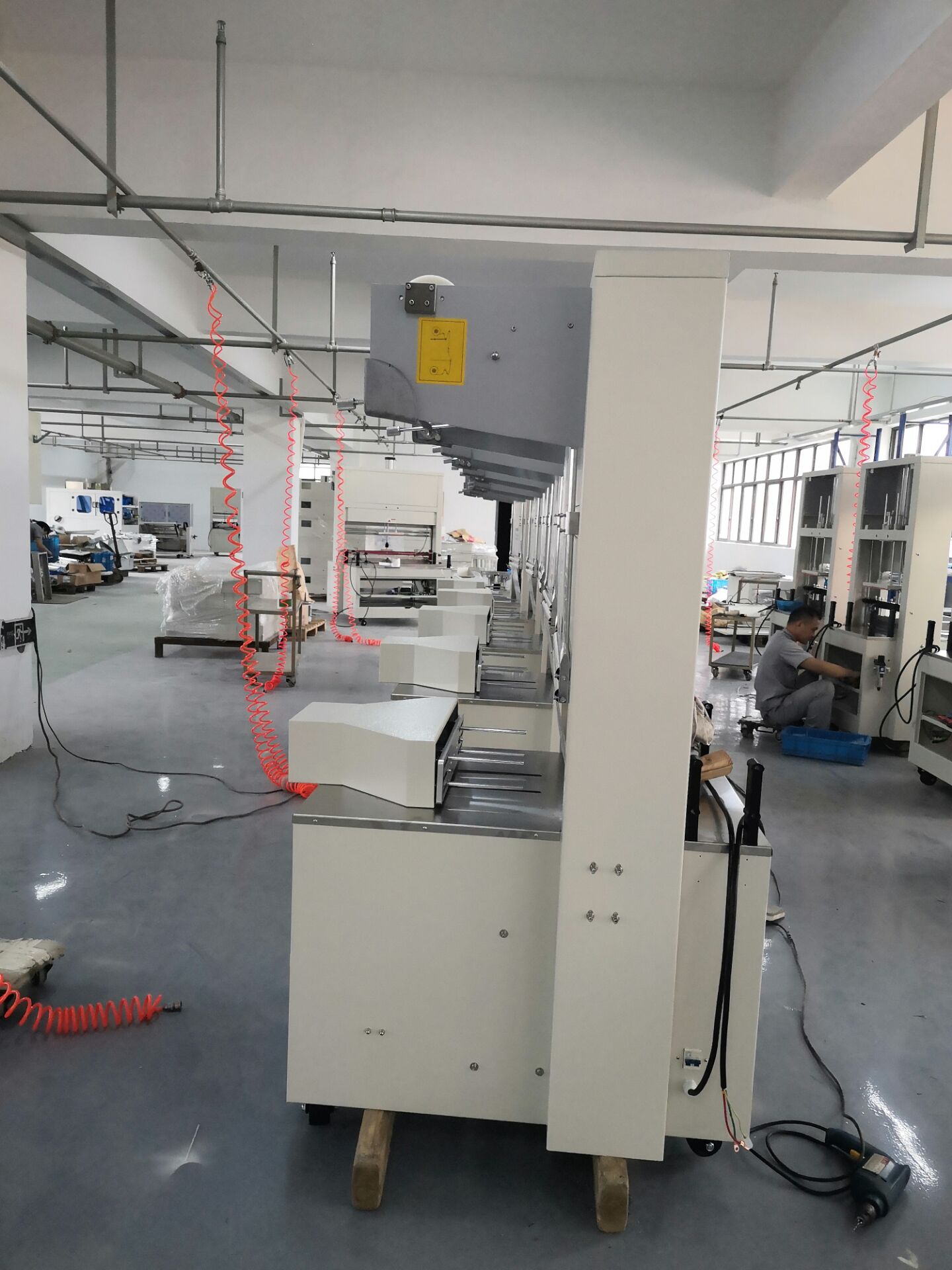

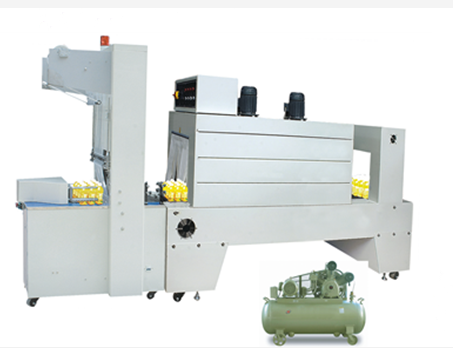

Product pictures
