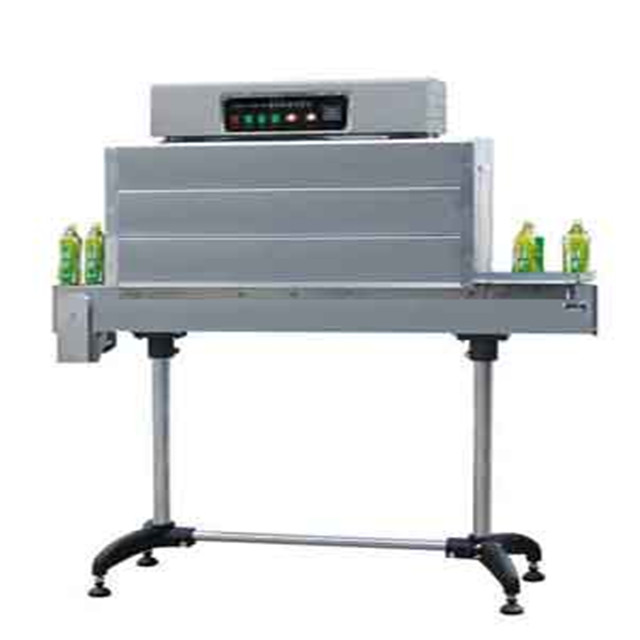

PVC Film Cap seal shrink packing machine shrink wrapper

Model:bs-1538c

PVC Film Cap seal shrink packing machine shrink wrapper are mainly reflected in intelligent operation, high packaging efficiency, reliable quality, and beautiful effects; Its market advantages are concentrated in cost savings, flexible packaging forms, and adaptability to the needs of multiple industries, especially demonstrating significant competitiveness in the promotion of beer, beverages, and other fields.

Send Inquiry

Product Description

Details:

PVC Film Cap seal shrink packing machine shrink wrapper Product Description

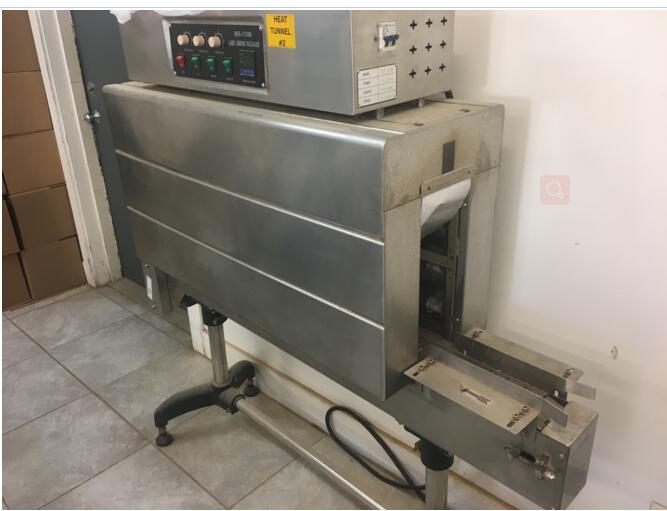

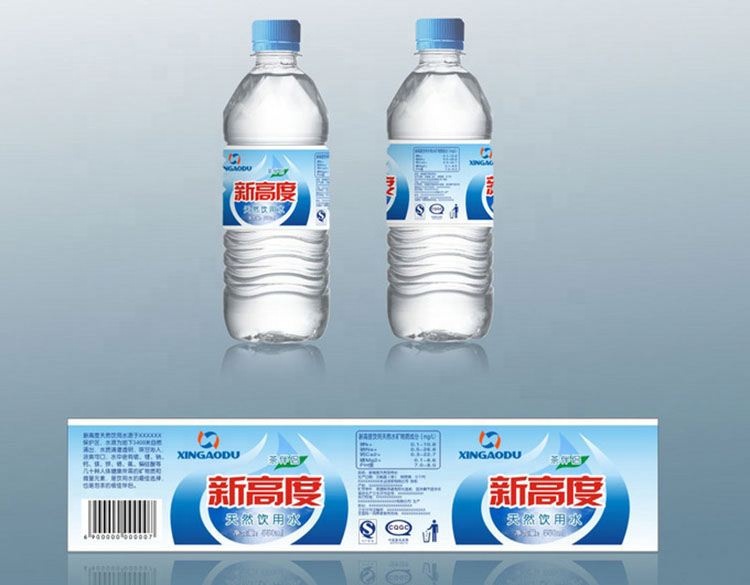

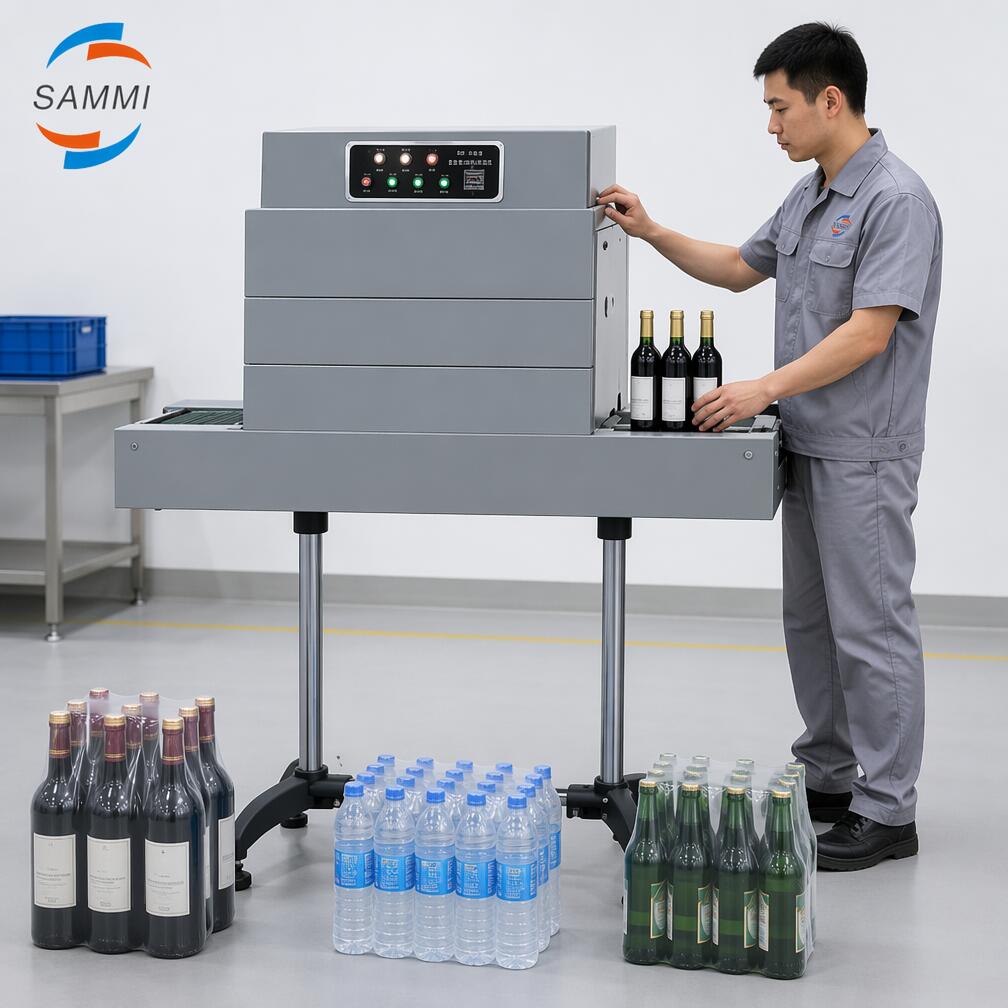

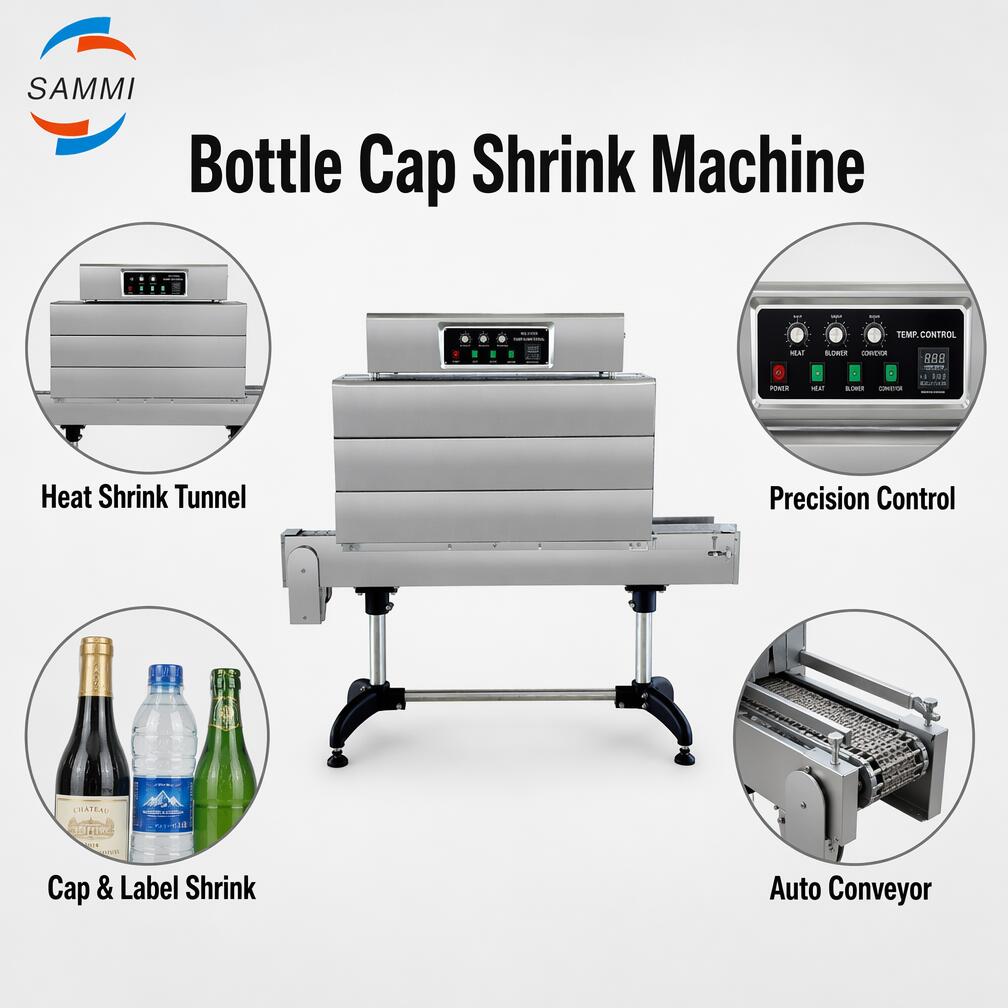

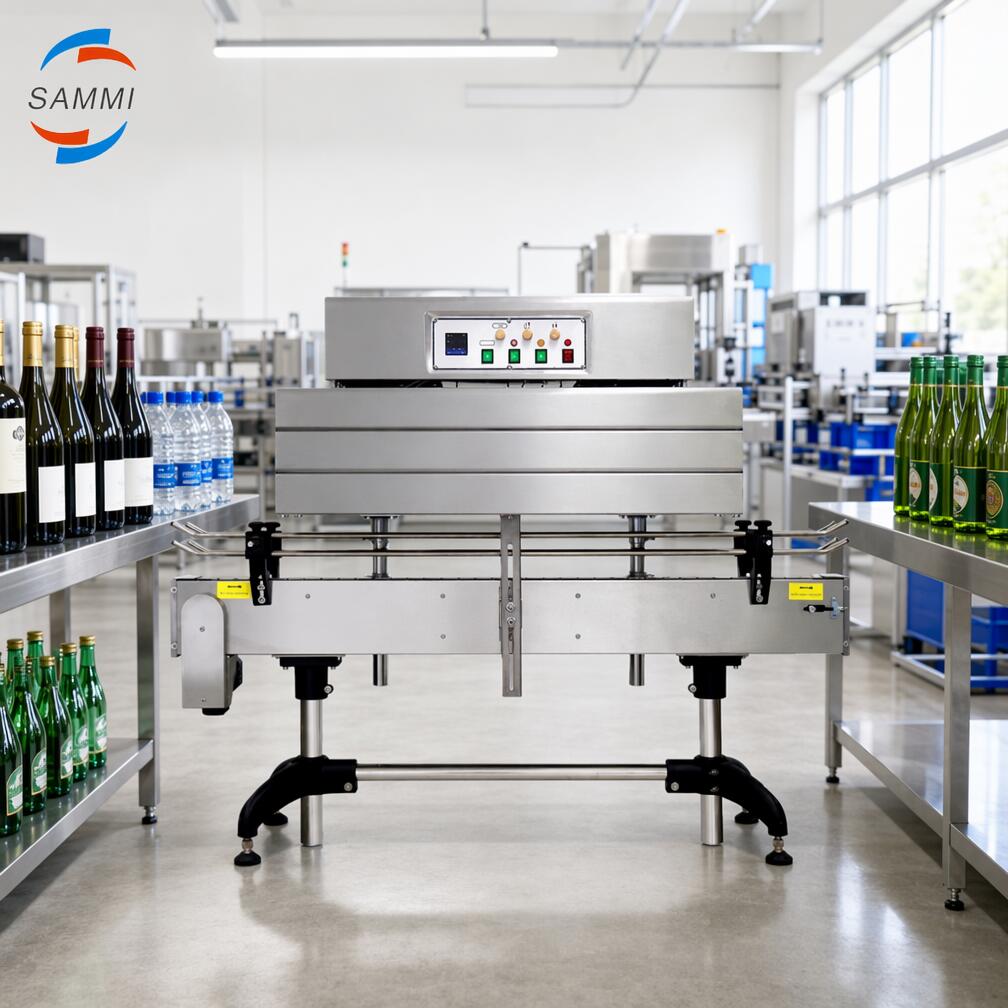

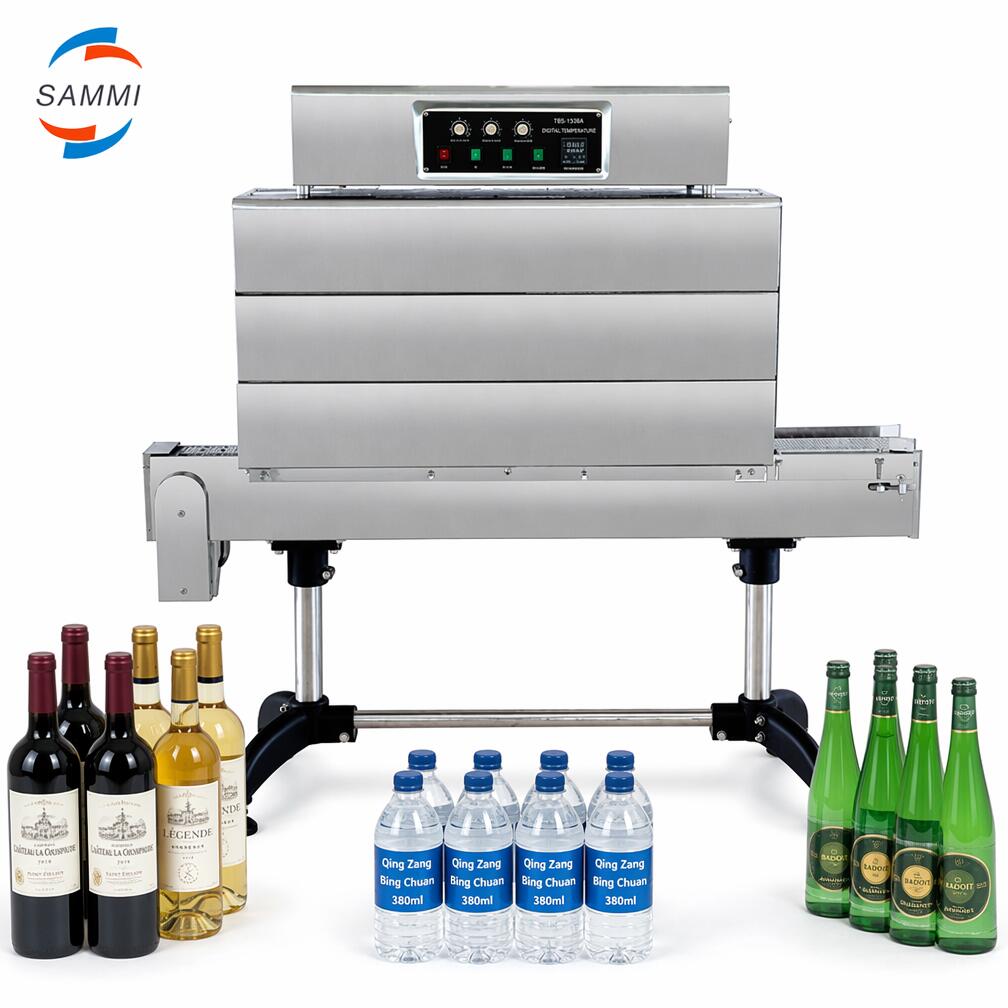

BSS series Pvc film cap seal shrinking machine are mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label either on the top, in the middle, at bottom of bottom or wrapping the whole bottle is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.
cap seal shrink machine is a device that packages items using the principle of shrinking. It mainly works by heating shrink film, causing it to tightly wrap around the surface of the item, thereby achieving the purposes of protecting, securing, and enhancing the appearance of the item. Although the working principle of the shrink machine seems simple, it actually involves knowledge from multiple fields such as materials science and thermodynamics.
-BSS-1538B and 1538D is to shrink label in whole bottle. B model has longer shrink tunnel than D model and has stainless steel conveyor.

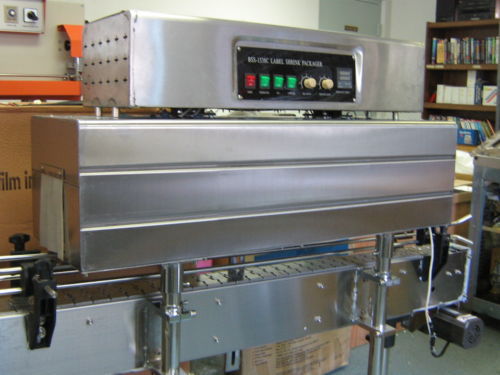

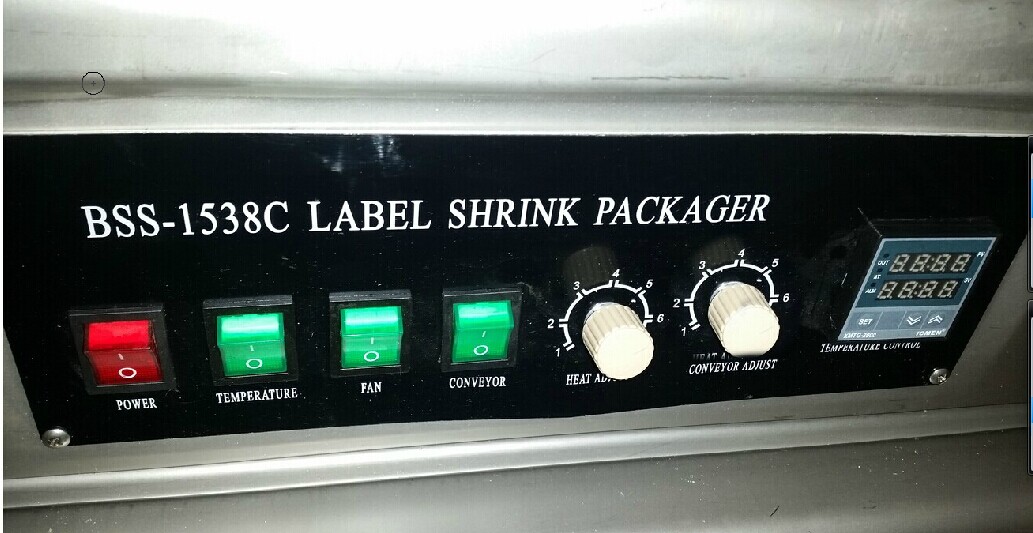

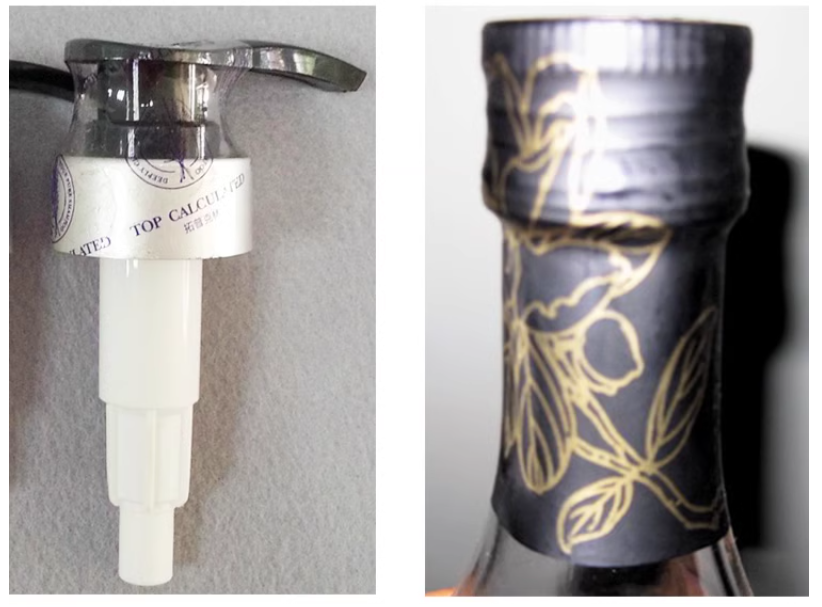

-BSS-1538C is to shrink label on the top of bottle. The height of shrink tunnel is adjustable.

Model	BSS-1538B	BSS -1538C	BSS-1538D
Power	9 KW	7 KW	8 KW
Max. packing size (mm)	*Φ 105350H**	*Φ 105350H Adjustable**	*Φ 160350H**

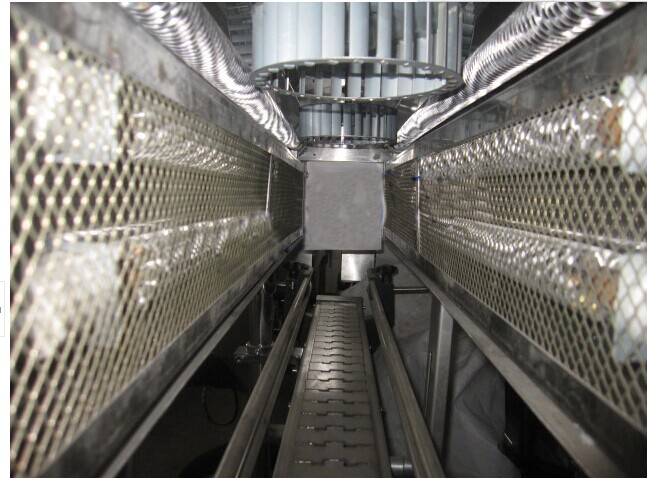

Size of shrink tunnel (mm)	*1000150380*	*1000150150*	*800200380*
Conveyor motor	AC90W/220V	AC90W/220V	DC50W/220V
Conveyor speed	0 -10m /min	0 -10m /min	0 -10m /min
Loading weight	15kg	15kg	15kg
Conveyor	812 S/S plate	812 S/S plate	Teflon net
Weight	96 kg	90 kg	66 kg
